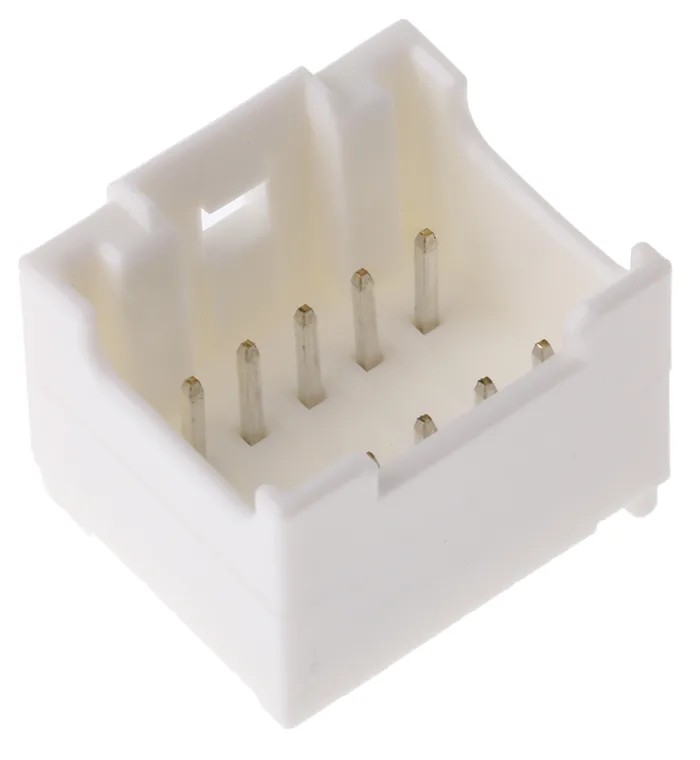

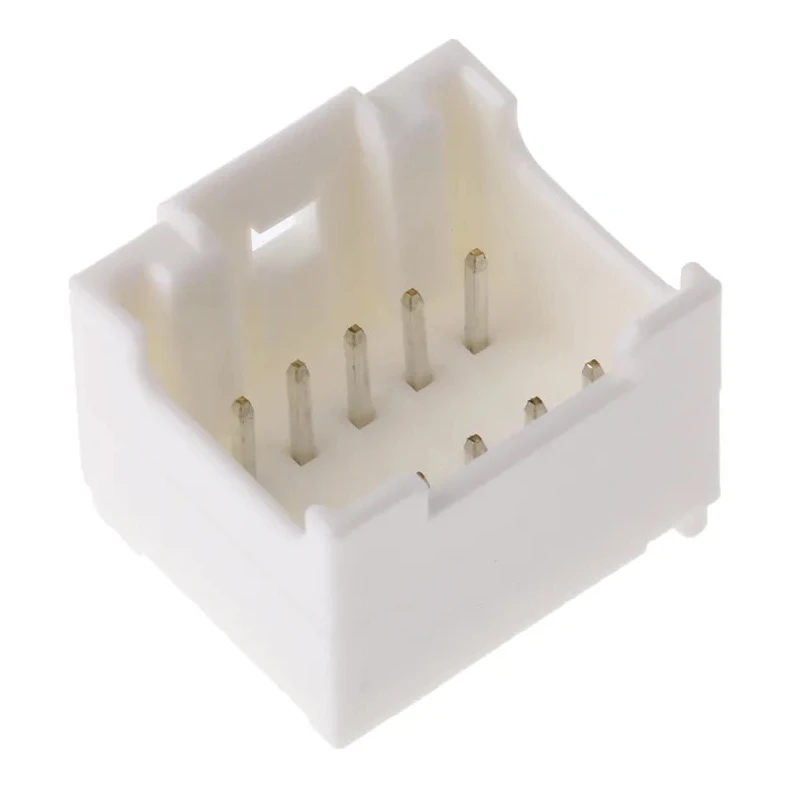

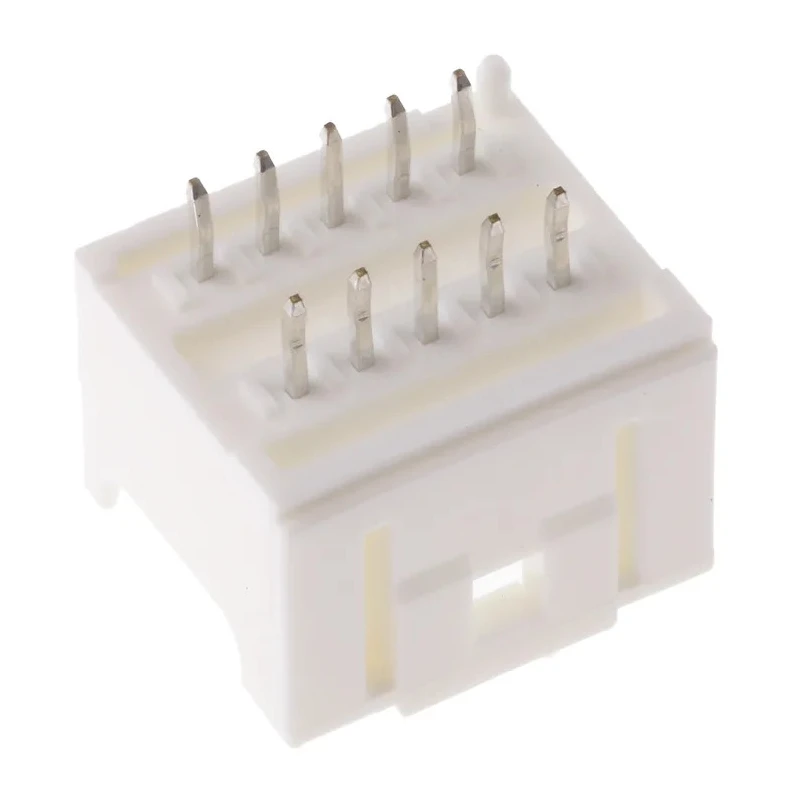

Molex MicroClasp Series Straight Surface PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded, 55917-1010
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Compact double row PCB header designed for wire-to-board connections.
- Features a 2 mm pitch for space-saving PCB layouts.
- Supports up to 3 A current and 250 V voltage for versatile power and signal applications.
- Constructed with polyester housing and brass contacts plated with tin to ensure durability and reliable electrical performance.
- Shrouded and straight orientation for secure mating and easy installation.
- Male contact gender with solder termination and surface mount for robust assembly.
- Operates within a wide temperature range, from -40°C to 105°C, suitable for demanding environments.
- Incorporates an inner positive lock and two-point contact design for secure retention and audible mating feedback.
Product Description
The Molex MicroClasp Series Straight Surface PCB Header, model 55917-1010, is a high-quality connector specifically engineered for compact wire-to-board applications on printed circuit boards. With its 2 mm pitch and double row format, it offers both space efficiency and reliable signal transmission for demanding electronic environments.
This header is equipped with 10 male contacts arranged in two rows, ensuring multi-line connectivity. It utilizes a shrouded housing, providing enhanced protection against misalignment and external mechanical impacts during mating and operation. The inner positive lock mechanism secures retention, delivering an audible click and reducing accidental disconnects.
With a rated current capacity of up to 3 A and a voltage rating of 250 V, this PCB header is suitable for both power and signal transmission across various industrial, commercial, and laboratory applications. The terminal system features a low insertion force, two-point contact design, and high-current capability, supporting robust and frequent connection cycles without degrading performance.
The polyester housing and brass contacts, finished with tin plating, enhance mechanical longevity and electrical reliability. Its surface mount configuration and solder termination enable direct, efficient installation onto PCB boards. In addition, the header operates across a wide temperature range from -40°C to 105°C, making it adaptable to challenging operating conditions such as process control, test instrumentation, automation panels, and electronics manufacturing environments.
Key features include PCB space savings, latch protection, secure mating, and terminal protection. The MicroClasp series is recognized for reducing PCB footprint while ensuring easy mating and unmating, minimizing maintenance and downtime. Applications span industrial control systems, signal routing, power management, commercial electronics, and laboratory PCB assemblies.
For further category exploration, browse additional Molex PCB Header and MicroClasp series products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of up to 3 A.
The voltage rating for this PCB header is 250 V.
The pitch size of this connector is 2 mm.
It features 10 male contacts arranged in two rows.
The housing is made of polyester, and the contacts are brass plated with tin.
It operates within a temperature range of -40°C to 105°C.
This model uses solder termination for installation.
The connector is shrouded, providing enhanced protection during mating.
It has a straight orientation for secure mating and easy installation.
It is suitable for various applications including industrial control systems, signal routing, and power management.
This model utilizes a wire-to-board connector system.
The tail pin length is 3.2 mm.
