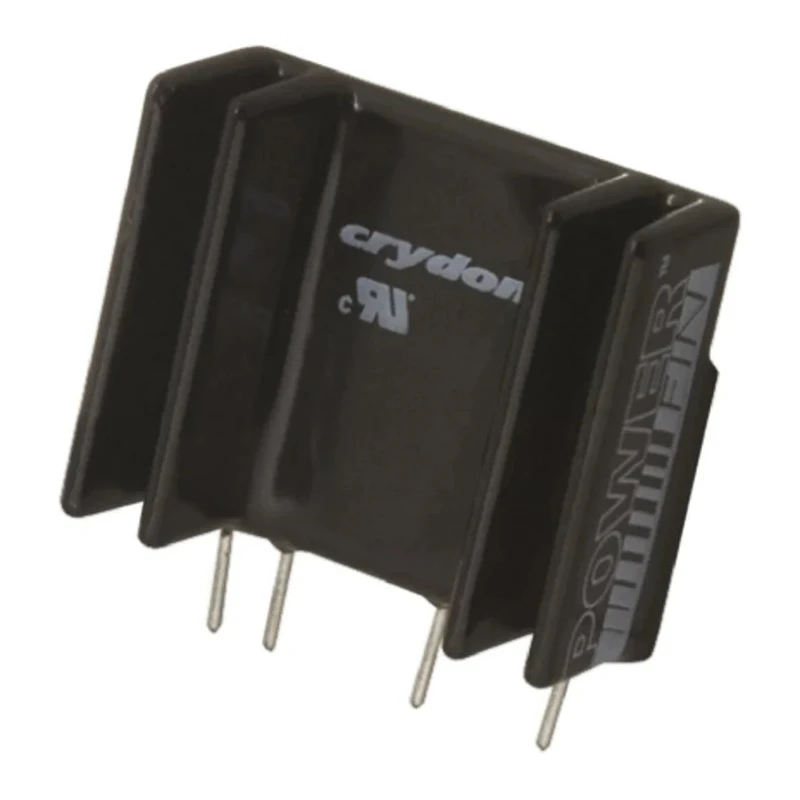

Crydom PF Series Solid State Relay PCB Mount 25A Load 660 Vrms 15V Control PF480D25
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 34.3mm |
| Operating Temperature Range | -40 → +80°C |
| Length | 43.1mm |
| Model | PF480D25 |
| Mount Type | PCB |
| Series | PF |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Maximum Load Current | 25A |
| Standards/Approvals | RoHS, UL, CE, E116950 |
| Minimum Control Voltage | 4V |
| Maximum Control Voltage | 15V |
| Off State Leakage Current | 0.1mA |
| On State Resistance | 1000000000Ω |
| Surge current peak | 250A |
| Input-Output capacitance | 8pF |
Key Features
- Designed for PCB mounting, enabling direct integration into electronic circuits.
- Handles maximum load current up to 25A, supporting demanding industrial and automation applications.
- Operates at maximum load voltage up to 660 Vrms and accepts control voltages up to 15V.
- Wide operating temperature range from -40°C to +80°C supports harsh environments.
- Features off-state low leakage current and SCR output for reliable switching.
- Ultra high steady state current rating, allowing for peak surge currents up to 250A.
- Zero-cross switching (where specified), optimizing AC load switching performance.
- RoHS, UL and CE approvals ensure compliance with major safety and quality standards.
Product Description
The Crydom PF480D25 is a high-performance Solid State Relay engineered for PCB mounting, capable of handling demanding loads in automation, electrical control, and process management systems. Its compact form factor allows efficient integration into electronic boards, facilitating reliable switching and circuit isolation for both industrial and commercial applications.
With a maximum load current rating of 25A and a maximum load voltage of 660 Vrms, this relay is well-suited for heavy-duty switching of AC loads, including motors, heaters, and general industrial equipment. The relay accepts a control voltage up to 15V and operates effectively down to 4V, providing compatibility with a wide range of control signals from PLCs, microcontrollers, and control panels.
The PF Series relay delivers ultra high steady state current handling and boasts a surge current peak capacity of 250A, protecting against transient spikes. Its SCR output technology ensures low off-state leakage current and reliable switching. Random-fire and zero-cross switching modes optimize performance for diverse load types depending on application requirements.
Designed to perform reliably over wide temperature ranges, the relay functions from -40°C to +80°C, making it suitable for deployment in harsh industrial environments and enclosed control cabinets. The on-state resistance is exceptionally high, supporting minimal heat generation during operation. Input-output capacitance is specified at 8pF, with capacitance and leakage characteristics suitable for sensitive circuit demands.
Mounting is achieved directly on a PCB, with a space-efficient footprint (approximate dimensions: length 43.1mm, height 34.3mm, typical range W22.8mm). The relay complies with RoHS, UL, and CE standards (certificate E116950), guaranteeing safety, quality, and international regulatory acceptance.
Industrial use cases include manufacturing automation, process control, HVAC systems, laboratory instrument control, commercial power switching, and wherever solid state switching reliability is essential. Its high reliability and robust specifications make it a primary choice for engineers and system designers seeking durable AC load switching solutions.
Explore additional Crydom relays and automation solutions in the EnvMart Electronics & Electricals category for comprehensive project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current of the Crydom PF480D25 is 25A, making it suitable for demanding industrial applications.
This model can handle a maximum load voltage of up to 660 Vrms, allowing for heavy-duty AC load switching.
It accepts a control voltage ranging from 4V to 15V, providing compatibility with various control systems.
The operating temperature range for the PF480D25 is from -40°C to +80°C, suitable for harsh environments.
The relay has a surge current peak capacity of 250A, which helps protect against transient spikes.
The dimensions of this relay are approximately 43.1mm in length, 34.3mm in height, and 22.8mm in width.
This model is designed for PCB mounting, enabling direct integration into electronic circuits.
The PF480D25 complies with RoHS, UL, and CE standards, ensuring it meets major safety and quality regulations.
The off-state leakage current is specified at 0.1mA, contributing to its reliability in switching applications.
The on-state resistance of this relay is exceptionally high at 1 GΩ, which minimizes heat generation during operation.
This relay is suitable for applications in manufacturing automation, process control, HVAC systems, and commercial power switching.
The input-output capacitance is specified at 8pF, which is suitable for sensitive circuit demands.
