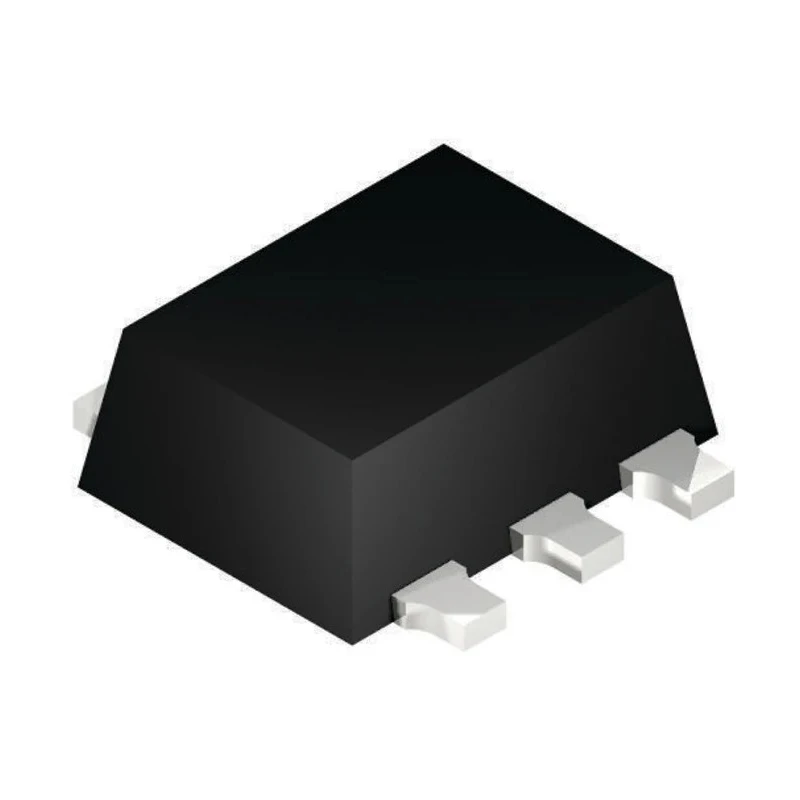

Nexperia Schottky Barrier Diode 20 V 500 mA SOT-666 Surface Mount PMEG2005AEV,115

Nexperia PMEG2005AEV,115 is a high-performance Schottky barrier diode engineered for demanding electronics applications that require efficient rectification, protection, and high reliability in a compact form factor. This device operates with a peak reverse repetitive voltage of 20 V and can handle up to 500 mA continuous forward current, making it suitable for a variety of power switching and signal rectification uses.

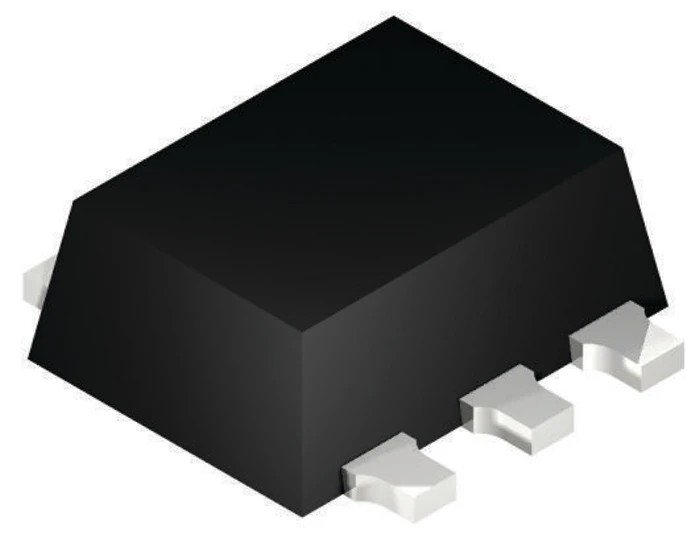

The ultra-small SOT-666 surface-mount package enables space-saving PCB designs, making this diode ideal for modern electronic assemblies where miniaturization is critical. Its six-pin single diode configuration supports straightforward integration for rectification, voltage clamping, and signal protection tasks.

Optimized for low forward voltage drop, the PMEG2005AEV,115 enables reduced power dissipation and efficient energy conversion, while its high junction temperature capability (up to 150 °C) ensures stability in high-stress environments. The device is designed to minimize switching losses and features a low leakage current, supporting both signal integrity and overall energy efficiency.

With a peak non-repetitive forward surge current rating of 10 A, this diode can withstand occasional power surges, making it highly suitable for robust power management circuits. The low capacitance characteristic allows for precise performance in high-speed switching and signal processing applications.

The diode offers a broad operating temperature range from -65 °C to +150 °C, ensuring consistent performance across industrial, laboratory, and automotive scenarios. The SOT-666 package's 0.6 mm height, 1.7 mm length, and 1.3 mm width support dense PCB layouts and surface-mount compatibility.

Schottky barrier technology delivers fast switching and low power loss. Ideal for surface-mount applications in compact electronic devices. Single diode configuration simplifies integration into rectification and clamping circuits.

Designed for high efficiency and reliable operation in industrial, automotive, and commercial electronics. Compatible with automated PCB assembly and high-density board designs. Low leakage current promotes long-term performance and device stability.

Robust surge handling enables use in power management and protection circuits. Supports demanding temperature and environmental conditions.

This Nexperia PMEG2005AEV,115 Schottky diode belongs to the PMEG2005AEV series and is manufactured in China. It is an excellent component for industrial automation, instrumentation, signal processing, consumer electronics, and advanced power supply architectures. Browse more Schottky Diodes and rectifiers or discover Nexperia semiconductor solutions in the EnvMart electronic components category.
