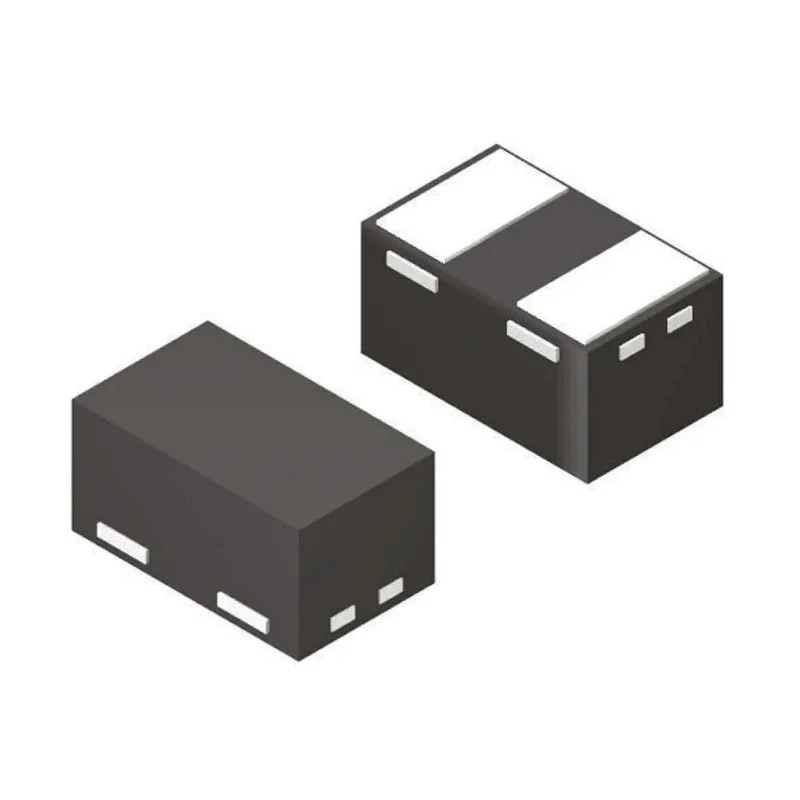

Nexperia Schottky Diode, SOD-882, 30V, 200mA, Ultra-Small Surface Mount, PMEG3002AEL,315

The Nexperia PMEG3002AEL,315 Schottky Diode is engineered for high efficiency and space-saving surface mount electronics. Featuring a SOD-882 package, this diode is designed for situations where low-profile and compact components are essential, such as mobile devices and high-density circuit boards. It operates with a peak reverse repetitive voltage (Vrrm) of 30 V and handles a maximum continuous forward current (If) of 200 mA, making it reliable for low-voltage applications requiring swift switching and minimal power losses.

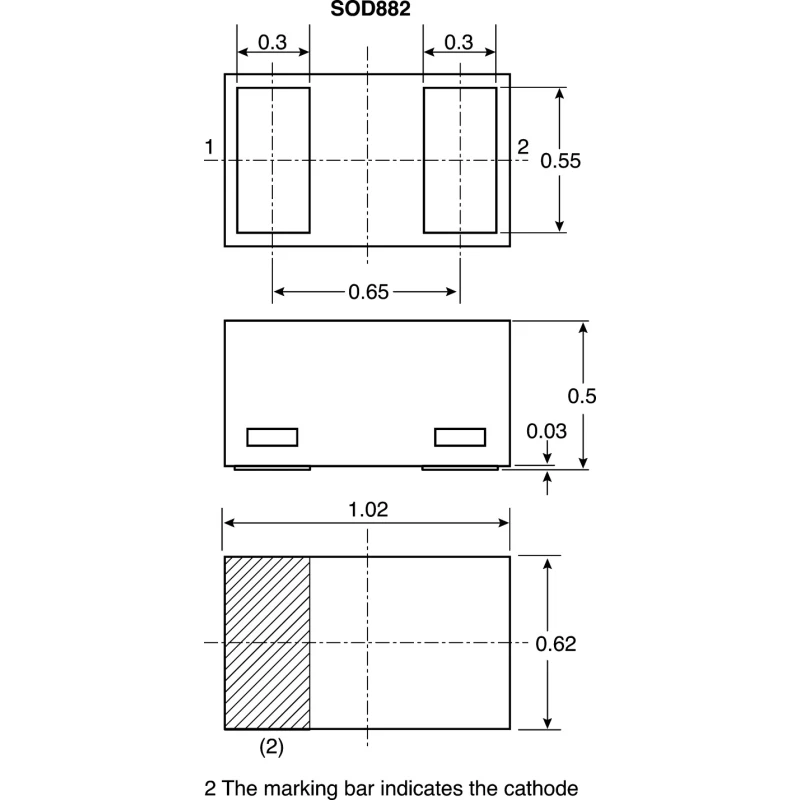

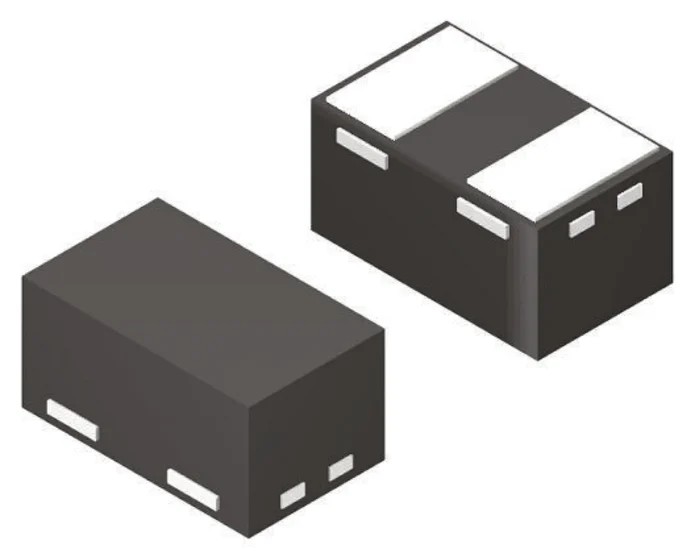

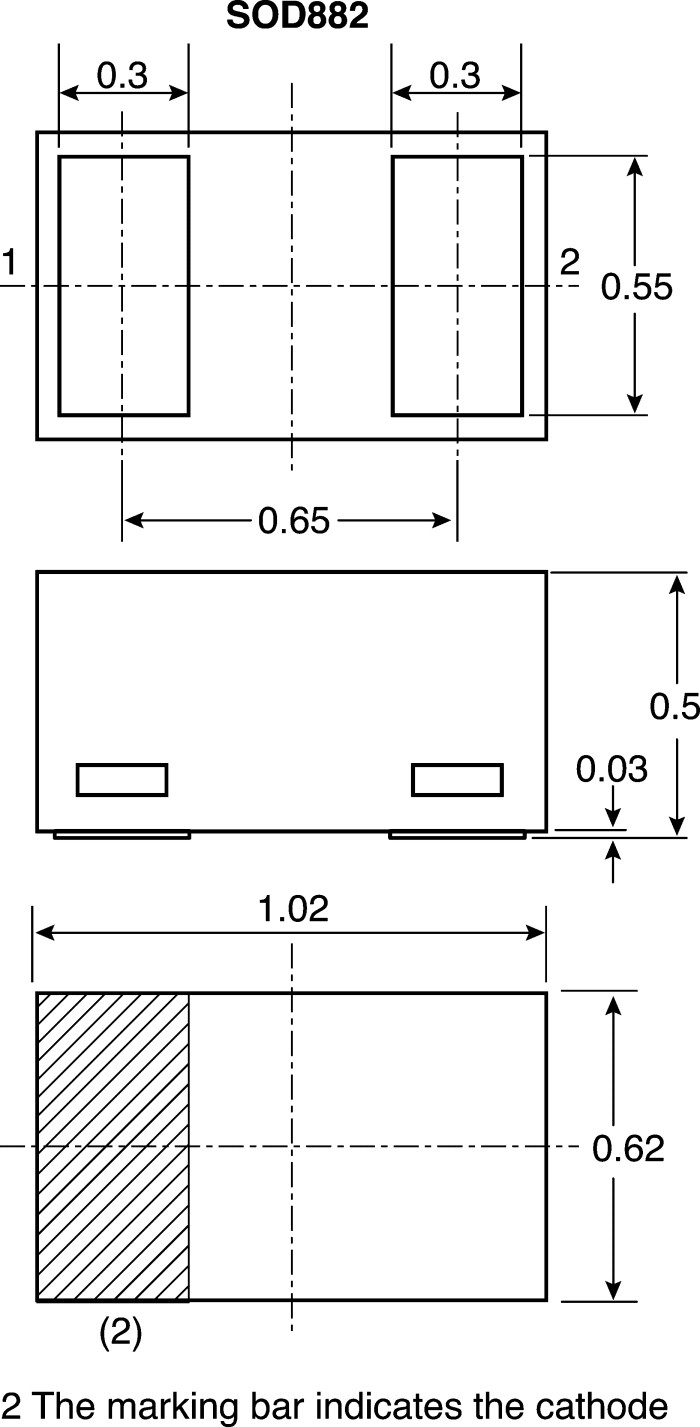

This diode utilizes Schottky Barrier technology, offering low forward voltage characteristics (maximum forward voltage Vf of 480 mV) and low leakage current (Ir of 50 μA). Such properties maintain high circuit efficiency and support operations where minimal switching losses are critical, including power management subsystems and logic circuits. Its ultra-small surface-mount form factor (height: 0.47 mm, length: 1.02 mm, width: 0.62 mm) makes it particularly suitable for modern designs with stringent space constraints.

The PMEG3002AEL,315 is optimized for operation in environments with temperatures ranging from -65°C to up to 150°C, providing robust and stable performance under varied thermal conditions. With its ability to withstand a peak non-repetitive forward surge current (Ifsm) of 3 A, the diode can manage short duration overcurrent events, enhancing reliability during power-up or transient states. Its single diode configuration and 2-pin design simplify integration and increase versatility across applications.

This diode is ideal for industrial electronics, advanced consumer devices, automotive systems (non-automotive standard), and high-density PCBs in HVAC, laboratory, and commercial environments. The low capacitance and negligible power switching losses make it a strong choice for fast, efficient designs requiring streamlined profiles and thermal stability.

Designed for use within production environments, the PMEG3002AEL,315 is available in standard and reel packaging formats to facilitate efficient manufacturing workflows. It plays a core role in discrete semiconductor applications, Schottky rectifiers, and energy-sensitive circuits.

Ultra-small SOD-882 package provides maximum space saving for surface-mount assemblies. Low forward voltage and high junction temperature support energy-efficient operation. Reliable performance across a wide temperature range for industrial and consumer electronics.

2-pin configuration for straightforward integration and enhanced design flexibility. Negligible switching losses and low leakage current improve circuit power characteristics.
