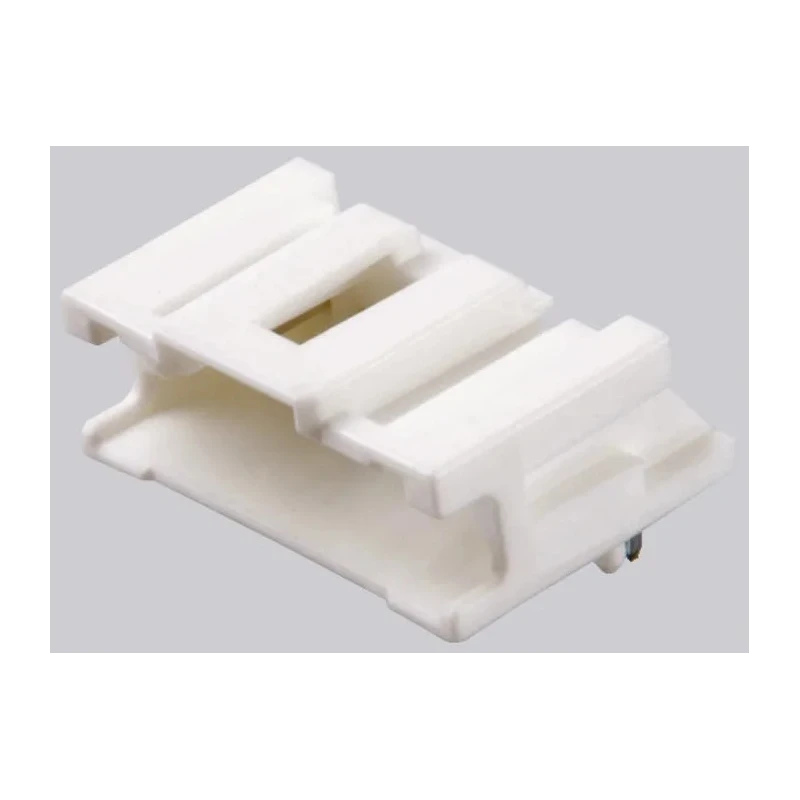

Molex MicroClasp Series Right Angle Through Hole PCB Header 10 Contacts 2 mm Pitch 1 Row Shrouded 3A 250V 55935-1010
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Tin |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | UL 94V-0 |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- Designed for wire-to-board connections with compact 2.00 mm pitch for space savings.
- Features a right-angle, through-hole mounting with shrouded construction for secure mating and reliable retention.
- Supports up to 3A current and 250V voltage, ensuring robust electrical performance for PCB designs.
- Constructed with polyester housing and tin-plated male contacts for durability and corrosion resistance.
- Operates in a wide temperature range from -40°C to 105°C for versatile industrial and electronic applications.
- Includes an inner positive lock and housing lance system for latch protection and audible click during mating.
- Easy solder termination type and low insertion force terminal design for efficient assembly.
Product Description
Molex 55935-1010 MicroClasp Series Right Angle Through Hole PCB Header is a high-performance connector solution engineered for space-efficient wire-to-board applications. Featuring a 2.00 mm pitch and single row configuration with ten male contacts, this header is ideal for compact PCB layouts and devices requiring reliable interconnection.
This model is designed with right angle orientation and shrouded construction, delivering secure and robust mating. The connector supports 3A of current and operates at up to 250V, making it suitable for a range of low-to-medium power electronics.
The polyester housing, combined with tin-plated contacts, provides excellent insulation and resistance to environmental stress, ensuring dependable performance. Its solder termination type and low insertion force facilitate ease of installation and maintenance in manufacturing environments.
With an operating temperature range from -40°C to 105°C, the Molex MicroClasp header is practical for industrial, laboratory, consumer electronics, and other demanding applications. The built-in inner positive lock and housing lance system offer secure latch protection, audible mating feedback, and terminal protection for enhanced reliability.
Typical use cases include wire-to-board connections in control panels, instrumentation, electronic modules, and any environment where compact, reliable PCB connectivity is essential.
Compact wire-to-board connector for space-limited PCB layouts. Secure shrouded design with audible click for latch confirmation. Operates from -40°C to 105°C, suitable for industrial and commercial settings. Supports 3A and 250V standards for robust electrical connections.
Polyester housing and tin-plated contacts provide strong durability and resistance to corrosion. Solder termination and low insertion force enable efficient assembly. Ideal for control systems, instrumentation, and demanding PCB applications.
Browse Molex PCB Headers and industrial connector solutions for additional options at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Molex MicroClasp Series Right Angle Through Hole PCB Header is 2.00 mm.
This model features 10 male contacts.
The maximum voltage rating for this connector is 250V.
It supports a current rating of up to 3A.
The housing is made of polyester, and the contacts are tin-plated for corrosion resistance.
This model operates within a temperature range of -40°C to 105°C.
It uses a solder termination type for connections.
The orientation of this header is right angle, designed for through-hole mounting.
Yes, it includes an inner positive lock and housing lance system for latch protection and audible click during mating.
The tail pin length is 3.2 mm.
Yes, it is suitable for various industrial applications due to its wide operating temperature range and robust electrical performance.
This model complies with UL 94V-0 standards.
