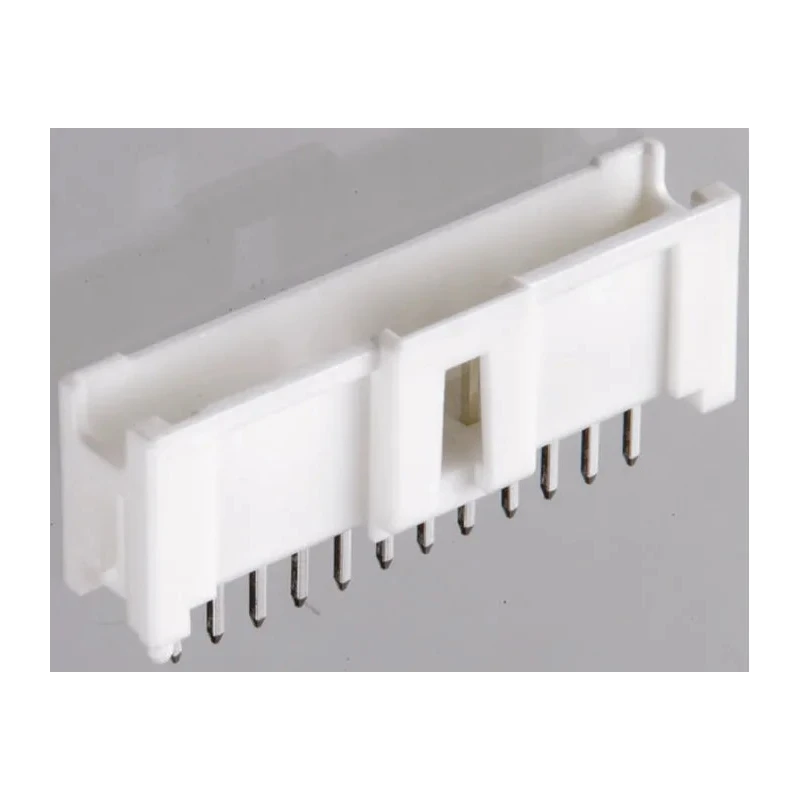

Molex MicroClasp Series Straight Through Hole PCB Header, 9 Contacts, 2 mm Pitch, 1 Row, Shrouded, 3A, 250V 55932-0910

The Molex 55932-0910 MicroClasp Series PCB Header is a compact, high-performance connector engineered for modern electronic assemblies. With 9 contacts arranged in a single row and a precise 2 mm pitch, this header enables space-efficient wire-to-board connections without compromising on integrity or current-carrying capacity.

Its shrouded, straight-through hole design provides robust mechanical protection and simplifies both manual and automated assembly. The PCB header is engineered to deliver reliable power and signal transfer up to 3A at voltages as high as 250V, making it a versatile choice for a variety of industrial, automation, test equipment, and commercial electronics systems.

The housing, molded from durable polyester, provides insulation and resistance to environmental stresses, while tin-plated male contacts offer low electrical resistance and improved longevity. The integrated inner positive locking feature ensures a secure, audible mating each time, reducing the risk of accidental disconnects or incomplete connections during installation or service.

The low insertion force terminal design makes handling easier, especially during repeated cycles or mass production. With solder termination and through-hole mounting, this PCB header supports firm anchoring to circuit boards while simplifying automated insertion and reflow processes.

The Molex MicroClasp series stands out for its combination of compactness and strength. Operating in a temperature range from -40°C to 105°C, it is suitable for applications in harsh environments. The series' lance system integrates added security, while the easy mating and unmating features support high assembly efficiency in manufacturing operations. The 2 mm pitch helps achieve higher circuit densities in constrained spaces without sacrificing accessibility or mating quality.

Suitable for use in industrial control systems, telecom equipment, consumer electronics, instrumentation, medical devices, automotive subsystems, and power conversion modules, the 55932-0910 header maintains consistent performance over its operational lifetime. Each header is designed for wire-to-board systems where space, reliability, and secure retention are critical considerations.

Compact 9-contact header in a single row, with 2 mm pitch for dense circuit layouts. Rated for 3A current and up to 250V, supporting both power and signal circuits. Shrouded protection with audible positive lock mechanism for improved mating assurance.

Manufactured with polyester housing and tin-plated contacts for electrical and environmental durability. Functions reliably between -40°C and 105°C, meeting the needs of industrial-grade designs. Through-hole, straight configuration simplifies soldering and processing steps.

Whether integrated into industrial panels, instrumentation front-ends, or automated test stations, Molex MicroClasp Series headers ensure consistent, high-quality connections. Choose this connector for your next design to leverage Molex's long-standing reputation for performance, reliability, and miniaturization. Browse more PCB Header and Wire-to-Board solutions in the EnvMart catalog.
