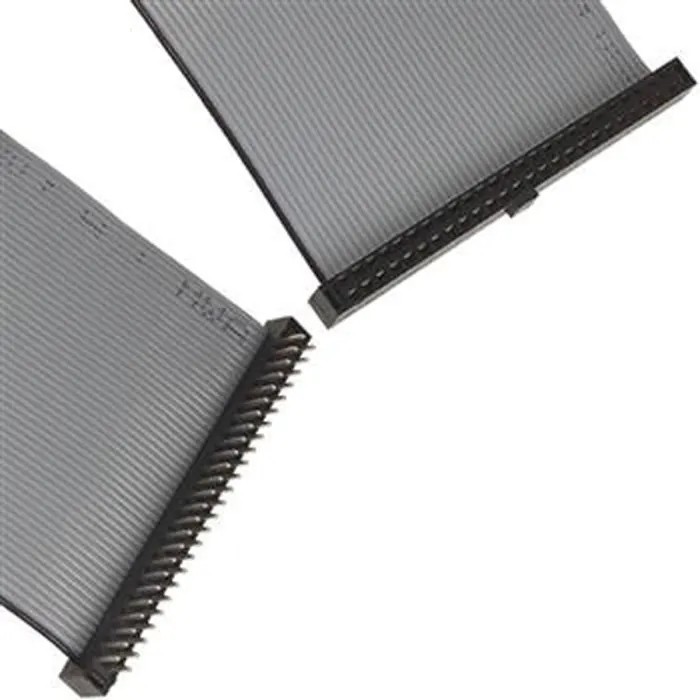

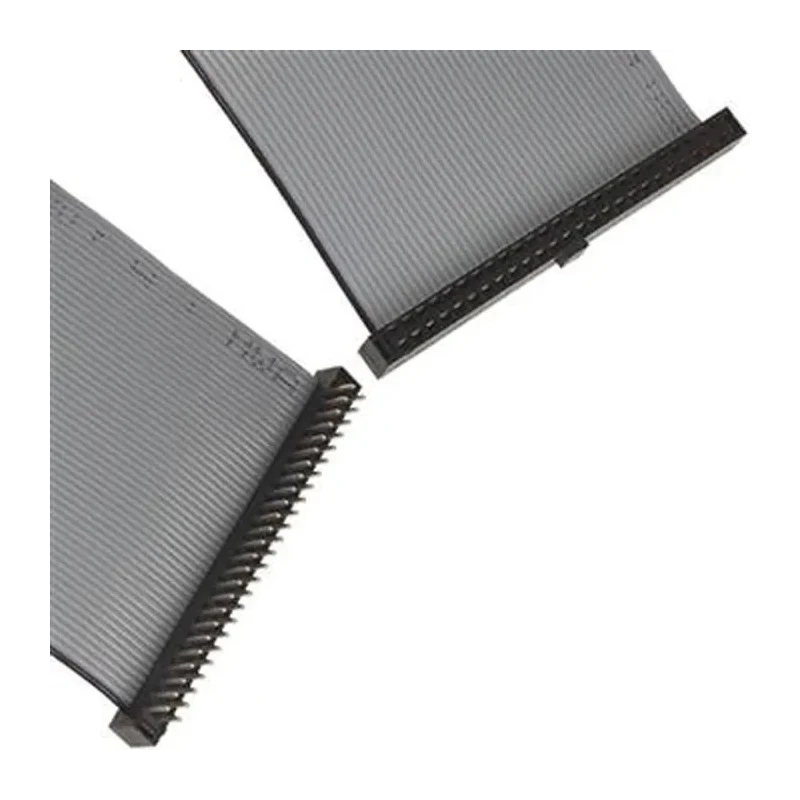

Samtec TCMD Series Flat Ribbon Cable, 25 Conductors, 2 mm Pitch, 203.2 mm Length, 28AWG, TCMD-25-T-08.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Operating Temperature Range | -40 to 105°C |
| Model | TCMD-25-T-08.00-01-N |
| Cable Length | 203.2mm |
| Current Rating | 1A |
| Series | TCMD |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Tin Copper Wire |
| Cable Type | Flat Ribbon |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyester |
| Pitch | 2mm |
| Contact Resistance | 10mΩ max |
| Standards/Approvals | RoHS Compliant |
| Jacket Colour | Grey |
| American Wire Gauge | 28AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 36AWG |
| Size of Strands | 36AWG |
| Number of Conductors | 25 |
Key Features
- Designed for reliable wire-to-board applications in industrial, electronic, and automation systems.
- Features a 2 mm pitch for compact and consistent signal transmission.
- Contains 25 conductors with stranded tin copper wire, offering flexibility and durability.
- Polyester jacket provides excellent mechanical protection and electrical insulation.
- Rated for 1A current and operating temperature range from -40°C to 105°C.
- Compliant with RoHS standards, suitable for environments demanding strict compliance.
- Core strands specification of 7 x 36AWG for efficient conductivity and flexibility.
- Grey jacket color enhances visibility and identification during installation.
Product Description
The Samtec TCMD-25-T-08.00-01-N is a high-quality flat ribbon cable designed for efficient wire-to-board connections in electronics, automation equipment, and industrial control systems. With its 2 mm pitch and 25 individual conductors, this ribbon cable enables neat, compact, and parallel signal transmission across devices, ensuring reliability and ease of integration.
Manufactured with stranded tin copper wires, each conductor offers flexibility for bending and routing while maintaining robust electrical performance. The polyester jacket provides superior mechanical protection and insulation, making it ideal for applications where durability and long-term service are essential.
The cable is unscreened, which allows for easier stripping and terminations in confined spaces. Rated for a maximum current of 1 Ampere, it safely operates in demanding environments with an operating temperature range from -40°C to 105°C. Its 28AWG conductor size is suitable for signal and data transmission lines, supporting versatile electronic and control interfaces.
Compliant with RoHS standards, this cable meets global regulatory requirements for restricted substances in electrical products, making it suitable for modern industrial installations and laboratory setups. The grey jacket color aids in rapid identification, supporting efficient cable management in complex wiring harnesses.
The core strands specification (7 x 36AWG) further enhances cable flexibility and reliability in dynamic routing scenarios. Typical use cases include industrial machinery, laboratory instrumentation, embedded electronics, and commercial equipment wiring.
Explore EnvMart's range of Ribbon Cables and electronic interconnects to find reliable solutions for your wiring and connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a length of 203.2 mm.
It features a pitch of 2 mm, allowing for compact and consistent signal transmission.
This model contains 25 individual conductors, providing multiple connection points for wire-to-board applications.
It is rated for a maximum current of 1 Ampere.
The operating temperature range is from -40°C to 105°C, making it suitable for various demanding environments.
The conductors are made of stranded tin copper wire, and the jacket is made of polyester, providing mechanical protection and electrical insulation.
Yes, it is RoHS compliant, meeting regulatory requirements for restricted substances in electrical products.
The conductors are sized at 28AWG, suitable for signal and data transmission lines.
It is a flat ribbon cable designed for reliable wire-to-board applications in industrial and electronic systems.
The contact resistance is a maximum of 10 mΩ, ensuring efficient electrical performance.
Each conductor consists of 7 strands, with a core strand specification of 7 x 36AWG for enhanced flexibility.
The jacket is grey, which aids in visibility and identification during installation.
