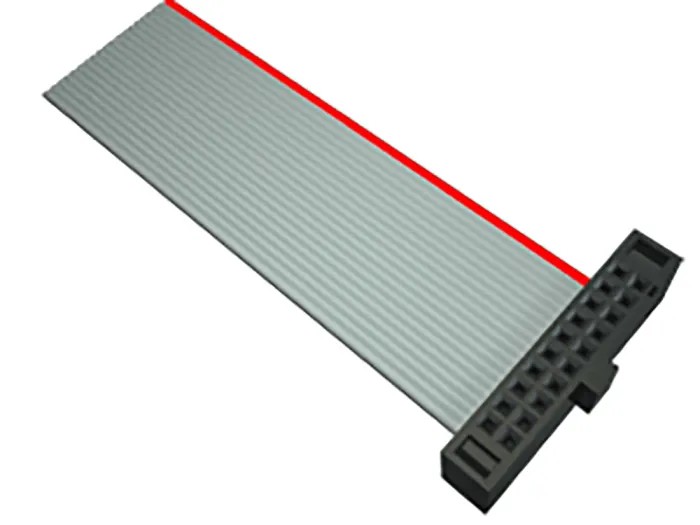

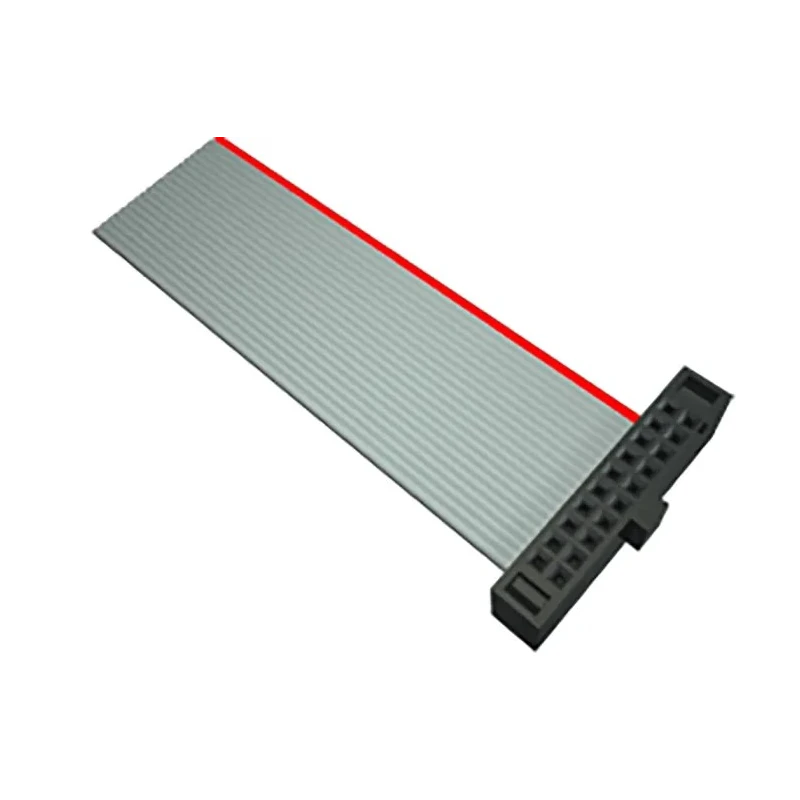

Samtec FFSD Series Flat Ribbon Cable, 1.27 mm Pitch, 10 Conductors, 101.6 mm Length, Polybutylene FFSD-05-S-04.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | FFSD-05-S-04.00-01-N |
| Cable Length | 101.6mm |
| Series | FFSD |
| Maximum Operating Temperature | 105°C |
| Cable Type | Flat Ribbon |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polybutylene Terephthalate |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS, File No. E111594 |
| Jacket Colour | Red |
| American Wire Gauge | 30AWG |
| Number of Conductors | 10 |
| Optional Strain Relief | Available |
Key Features
- Flat ribbon cable with 1.27 mm pitch for reliable signal transmission.
- Composed of 10 conductors for multi-line interfacing.
- Polybutylene Terephthalate jacket ensures durability and chemical resistance.
- Red jacket color for easy identification in assemblies.
- Designed for applications requiring a maximum operating temperature of 105°C and a minimum of -40°C.
- High-reliability Tiger Eye IDC socket system for secure contacts.
- Rated at 30 AWG, suitable for low-voltage electronic applications.
- Compact 101.6 mm cable length ideal for internal electrical routing.
Product Description
The Samtec FFSD-05-S-04.00-01-N is a high-performance flat ribbon cable from the FFSD Series, optimized for electronic assemblies requiring compact and reliable wire-to-board connections. It incorporates a 1.27 mm pitch, which allows for tight spacing and clear signal separation, making it ideal for internal wiring in industrial, laboratory, and automation equipment.
Featuring 10 conductors in a parallel configuration, this cable is suitable for multi-signal or power transmission, commonly used in modular interconnects, data buses, and control systems. The polybutylene terephthalate jacket offers superior mechanical strength and resistance to abrasion and chemicals, ensuring long-term durability even in challenging environments.
The cable is equipped with high-reliability Tiger Eye IDC socket contacts, providing secure connections for high cycle applications such as automated test setups, robotics, and electronic control panels. The red jacket color facilitates easy identification and traceability within complex wiring layouts, while the maximum temperature rating of 105°C and minimum of -40°C support operation in a wide range of climates.
The cable length of 101.6 mm is engineered for compact enclosures and short-run internal applications, minimizing excess wire and reducing electrical interference. The 30 AWG conductor rating is optimal for low-voltage and signal-carrying wires in electronics, offering both flexibility and precise performance.
Additional features include optional strain relief for enhanced mechanical integrity and a polarization key to prevent mis-connection. Compliant with RoHS environmental standards, this ribbon cable is suited for industrial, laboratory, machinery, instrumentation, electronic assembly, and automation use cases where reliability and space efficiency are critical.
For more Ribbon Cables, explore the 'Wires & Cables' category or browse Samtec products across EnvMart's portfolio.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the FFSD Series flat ribbon cable is 1.27 mm, allowing for tight spacing and clear signal separation.
This model features 10 conductors, which are arranged in a parallel configuration for multi-signal or power transmission.
The maximum operating temperature for this cable is 105°C, making it suitable for a variety of applications that require heat resistance.
The jacket of the cable is made from polybutylene terephthalate, which provides mechanical strength and chemical resistance.
The length of this flat ribbon cable is 101.6 mm, designed for compact enclosures and short-run internal applications.
The American Wire Gauge (AWG) rating for this cable is 30 AWG, suitable for low-voltage electronic applications.
Yes, optional strain relief is available for this model to enhance mechanical integrity.
The jacket of the cable is red, which aids in easy identification within complex wiring layouts.
This cable is compliant with RoHS environmental standards, ensuring it meets specific safety and environmental criteria.
The minimum operating temperature for this cable is -40°C, allowing it to function in a wide range of climates.
This flat ribbon cable is suitable for various applications including industrial, laboratory, machinery, instrumentation, and electronic assembly.
This cable utilizes a high-reliability Tiger Eye IDC socket system, providing secure connections for high cycle applications.
