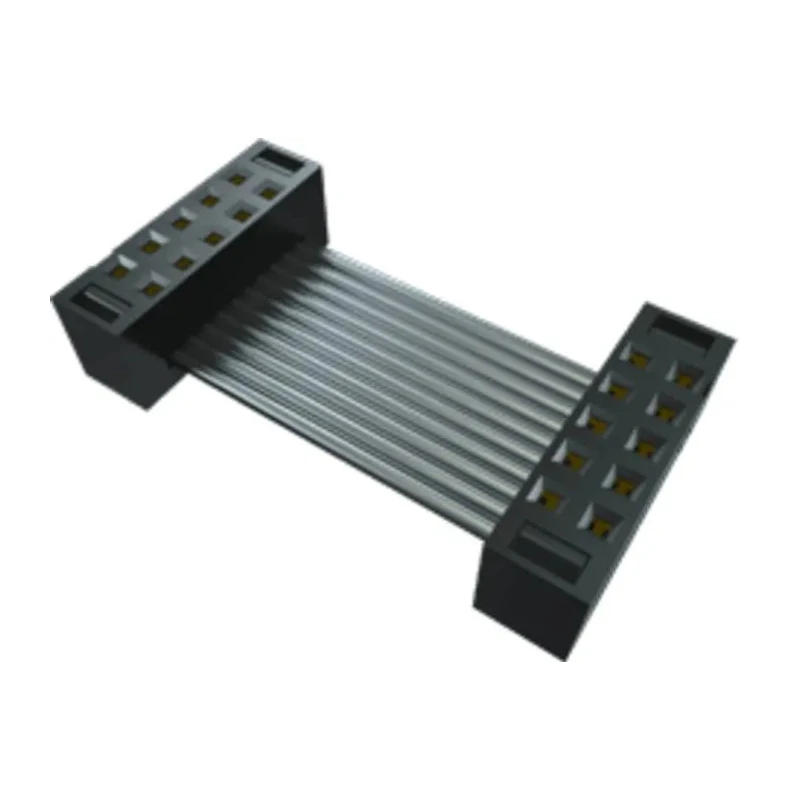

Samtec Flat Ribbon IDC Socket Cable Assembly, 3.175 mm, Tiger Eye IDC to Tiger Eye IDC TCSD-05-D-06.00-01-F-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-05-D-06.00-01-F-N |
| Cable Length | 3.175mm |
| Current Rating | 2.8 A per pin |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Glass Filled Polyester |
| Standards/Approvals | RoHS Compliant |
| Connector Type A | Tiger Eye IDC |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Contact Gender A | Female |
Key Features
- Features high-quality flat ribbon cable for efficient signal transmission.
- Equipped with Tiger Eye IDC female connectors on both ends.
- Durable jacket made from glass filled polyester, finished in black.
- Contact points constructed from beryllium copper for enhanced conductivity.
- Supports a current rating of 2.8A per pin for reliable operation.
- Suitable for wire-to-board connection applications in industrial and commercial electronics.
- Operating temperature range from -40°C to +105°C ensures versatility across environments.
- RoHS compliant for safe and sustainable usage.
Product Description
The Samtec TCSD-05-D-06.00-01-F-N is a flat ribbon IDC socket cable assembly specifically designed for dependable wire-to-board connections. Its cable length is 3.175 mm, providing compact routing for electronics and automation interfaces.
Engineered for optimal connectivity in electronic and automation systems, the cable uses beryllium copper contact points to ensure efficient signal transmission and excellent durability. With a current rating of 2.8A per pin, the assembly is built to meet the demands of applications requiring reliable electrical performance.
The TCSD series is known for its high-quality construction and materials, including RoHS-compliant components. The black jacket not only reinforces insulation but also provides aesthetic uniformity when installed. Its ability to operate within a temperature range from -40°C to +105°C makes it suitable for harsh industrial, automation, and laboratory conditions.
This cable assembly is ideal for designers and engineers seeking efficient, reliable connections between printed circuit boards and other electronic assemblies. Its Tiger Eye IDC connectors ensure secure mating with compatible sockets, contributing to overall system robustness.
Applications include industrial automation equipment, laboratory instrumentation, manufacturing systems, commercial electronic assemblies, and HVAC equipment interfaces where space-saving ribbon cable types are advantageous.
Choose Samtec’s TCSD-05-D-06.00-01-F-N for engineered reliability and proven performance across a broad range of electronics and electrical systems. Explore more wire-to-board cable solutions and the Samtec brand in the Ribbon Cable category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2.8A per pin, ensuring reliable electrical performance for various applications.
It operates within a temperature range of -40°C to +105°C, making it suitable for harsh industrial and laboratory environments.
This cable assembly is equipped with Tiger Eye IDC female connectors on both ends for secure mating with compatible sockets.
The jacket is constructed from glass filled polyester, providing insulation and aesthetic uniformity.
Yes, this cable assembly is RoHS compliant, ensuring it meets environmental safety standards.
The cable length is 3.175 mm, designed for compact routing in electronic and automation interfaces.
It is suitable for industrial automation equipment, laboratory instrumentation, manufacturing systems, and HVAC equipment interfaces.
This model is a flat ribbon cable, designed for efficient signal transmission in electronic systems.
The Samtec TCSD-05-D-06.00-01-F-N cable assembly is manufactured in India.
Both connectors on this cable assembly are female, designed for compatibility with corresponding male connectors.
This cable assembly is part of the TCSD series, known for its high-quality construction and reliable performance.
The contact points are made from beryllium copper, which enhances conductivity and ensures efficient signal transmission.
