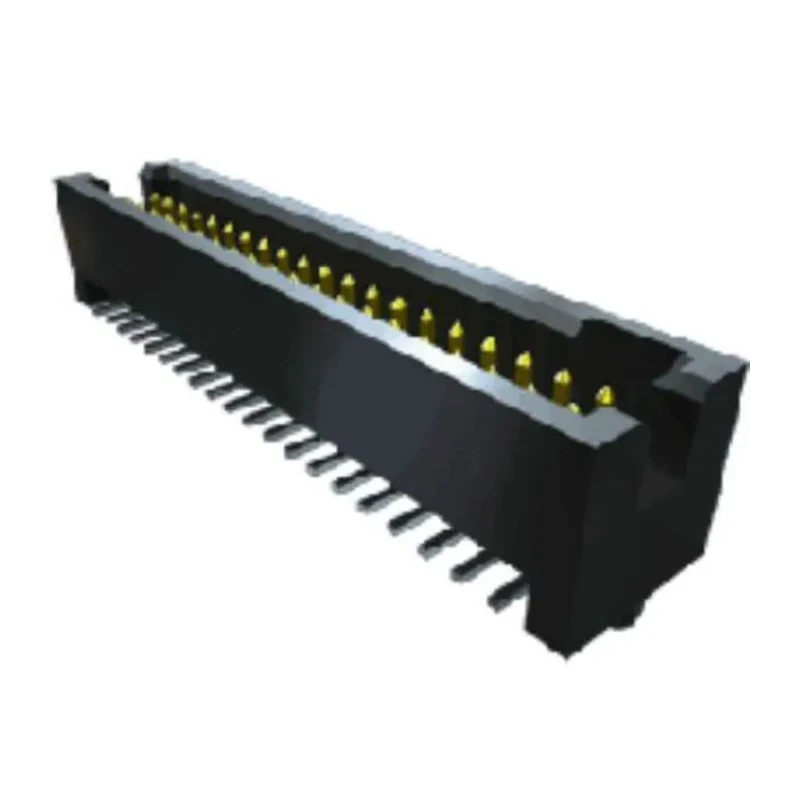

Samtec Right Angle Through Hole PCB Header, 10 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-105-02-L-D-WT-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec Right Angle Through Hole PCB Header, 10 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-105-02-L-D-WT-K-TR

Name: Samtec Right Angle Through Hole PCB Header, 10 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-105-02-L-D-WT-K-TR
Brand: Samtec
SKU: 84542
Price: 2.91 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Right Angle
Current	3.2A
Model	TFM-105-02-L-D-WT-K-TR
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TFM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Provides 10 gold-plated, male contacts arranged in 2 rows for reliable board-to-board connections.
Features a 1.27 mm pitch and shrouded housing for accurate insertion and alignment with mating connectors.
Through-hole and right angle mounting configuration enables secure mechanical retention for PCB integration.
Constructed with a liquid crystal polymer housing and phosphor bronze contacts for durability and longevity.
Operates in a wide temperature range from -55°C to 125°C for use in demanding electronic environments.
Supports up to 3.2A current per contact and rated for 250V applications, suitable for industrial and electronic equipment.

Product Description

The Samtec TFM-105-02-L-D-WT-K-TR right angle through hole PCB header is a robust connectivity solution tailored for high-density applications requiring stable board-to-board electrical connections. This model from the Samtec TFM series is engineered with 10 male contacts, each arranged in two parallel rows, maintaining a compact 1.27 mm pitch. The shrouded configuration ensures precise mating and protects contacts from physical damage, minimizing insertion errors during assembly and maintenance operations.

Engineered for demanding electronic environments, this header utilizes a durable liquid crystal polymer (LCP) housing, which offers excellent chemical and temperature resistance, critical in harsh environments. Its contacts are constructed from phosphor bronze and are finished with a gold plating, significantly enhancing conductivity and corrosion resistance. The right angle design is ideal for applications where space constraints require perpendicular PCB mounting, optimizing layout flexibility.

The TFM-105-02-L-D-WT-K-TR model is rated for up to 3.2A current per contact and can withstand operating voltages up to 250V, making it suitable for a range of industrial, automation, embedded, computing, and instrumentation systems. The through hole mounting style provides strong mechanical retention to the PCB, ensuring long-term reliability under vibration and mechanical stress.

Supporting an impressive operating temperature range from -55°C to 125°C, this PCB Header is well-suited for use in both high and low temperature environments, including telecommunications, data acquisition, industrial controls, laboratory instrumentation, and other high-reliability applications. Its solder termination allows seamless integration into existing assembly processes.

Applications include use in industrial and laboratory control platforms, signal and data transmission interfaces, test and measurement equipment, embedded system expansion, and advanced electronic assemblies requiring robust connector performance.

Explore more high-performance PCB connectors in the EnvMart electronics category and browse Samtec’s extensive connectivity solutions range.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum current rating for this PCB header is 3.2A per contact.

This model is rated for a maximum operating voltage of 250V.

The contacts in this PCB header are arranged with a pitch of 1.27 mm.

The housing is made from liquid crystal polymer (LCP), and the contacts are constructed from phosphor bronze with gold plating.

This model features 10 gold-plated male contacts arranged in 2 rows.

It operates within a temperature range from -55°C to 125°C.

This header uses a through-hole mounting style, which provides strong mechanical retention to the PCB.

The contacts in this model are oriented at a right angle.

This model is shrouded, which helps ensure precise mating and protects the contacts from damage.

It features a solder termination type for easy integration into existing assembly processes.

The country of origin for this PCB header is India.

It is suitable for applications in industrial and laboratory control platforms, signal and data transmission interfaces, and test and measurement equipment.
