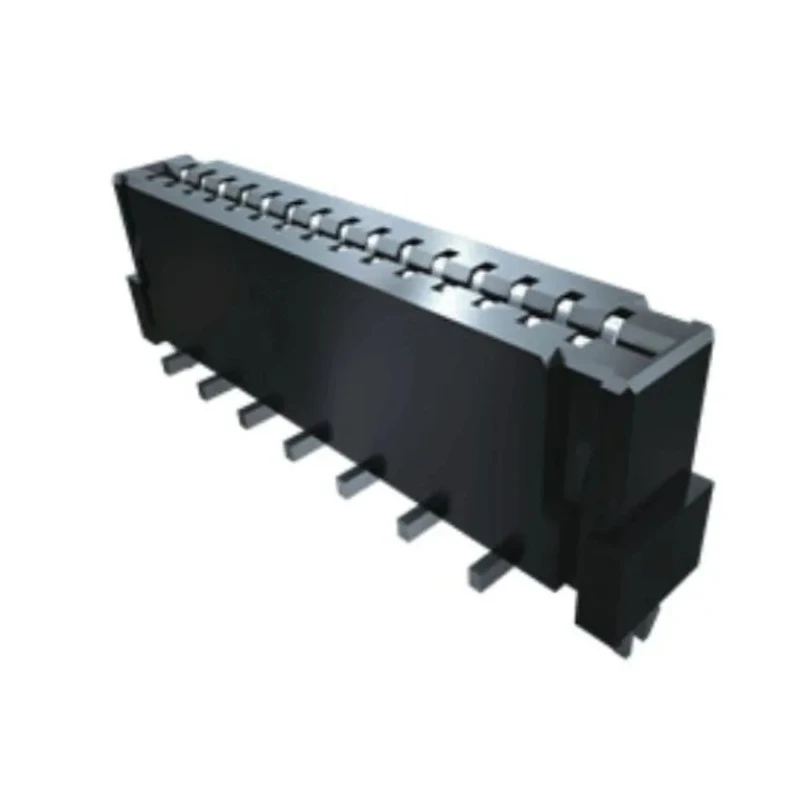

Samtec FC1 Series PCB Socket, 10 Contacts, Straight Surface Mount, 1 mm Pitch, FFC Connector, 1 Row, 2A, FC1-10-02-T-WT

Free Delivery in India | Lowest Global Shipping Charges

Samtec FC1 Series PCB Socket, 10 Contacts, Straight Surface Mount, 1 mm Pitch, FFC Connector, 1 Row, 2A, FC1-10-02-T-WT

Name: Samtec FC1 Series PCB Socket, 10 Contacts, Straight Surface Mount, 1 mm Pitch, FFC Connector, 1 Row, 2A, FC1-10-02-T-WT
Brand: Samtec
SKU: 84461
Price: 2.24 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	339V
Brand	Samtec
Orientation	Straight
Current	2A
Model	FC1-10-02-T-WT
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	FC1
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	FFC Connector
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Female
Connector System	Board-to-Cable

Key Features

Designed for board-to-cable connections with 10 contacts in a single row.
Surface mount PCB socket with 1 mm pitch ensures compact integration.
Supports up to 2A current and 339V voltage for reliable operation.
Housing made from liquid crystal polymer for enhanced durability.
Female contacts with tin plating for low resistance and secure connectivity.
Phosphor bronze contact material provides excellent conductivity.
Operating temperature range from -55°C to 105°C for wide application suitability.
Straight orientation for simplified PCB layouts in electronics design.

Product Description

Samtec FC1-10-02-T-WT is a high-performance PCB socket specifically engineered for demanding electronic and industrial applications. Featuring 10 contacts organized in a single row, this surface-mount FFC connector is ideal for board-to-cable interconnections where space-saving design and reliability are crucial. With a compact 1 mm pitch, the socket accommodates dense PCB layouts, supporting data and power transfer in a variety of instrumentation, control, and embedded systems.

This PCB socket is rated for a maximum current of 2A and voltage up to 339V, offering robust performance for both signal and low-power applications. The housing is constructed from liquid crystal polymer, providing excellent mechanical strength and resistance to high temperatures. Female contacts are made from phosphor bronze and finished with tin plating, resulting in dependable connection and low contact resistance.

The device is designed for surface mount integration, with straight contact orientation making it suitable for automated assembly lines and efficient PCB arrangement. Its solder termination ensures strong mechanical retention and consistent electrical connectivity during production and use.

This connector operates effectively across a wide temperature range, from -55°C to 105°C, making it suitable for environments where temperature fluctuations may occur, such as industrial instrumentation, automation, and laboratory equipment. Compliance with RoHS standards adds further appeal for manufacturers concerned with environmental and safety regulations.

Samtec FC1 Series sockets are frequently used in applications like industrial control boards, embedded systems, consumer electronics, medical instrument PCBs, and test measurement devices. The FC1-10-02-T-WT is a trusted solution for engineers requiring reliable, high-density connectivity.
