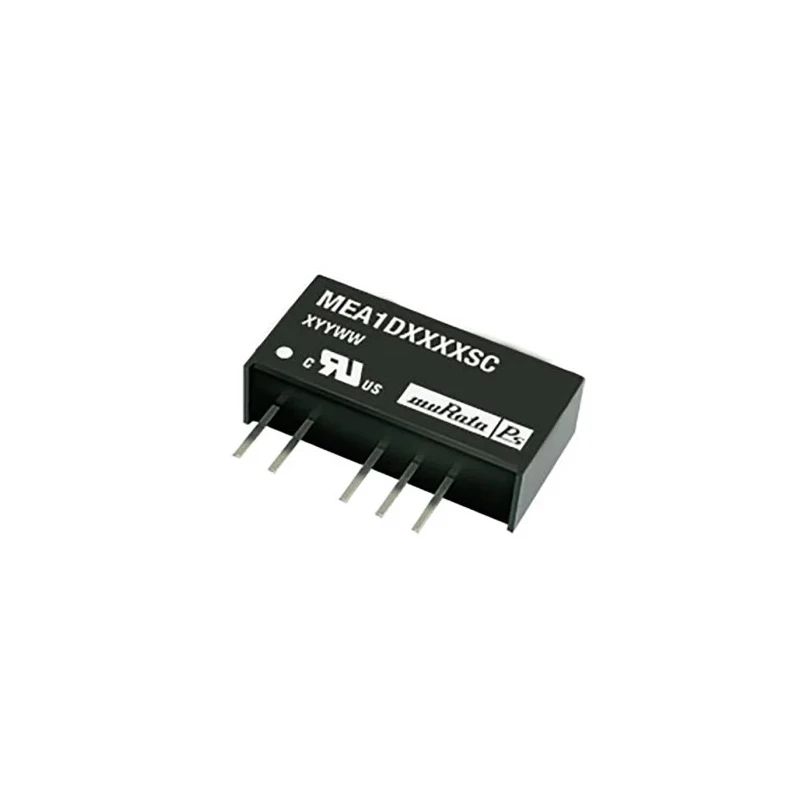

Murata Power Solutions 1W SIP Dual Output Unregulated Isolated DC-DC Converter, 9V dc/56mA Output, 21.6V-26.4V dc MEA1

Murata Power Solutions MEA1 MEA1D2409SC is a 1 watt SIP dual output, unregulated isolated DC-DC converter designed for use in a variety of electronic and industrial applications. This through-hole mounted converter supports input voltages between 21.6V and 26.4V DC and provides two outputs including a regulated 9V DC at 56 mA output current. It is enclosed in a SIP7 package with 7 pins, ensuring compatibility with industry-standard footprints.

With an efficiency rating of 87.5% and an operating temperature range from -40°C to 85°C, the MEA1 series converters are suitable for harsh environmental conditions in industrial, laboratory, HVAC, manufacturing, and instrumentation systems. The device features a galvanic isolation voltage of 1kV DC, which effectively reduces switching noise and electromagnetic interference, enhancing the performance of sensitive electronic equipment.

The MEA1D2409SC provides a ripple and noise level as low as 20mV peak-to-peak, delivering stable and clean power ideal for precision electronics. Its compact size of 19.65mm x 6mm x 10.15mm and light weight of 2.3 grams enable integration into space-constrained designs without compromise on reliability. The converter is fully encapsulated with toroidal magnetics, negating the need for external heatsinks or capacitors such as electrolytic or tantalum types.

Designed to meet RoHS standards with UL94V-0 flame retardant package material, this DC-DC converter ensures compliance with international safety and environmental regulations. Applications benefiting from the MEA1 include dual rail power supplies, embedded systems, communication equipment, instrumentation, and other electronic systems requiring isolated dual output power.

Package contents include one SIP dual output DC-DC converter MEA1D2409SC. This product comes new and manufactured in China, providing a reliable power conversion solution for various industrial and electronic uses. Murata Power Solutions is recognized for high-quality power modules that deliver efficiency and durability.

The converter delivers a regulated 9V DC output voltage with a current capacity of 56mA. It features an SIP7 package type with an industry standard 7-pin configuration. Efficiency rating is up to 87.5%, with a maximum operating temperature of 85°C and minimum of -40°C.

The product offers galvanic isolation up to 1kV DC, suitable for noise-sensitive applications. It has a compact dimension of 19.65mm length, 6mm width, and 10.15mm depth, weighing only 2.3 grams. Ripple and noise are minimized to 20mV peak-to-peak for clean output power.

It complies with RoHS and uses UL94V-0 package material for safety and reliability. Typical applications include dual rail supplies in industrial, laboratory, and electronic systems. No external heatsink or capacitors are required due to encapsulated design with toroidal magnetics.

Provides high power density of 0.85W/cm3 and power sharing on output for flexible usage. Explore more Murata Power Solutions DC-DC converters and power supply components on EnvMart for your industrial and electronic project needs.
