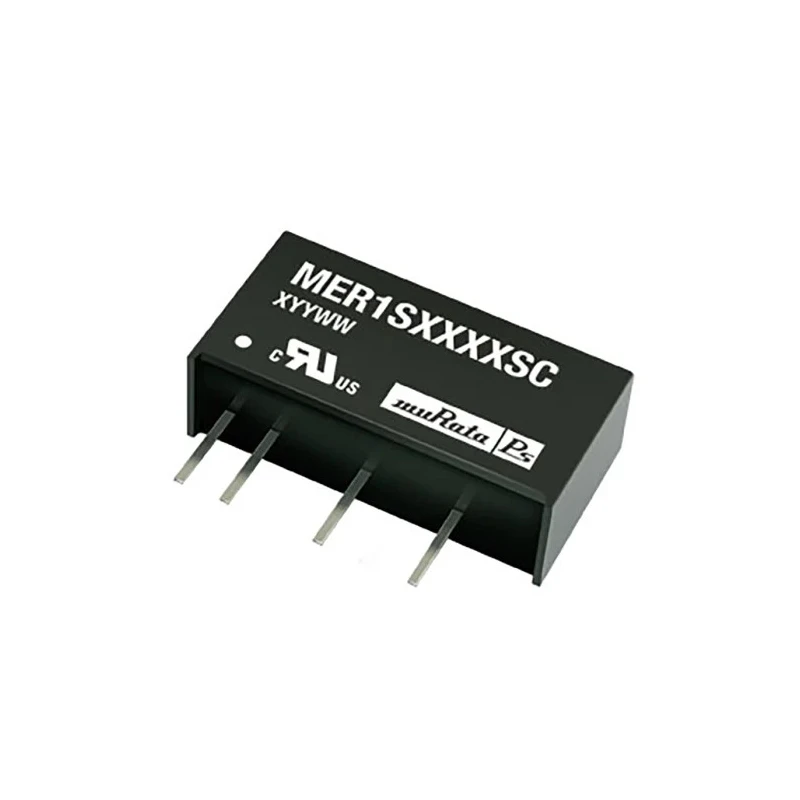

Murata Power Solutions SIP Single Output Unregulated Isolated DC/DC Converter 5V DC, 200 mA, 21.6V to 26.4V Input, 1W MER1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Efficiency | 84% |
| Length | 19.65mm |
| Model | MER1 |
| Depth | 10.15mm |
| Gross Weight | 2.25g |
| Width | 6.15mm |
| Mount Type | Through Hole |
| Series | MER1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 7391000h |
| Number of outputs | 1 |
| Ripple and Noise | 25mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 21.6V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 725-7067Brand: Murata Power SolutionsManufacturers Part No.: MER1S2405SC |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
Key Features
- Single output, unregulated isolated converter with 1 kV galvanic isolation to minimize switching noise.
- Operates efficiently at 84% with a wide temperature range from -40°C to 85°C.
- Compact SIP package measuring 19.65 mm length, 6.15 mm width, and 10.15 mm depth.
- Ensures high reliability with a mean time between failures (MTBF) of 7,391,000 hours.
- Provides low ripple and noise at 25 mV peak-to-peak for stable output voltage.
- Requires no heatsink or external components due to full encapsulation and toroidal magnetics.
- Compliant with RoHS standards and built with UL94V-0 flame retardant package material.
- Ideal for local supply power regulation in control systems and industrial electronics applications.
Product Description
Murata Power Solutions MER1S2405SC is a SIP7 single output DC/DC converter designed for efficient and reliable power conversion. It produces a stable 5V DC output at 200 mA from a DC input voltage range of 21.6V to 26.4V, with a maximum output power of 1W. This converter features galvanic isolation rated at 1 kV DC, helping reduce switching noise in sensitive electronic applications.
The compact SIP package measures 19.65 mm in length, 6.15 mm in width, and 10.15 mm in depth, with a through-hole mount type and 6 pins. Operating temperature range from -40°C to a maximum of 85°C ensures suitability in harsh industrial environments.
With an efficiency rating of 84% and low ripple noise of 25 mV peak-to-peak, this converter delivers consistent and clean power output. It is fully encapsulated with toroidal magnetics and uses UL94V-0 rated flame retardant package material, eliminating the need for external heatsinks or additional components.
This MER1 series converter has a MTBF of 7,391,000 hours, demonstrating high reliability for long-term industrial, laboratory, or control system use. It complies with RoHS directives, making it environmentally friendly.
Typical applications include local power supplies on control system boards, industrial electronics, and embedded systems requiring regulated and isolated DC voltages. Single output, unregulated isolated converter with 1 kV galvanic isolation to minimize switching noise.
Operates efficiently at 84% with a wide temperature range from -40°C to 85°C. Compact SIP package measuring 19.65 mm length, 6.15 mm width, and 10.15 mm depth. Ensures high reliability with a mean time between failures (MTBF) of 7,391,000 hours.
Provides low ripple and noise at 25 mV peak-to-peak for stable output voltage. Requires no heatsink or external components due to full encapsulation and toroidal magnetics. Compliant with RoHS standards and built with UL94V-0 flame retardant package material.
Ideal for local supply power regulation in control systems and industrial electronics applications. Explore the Murata Power Solutions range and related power supply products on EnvMart for your industrial and electronic component needs.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 21.6V to 26.4V DC.
It provides a stable output voltage of 5V DC at a maximum output current of 200 mA.
The efficiency rating of this converter is 84%.
The SIP package measures 19.65 mm in length, 6.15 mm in width, and 10.15 mm in depth.
This unit features an isolation voltage of 1 kV DC.
The operating temperature range is from -40°C to 85°C.
The output ripple and noise is 25 mV peak-to-peak.
It uses a through-hole mount type with 6 pins.
The mean time between failures (MTBF) is 7,391,000 hours.
Yes, it is compliant with RoHS standards.
It is suitable for local power supplies in control systems and industrial electronics applications.
It is built with UL94V-0 flame retardant package material and is fully encapsulated.
