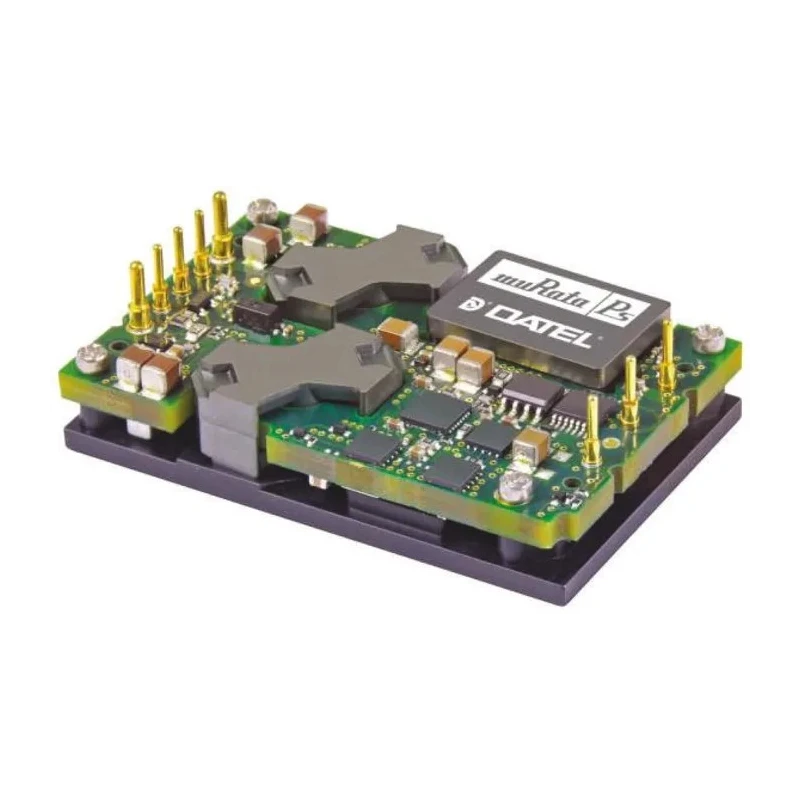

Murata Power Solutions UQQ DC/DC Converter, 5V dc, 17 A, 36V dc Input, 9V Input, 85 W Maximum Output Power UQQ-5/17-Q12PB-C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Efficiency | 90.5% |
| Length | 36.8mm |
| Model | UQQ-5/17-Q12PB-C |
| Depth | 10.9mm |
| Gross Weight | 63.5g |
| Width | 56.4mm |
| Mount Type | PCB |
| Series | UQQ |
| Maximum Operating Temperature | +105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3360928h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 85W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 689-5671Brand: Murata Power SolutionsManufacturers Part No.: UQQ-5/17-Q12PB-C |
| Number of Pins | 9 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 17A |
| Isolation Voltage | 2kV dc |
Key Features
- Wide input voltage range from 9V to 36V DC for versatile applications.
- High efficiency of 90.5% ensuring minimal power loss.
- Compact quarter-brick package measuring 36.8mm length x 56.4mm width x 10.9mm depth.
- High isolation voltage rated at 2kV DC for safety and noise reduction.
- Operating temperature range from -40°C to +105°C suitable for harsh environments.
- Output ripple and noise limited to 75mV peak-to-peak for clean power delivery.
- Single output with DIP 9-pin package for easy PCB integration.
- Features on/off control, trim, and sense functions for versatile control.
Product Description
Murata Power Solutions UQQ-5/17-Q12PB-C is a high-performance DC/DC converter designed to provide a regulated 5V DC output at 17A current, ideal for powering electronic circuits requiring stable voltage. This product supports a broad input voltage range from 9V to 36V DC, making it suitable for various industrial, laboratory, and commercial use cases where robust DC power conversion is required.
The converter is housed in a low-profile industry-standard quarter-brick DIP package (9 pins), with compact dimensions of 36.8mm length, 56.4mm width, and 10.9mm depth. It provides excellent electrical isolation of 2kV DC between input and output, ensuring operational safety and reducing electrical noise interference.
With an efficiency rating of 90.5%, this module minimizes energy loss during conversion, contributing to reduced heat generation. It operates reliably within a temperature range from -40°C to +105°C, fitting for demanding ambient conditions and extended use.
Additional features include output overvoltage protection, on/off control polarity options, trim and sense functions, and comprehensive I/O and thermal shutdown protections for enhanced safety and adjustable control.
Murata's UQQ series is recognized for rugged reliability with an MTBF of 3,360,928 hours, ensuring dependable operation over long service life in applications such as industrial automation, DC power supplies, instrumentation, and embedded systems requiring compact, efficient DC/DC conversion.
Wide 4:1 input voltage range for flexible DC input sources. Compact, industry-standard quarter-brick form factor. Fully isolated output with 2kV DC isolation voltage. High efficiency of over 90% for energy savings. Output ripple and noise limited to 75mV peak-to-peak.
Thermal and input/output electrical protection features. PCB mount DIP package with 9 pins for easy soldering. Wide operating temperature range from -40 to +105°C. Long MTBF for industrial reliability.
This DC/DC converter suits applications in electronics manufacturing, communications equipment, power supply systems, and other professional environments requiring reliable 5V power conversion from variable DC sources.
Explore more DC/DC converters and power solutions in the Electronics & Electricals category at EnvMart for optimized power supply systems.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 85W.
It supports a wide input voltage range from 9V to 36V DC.
The efficiency rating is 90.5%, ensuring minimal power loss during operation.
This unit has dimensions of 36.8mm in length, 56.4mm in width, and 10.9mm in depth.
It has an isolation voltage rated at 2kV DC, providing safety and noise reduction.
The operating temperature range is from -40°C to +105°C, suitable for harsh environments.
This converter has a single output.
The output ripple and noise is limited to 75mV peak-to-peak.
It is designed for PCB mounting with a DIP package.
It includes features such as on/off control, trim, and sense functions for versatile control.
The mean time between failures (MTBF) is 3,360,928 hours, indicating long service life.
It complies with RoHS standards.
