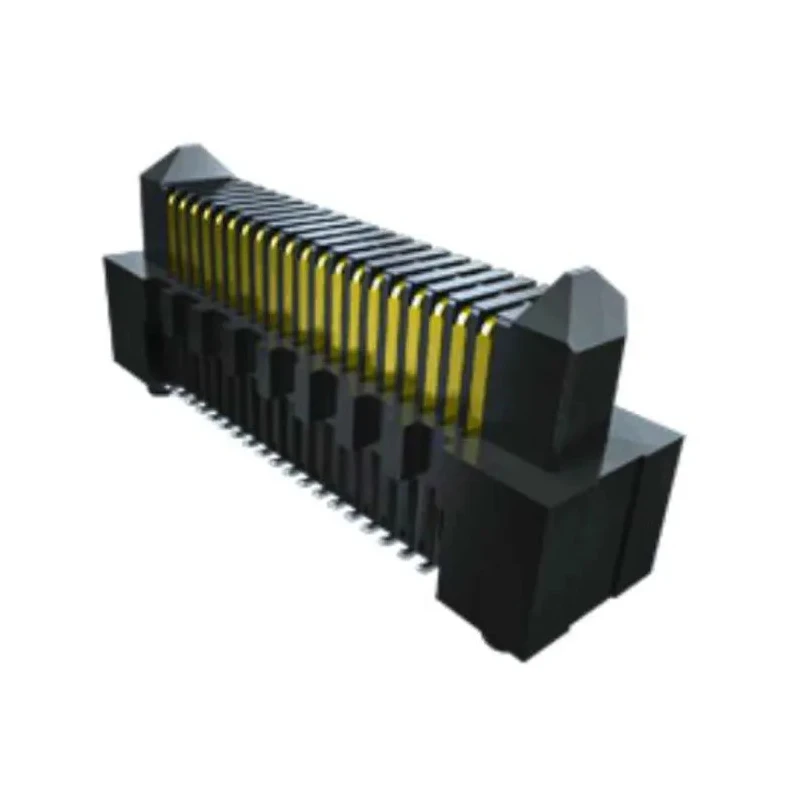

Samtec Series Right Angle Surface PCB Header, 100 Contacts, 0.8 mm Pitch, 2 Row, Shrouded, Board-to-Board, Gold-Plated ERM8

Free Delivery in India | Lowest Global Shipping Charges

Samtec Series Right Angle Surface PCB Header, 100 Contacts, 0.8 mm Pitch, 2 Row, Shrouded, Board-to-Board, Gold-Plated ERM8

Name: Samtec Series Right Angle Surface PCB Header, 100 Contacts, 0.8 mm Pitch, 2 Row, Shrouded, Board-to-Board, Gold-Plated ERM8
Brand: Samtec
SKU: 84448
Price: 19.24 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	318V
Brand	Samtec
Orientation	Right Angle
Current	1.4A
Model	ERM8
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ERM8
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features 100 contacts arranged in 2 rows for reliable signal transmission.
0.8 mm pitch between contacts allows for compact PCB integration.
Right angle surface mount design facilitates efficient board-to-board connections.
Gold-plated phosphor bronze contacts offer enhanced durability and conductivity.
Operates at up to 318V and 1.4A, suitable for demanding electronic environments.
Shrouded housing made from liquid crystal polymer ensures stability and protection.
Wide operating temperature range from -55°C to 125°C provides versatility for industrial and electronic use.
Solder termination type ensures secure installation on PCBs.

Product Description

The Samtec ERM8-050-01-S-D-RA-K-TR is a high-quality right angle surface PCB header engineered for robust and high-speed board-to-board connectivity. Designed specifically for dense electronic systems, it features 100 contacts in a dual row configuration with a fine 0.8 mm pitch, ensuring efficient signal distribution and reliable performance.

This header utilizes gold-plated phosphor bronze contacts to maximize conductivity and withstand frequent mating cycles. Its shrouded housing, constructed from liquid crystal polymer, offers stability and mechanical protection, making it well-suited for industrial, commercial, and advanced electronic applications.

The right angle orientation and surface mount design allow for optimized PCB layouts, especially in space-constrained assemblies. Supporting a maximum operating voltage of 318V and current up to 1.4A, this product meets the requirements for many advanced electronic systems including control boards, signal distribution panels, and interface modules.

Operational reliability is assured across a wide temperature range of -55°C to 125°C, enabling deployment in environments requiring thermal resilience. The solder termination type provides secure mounting and easy integration with modern PCB designs.

With a board-to-board connector system, this header is ideal for signal transmission in instrumentation, automation, computing, and communications equipment. Typical industrial and laboratory use cases include embedded systems, measurement instruments, and high-speed digital device interconnects.

Key features include shrouded construction for robust mating, high-density contact arrangement, precision contact surface for increased wear life, and compliance with demanding application cycles. The ERM8 series leverages Edge Rate contact technology for superior signal integrity and long-term durability.

Browse more PCB Headers and Samtec connector solutions in the Electronics & Electricals categories on EnvMart for advanced board-level interconnect applications.
