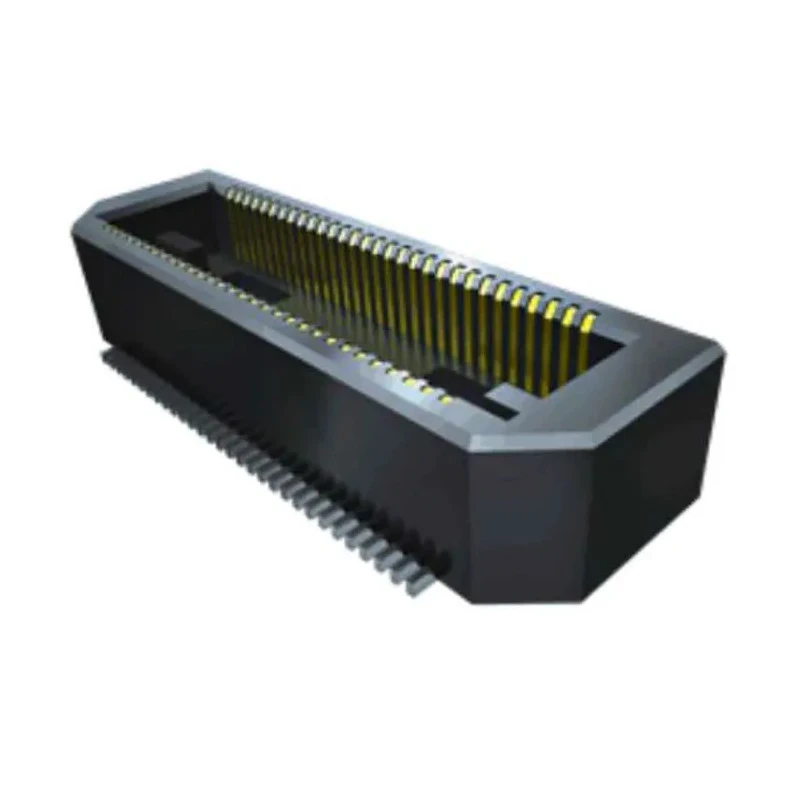

Samtec Vertical Surface PCB Socket, 240 Contacts, 2 Row, 0.5 mm Pitch, Solder, BTH-120-01-L-D-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec Vertical Surface PCB Socket, 240 Contacts, 2 Row, 0.5 mm Pitch, Solder, BTH-120-01-L-D-A

Name: Samtec Vertical Surface PCB Socket, 240 Contacts, 2 Row, 0.5 mm Pitch, Solder, BTH-120-01-L-D-A
Brand: Samtec
SKU: 84440
Price: 9.22 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	175V
Brand	Samtec
Orientation	Vertical
Current	2A
Model	BTH-120-01-L-D-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	BTH-120-01-L-D-A
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold or Tin
Number of Contacts	240
Contact Gender	Male
Connector System	Board-to-Board

Key Features

Features 240 contact positions for high-density board connections.
Comprises two rows for efficient signal distribution.
Offers a 0.5 mm pitch for compact board-to-board interface.
Surface mount configuration ensures secure PCB attachment.
Vertical orientation suitable for space-constrained assemblies.
Supports a maximum current rating of 2A per contact.
Uses liquid crystal polymer for housing, ensuring robust durability.
Gold or tin-plated phosphor bronze contacts for reliable conductivity.

Product Description

Samtec BTH-120-01-L-D-A is a high-performance vertical surface PCB socket designed for compact and reliable board-to-board connections in electronic circuits. This model provides 240 contacts arranged in two rows, offering exceptional signal density and distribution for advanced applications.

The socket utilizes a fine 0.5 mm pitch, enabling minimized PCB space consumption without compromising connectivity. Its surface mount design facilitates robust attachment to the circuit board, while the vertical orientation is ideal for assemblies where horizontal spacing is limited or stacking is required.

Each contact supports up to 2A of current, making it suitable for a range of signal and power transmission tasks. The housing is constructed from liquid crystal polymer, chosen for its stability and resistance to harsh environments, while the contact material is phosphor bronze, plated in gold or tin to maximize electrical performance and resist corrosion.

The product operates within a broad temperature range of -55°C to 125°C, accommodating demanding industrial, commercial, and laboratory electronics. Board guides and surface-mount shroud contacts ensure accurate installation and reduce risk of misalignment.

Applications include embedded systems, industrial automation, instrumentation, and other environments requiring reliable, high-density PCB interconnects. The PCB socket's compliance with surface mount soldering standards and its robust materials offer long service life in various use cases.

Features 240 contact positions for high-density board connections. Comprises two rows for efficient signal distribution. Offers a 0.5 mm pitch for compact board-to-board interface. Surface mount configuration ensures secure PCB attachment.

Vertical orientation suitable for space-constrained assemblies. Supports a maximum current rating of 2A per contact. Uses liquid crystal polymer for housing, ensuring robust durability. Gold or tin-plated phosphor bronze contacts for reliable conductivity.

Wide operating temperature range from -55°C to 125°C.

Explore Samtec PCB Sockets and accessories for reliable board-to-board connectivity in electronics, automation, and instrumentation. Browse our full Electronics & Electricals category for professional interconnect solutions.
