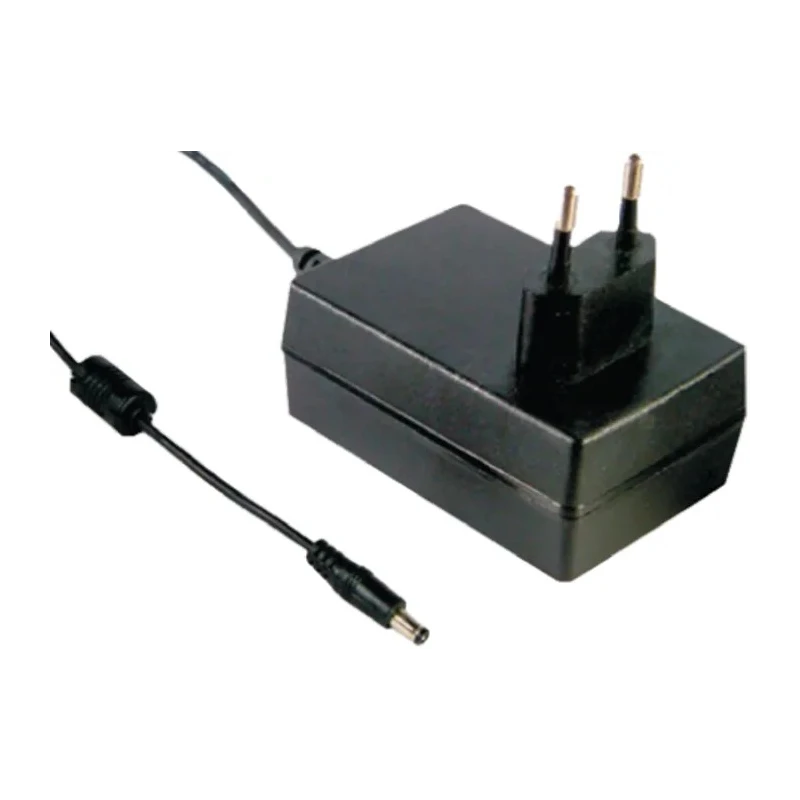

MEAN WELL AC/DC Adapter Type C Plug 264V AC Input, 4A Maximum Output Current, 9V DC Output GSM36E09-P1J

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL AC/DC Adapter Type C Plug 264V AC Input, 4A Maximum Output Current, 9V DC Output GSM36E09-P1J

Name: MEAN WELL AC/DC Adapter Type C Plug 264V AC Input, 4A Maximum Output Current, 9V DC Output GSM36E09-P1J
Brand: MEAN WELL
SKU: 106245



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	GSM36E09-P1J
Cable Length	1.2m
Overall Length	54mm
Series	GSM36
Overall Width	54mm
Maximum Operating Temperature	60°C
Plug Type	Type C
Maximum Input Voltage	264V ac
Protections	Short circuit / Overload / Over voltage
Maximum Output Current	4A
Standards/Approvals	UL 60950-1, IEC 60950-1, CE
Minimum Input Voltage	100V ac
Overall Depth	33mm
Minimum Output Voltage	9V dc
Input Connector Type	EU Plug

Key Features

Equipped with a Type C plug suitable for EU power outlets.
Features a 1.2 meter cable length for flexible installation.
Compact dimensions of 54mm length, 54mm width, and 33mm depth for easy placement.
Designed to operate safely up to 60°C maximum temperature.
Compliance with standards UL 60950-1, IEC 60950-1, and CE certification.
Includes protections for short circuit, overload, and over voltage conditions.
Universal AC input voltage range from 100V to 264V AC.
Part of the GSM36 series optimized for medical and energy-saving applications.

Product Description

MEAN WELL GSM36E09-P1J AC/DC Adapter Type C Plug features a universal AC input of 100 to 264V AC and delivers a stable 9V DC output at a maximum current of 4A. It is designed for use in industrial, medical, and commercial electronic applications requiring reliable power supplies.

This adapter includes a 1.2 meter cable and compact housing with dimensions of 54mm by 54mm by 33mm, making it suitable for space-constrained environments. Its Type C plug is compatible with EU power sockets.

The GSM36 series adapters comply with stringent international standards such as UL 60950-1, IEC 60950-1, and CE. They feature low leakage current and low no-load power consumption, making them safe and energy-efficient for medical equipment requiring patient contact. The unit is housed in UL 94V-0 rated plastic for enhanced safety.

Protection features include short circuit, overload, and over voltage protections to ensure durability and reliable operation. The adapter can operate up to a maximum temperature of 60°C.

Applications include medical devices, home healthcare equipment, and any electrical systems requiring efficient and safe power conversion. The product is engineered for energy saving compliant with ErP step 2 and EISA 2007 regulations.

Equipped with a Type C plug suitable for EU outlets. Supports universal input from 100V to 264V AC. Maximum output current rating of 4A at 9V DC output. Compact and durable housing with UL 94V-0 rated plastic. Includes multiple protections: short circuit, overload, and over voltage.

Complies with international medical safety standards. Low leakage current and no-load power consumption for medical use. Ideal for industrial, laboratory, medical, and commercial applications. This MEAN WELL GSM36E09-P1J AC/DC Adapter is a reliable choice available in the EnvMart electronics category for power supplies and AC/DC Adapters.
