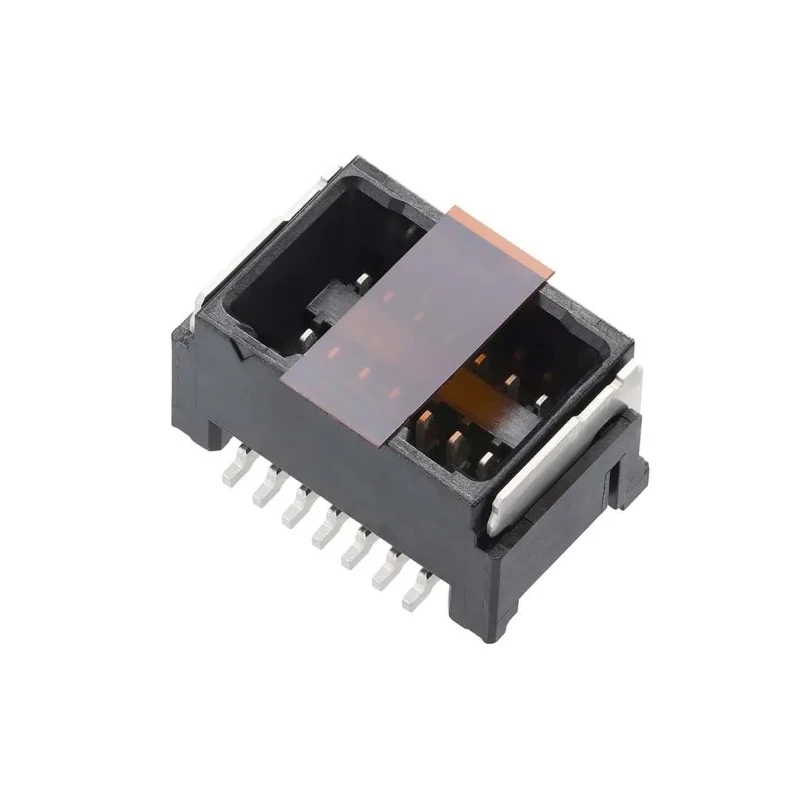

Molex Micro-Lock Plus Series Vertical Surface PCB Header, 10 Contacts, 1.25 mm Pitch, 2 Row, Shrouded, Polyamide 2077601081

The Molex 2077601081 Micro-Lock Plus Series PCB Header is a surface-mount, vertical orientation connector designed to meet the demanding requirements of modern electronic assemblies. With a 1.25 mm contact pitch and a two-row configuration providing 10 contact positions, this header is ideal for compact wire-to-board connections in space-constrained designs.

Engineered with robust polyamide housing, the device offers excellent mechanical strength and enduring electrical insulation. The shrouded design protects the contacts from accidental insertion errors and mechanical stress, ensuring a safe and repeatable mating process. Its compliant construction and precise contact geometry accommodate up to 2A of current at a maximum voltage of 50Vrms, offering strong performance in both signal and low-power applications.

The header is outfitted with brass contacts, finished in tin bismuth plating to ensure long-lasting conductivity and resistance to corrosion. This model is further enhanced by robust metal solder tabs and walls added specifically to protect the positive lock from exposure to potting materials. These features are crucial in environments where environmental protection and long-term reliability are key factors.

Its surface mount termination style simplifies automated assembly and increases process efficiency in high-volume manufacturing lines. The operational temperature range stretches from -40°C to 105°C, making this header suitable for a wide range of industrial, automotive, and commercial electronics. The Micro-Lock Plus connector system is especially well-suited to wire-to-board connections in devices where potting material is required to safeguard both contact and latch areas.

This product finds extensive use in applications such as industrial control panels, automotive electronics, appliances, instrumentation, and any equipment requiring compact, environmentally protected connections. The certified design ensures consistent mating and unmating, preventing accidental disengagement while enabling easy assembly and maintenance.

Choose Molex Micro-Lock Plus Series headers for reliable, space-saving, and robust PCB connectivity across various demanding environments. Browse more Molex electronic connectors and PCB Headers in the EnvMart catalog to meet all your electronic and industrial interface requirements.
