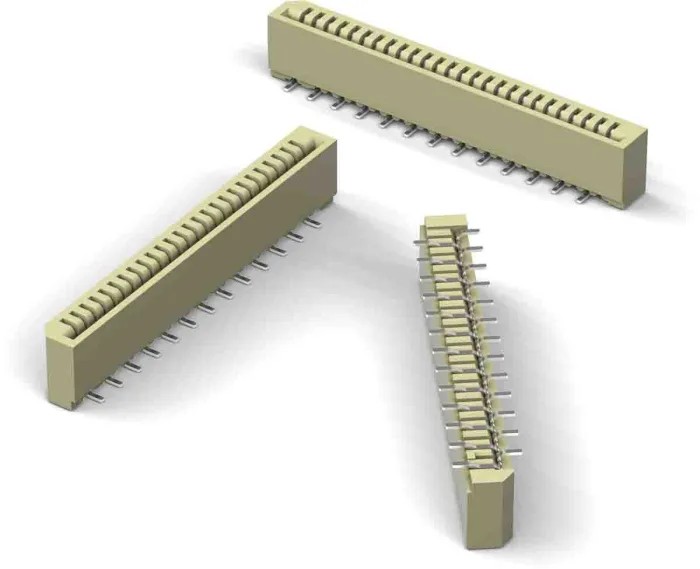

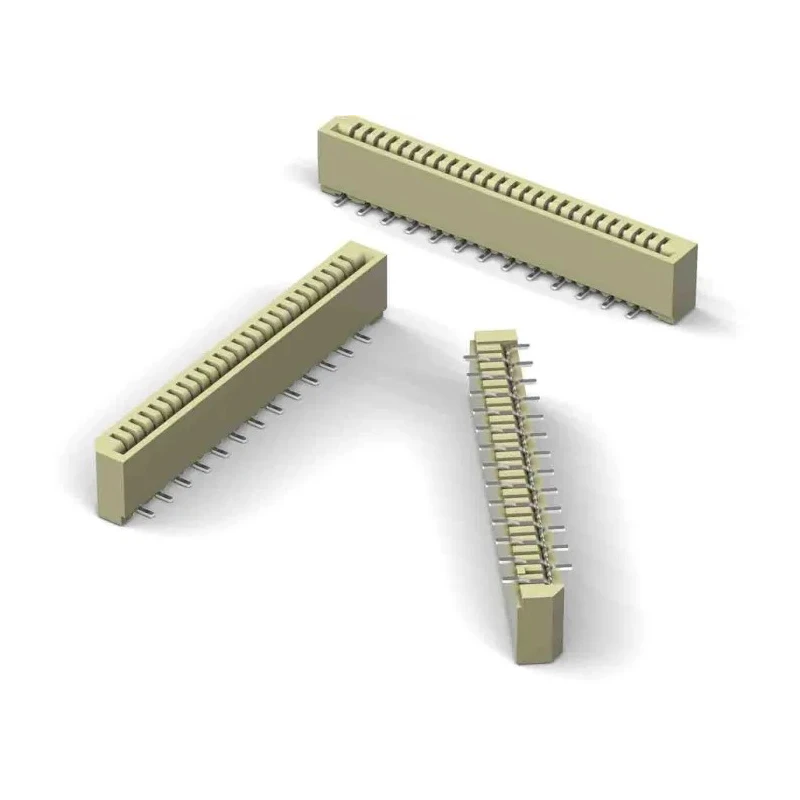

Wurth Elektronik WR-FPC Series PCB Header, Horizontal, 20 Contacts, 1 mm Pitch, Surface Mount, Shrouded 686120188622
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Contact Type | Stamped |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 20 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Horizontal surface mount PCB header for efficient wire-to-board connections.
- Supports 20 contacts with a consistent 1 mm pitch for compact layouts.
- Shrouded single row configuration improves alignment and mechanical protection.
- Phosphor bronze contacts with tin over nickel plating ensure excellent conductivity.
- Durable liquid crystal polymer housing withstands high temperatures and reflow processes.
- Rated for 1 A maximum current and 125 V operating voltage.
- Operates effectively within -25°C to 85°C temperature range.
- Enables secure solder termination for robust PCB integration.
Product Description
The Wurth Elektronik WR-FPC Series PCB Header, model 686120188622, is a horizontal surface mount, shrouded connector that delivers reliable wire-to-board connections in electronic devices. This header is specifically engineered for applications demanding dense interconnections, precision alignment, and secure mechanical retention.
With a 20-contact single-row configuration and a compact 1 mm pitch, this component is ideal for use where space constraints and signal integrity are critical. The shrouded design provides protection and prevents accidental misalignment during mating operations, helping to ensure consistent electrical performance. Its horizontal orientation simplifies exact placement during automated PCB assembly processes.
The contacts are constructed from high-grade phosphor bronze, which provides excellent spring properties and wear resistance. Each contact is plated with a layer of tin over nickel, further enhancing conductivity and offering long-term protection from corrosion in challenging conditions. The housing is made from liquid crystal polymer (LCP), a high-performance material prized for its outstanding thermal stability and resistance to solder reflow temperatures, making the header suitable for surface mount technology (SMT) processes.
This header supports solder termination, ensuring a secure and vibration-resistant connection between the PCB and the interfacing component. It is rated for up to 1 A and 125 V (AC or DC), making it compatible with a wide range of digital and analog circuits. The component covers an operational temperature spectrum from -25°C to 85°C, suitable for both indoor and demanding industrial or laboratory environments.
The Wurth Elektronik 686120188622 header sees broad use in industrial automation, embedded electronics, instrumentation, consumer electronics, telecommunications devices, and anywhere high-density, reliable PCB connections are required. When integrated as part of a larger electronic assembly, it offers simple yet robust connectivity while maintaining the highest safety and performance standards.
Explore more WR-FPC series and PCB Header solutions from Wurth Elektronik in the Electronics Components section on EnvMart to find compatible connectors tailored for your exact requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 1 A.
It has an operating voltage of 125 V, suitable for both AC and DC applications.
The contacts are made from phosphor bronze with a tin over nickel plating, and the housing is constructed from liquid crystal polymer (LCP).
The header features a consistent pitch of 1 mm, allowing for compact layouts.
It operates effectively within a temperature range of -25°C to 85°C.
This model supports 20 contacts in a single-row configuration.
It uses solder termination, ensuring a secure connection between the PCB and interfacing components.
Yes, it is designed for surface mount applications, making it compatible with automated PCB assembly processes.
The Wurth Elektronik WR-FPC Series PCB header is designed in a horizontal orientation.
It utilizes a wire-to-board connector system, facilitating efficient wire connections to PCBs.
The shrouded design improves alignment and provides mechanical protection during mating operations.
The country of origin for this model is China.
