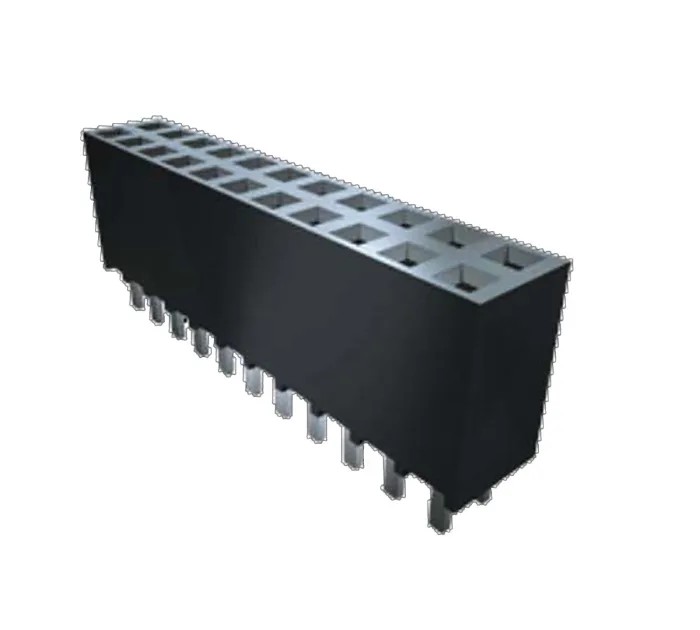

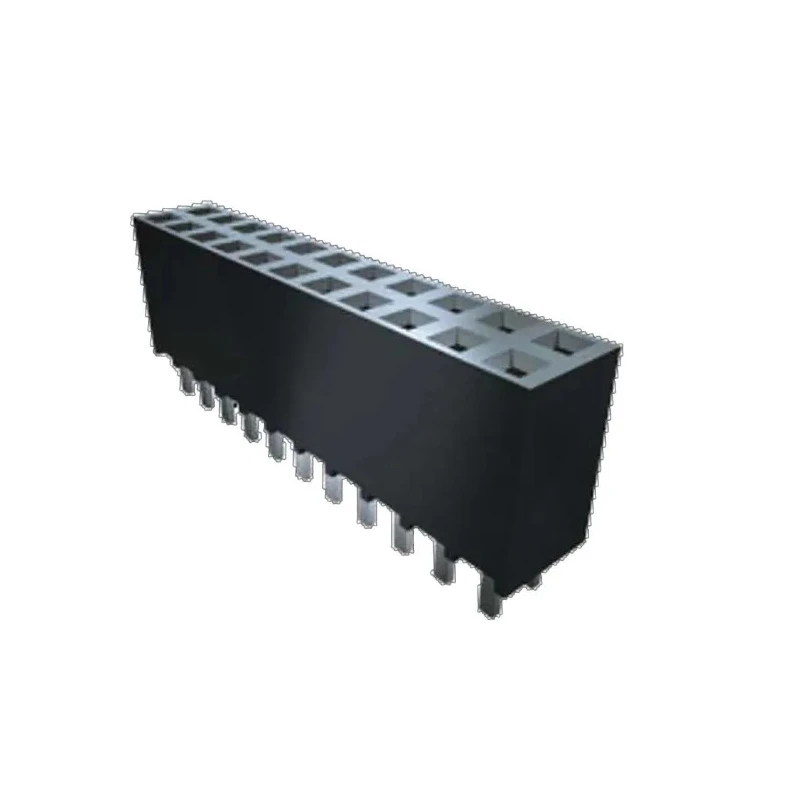

Samtec SSW Series Straight Through Hole PCB Socket, 38 Contacts, 2 Rows, 2.54 mm Pitch, Solder Tail, 465V AC SSW-119-01-G-D

The Samtec SSW-119-01-G-D is a high-performance straight through-hole PCB socket featuring 38 female contacts aligned in two rows. Engineered for board-to-board connector applications, its 2.54 mm pitch adheres to common PCB design standards for precise integration across electronic devices and automation systems.

This socket utilizes solder tail termination, guaranteeing reliable and robust electrical connections during assembly. Its housing is constructed from liquid crystal polymer, offering superior durability and resistance to thermal stress, making it suitable for operational environments ranging from -55°C up to 125°C.

The SSW-119-01-G-D supports an AC voltage rating of up to 465 V and a maximum current of 4.7 A, allowing for safe and effective operation in both industrial and commercial applications. Its gold or tin over nickel contact plating assures prolonged conductivity and combats corrosion, facilitating consistent signal and power transmission.

With its female contact gender, straight orientation, and through-hole mount type, this connector enables secure installation and versatility in PCB layouts. It is part of the SSW Series and is compatible with related connector components, supporting modular and scalable designs in complex electronics.

Applications include electronic devices, automation assemblies, laboratory apparatus, manufacturing equipment, and other systems requiring stable board-to-board connections. Its robust construction and electrical capabilities make it ideal for high-traffic, demanding environments.

Straight through-hole PCB socket designed for board-to-board applications. Provides 38 female contacts in a 2-row configuration for enhanced connectivity. Features a precise 2.54 mm pitch for standard PCB layouts. Solder tail termination ensures robust electrical connections.

Rated for 465 V AC and 4.7 A current for reliable performance in demanding circuits. Housing made from liquid crystal polymer for high durability and thermal stability. Gold or tin over nickel contact plating delivers excellent conductivity and corrosion resistance.

Wide operating temperature range from -55°C to 125°C suits industrial environments. Compatible with other SSW series connectors for seamless integration. Explore more in PCB Socket category and discover Samtec’s range of professional-grade board-to-board connectors on EnvMart.
