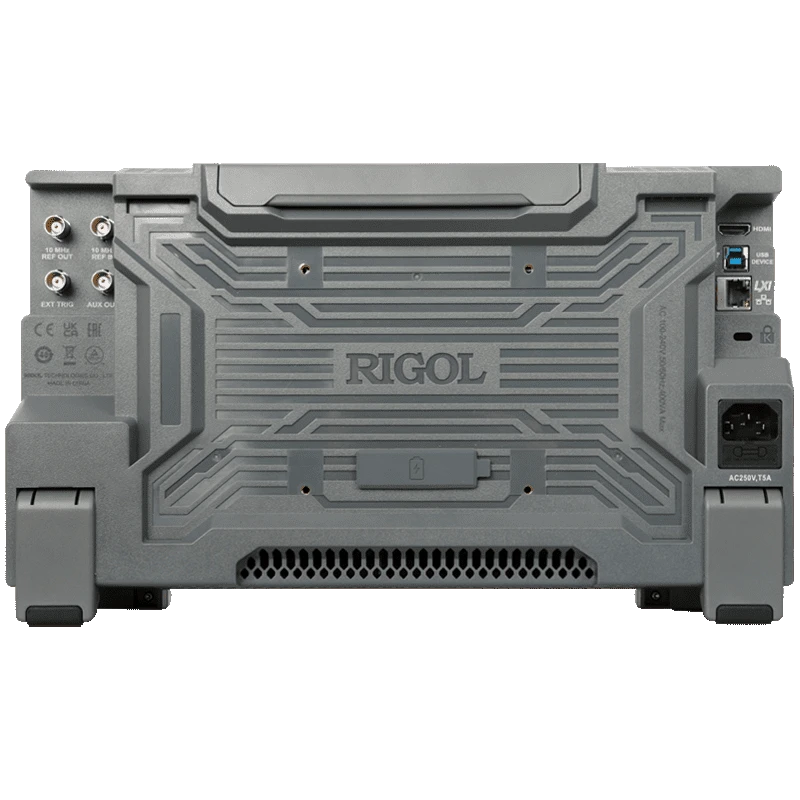

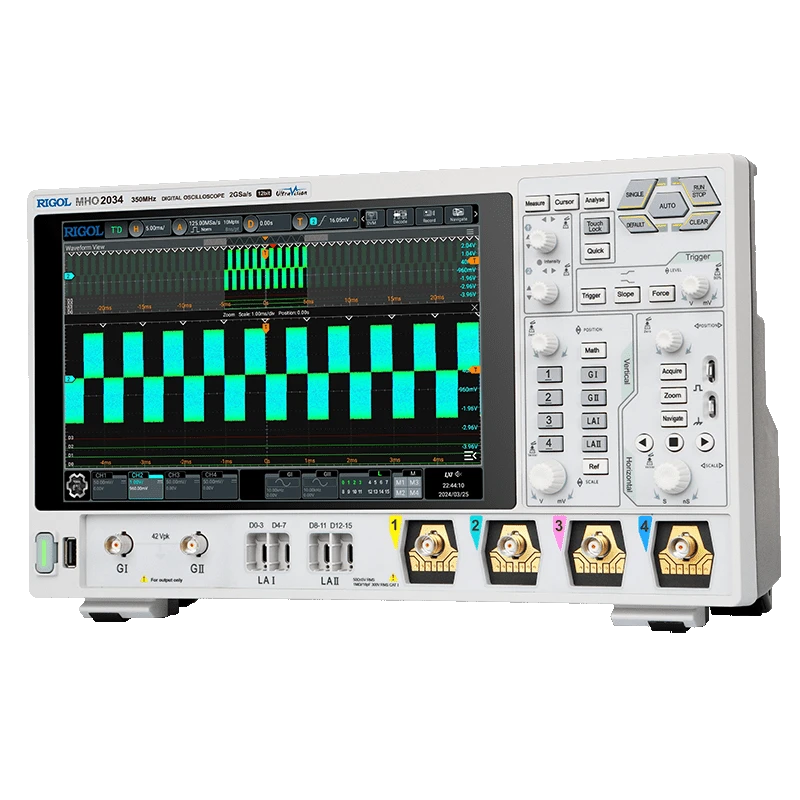

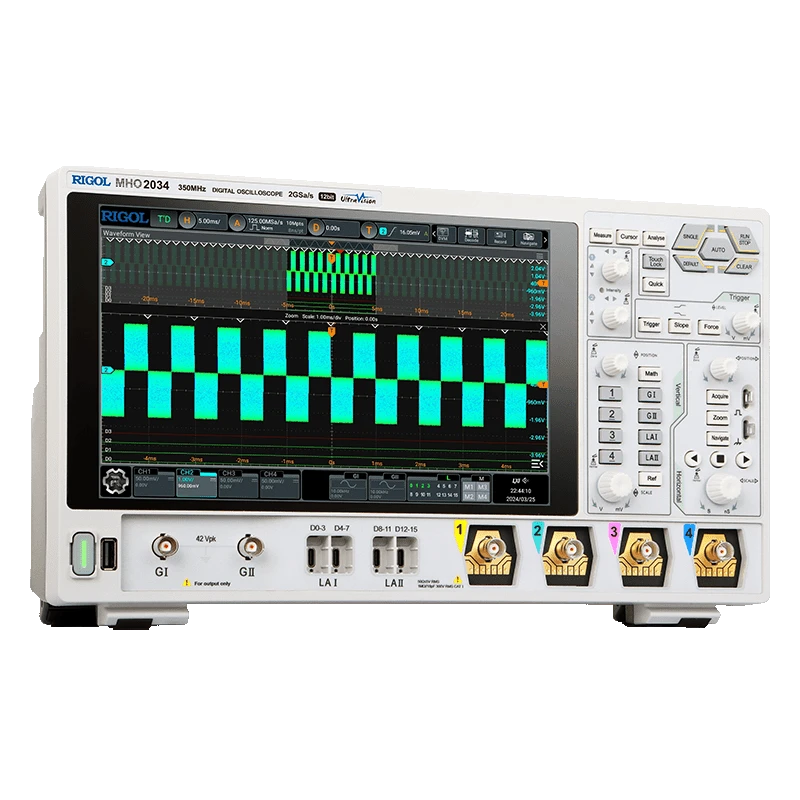

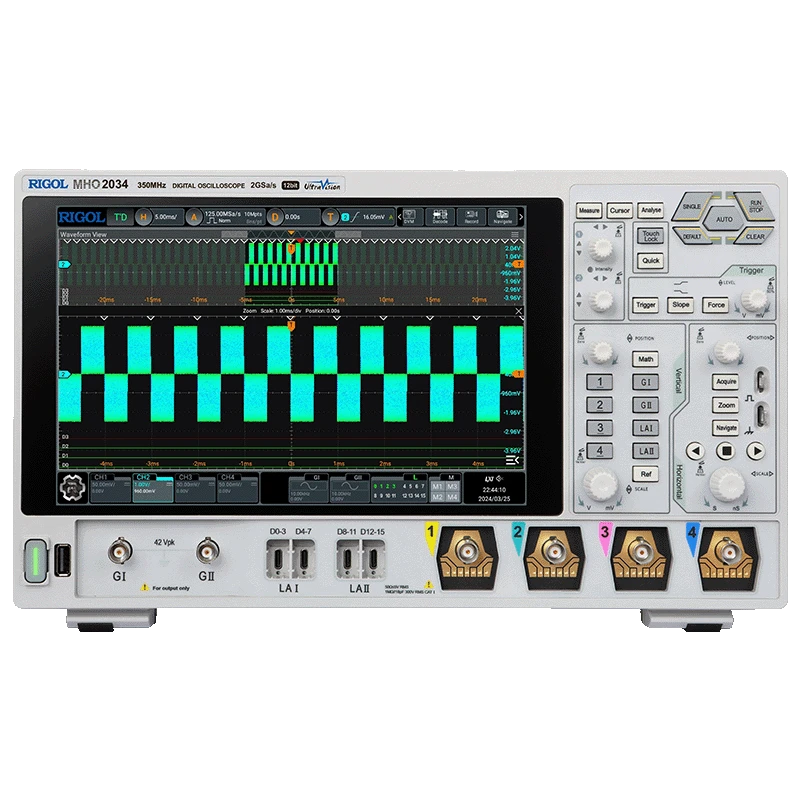

RIGOL High-Resolution Digital Oscilloscope MHO2000 Series
Model
Analog Bandwidth
Max Sample Rate
Analog Channels
Max Memory Depth
Specifications
| Country of Origin | India |
|---|---|
| Display | 10.1-inch, 1280x800 HD capacitive multi-touch |
| Brand | Rigol |
| Power Supply | AC 100 V to 240 V, 50 Hz to 60 Hz |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 335 x 235 x 154 mm |
| Memory | 128 GB internal storage |
| Connectivity | USB 3.0, LAN, HDMI |
| Model | MHO2000 Series |
| Operating System | Android |
| Weight | 5.3 Kg |
| Bandwidth | Up to 350 MHz |
| Sampling rate | Up to 2 GSa/s |
| Max Power | 400 VA |
| Input Impedance | 1 MΩ ±1% / 50 Ω ±1% |
| Waveform Capture Rate | 1,000,000 wfms/s (record) |
| Vertical Resolution | 12-bit (up to 16-bit in High Resolution mode) |
| Memory Depth | 500 Mpts (half-channel), 250 Mpts (full-channel) |
| Bandwidth Limit | 20 MHz / 250 MHz / Full |
| Product Condition | New |
| MPN | MHO2000 Series |
| Analog Channels | 4 + 1 EXT Trigger |
| Vertical Sensitivity (1 MΩ) | 200 μV/div to 10 V/div |
| Vertical Sensitivity (50 Ω) | 200 μV/div to 1 V/div |
| Recommended Calibration Interval | 18 months |
| Rise Time (typical) | As low as 1.4 ns |
| Input Capacitance | 19 ±3 pF |
| ESD Protection | ±8 kV |
| Maximum Input Voltage (1 MΩ) | CAT I 300 Vrms |
| Standard Digital Channels | 16 (D0–D15) |
| Arbitrary/Function Generator | 2 ch (optional), 50 MHz, 1 GSa/s |
Key Features
Rigol MHO2000 Series high-resolution 4-channel digital oscilloscope with up to 350 MHz bandwidth, 2 GSa/s sampling, 12-bit resolution, and 10.1-inch touch display delivers superior signal analysis for advanced electronic measurements.
- Equipped with 4 analog channels and 1 external trigger for multi-signal monitoring.
- Provides up to 350 MHz bandwidth and 2 GSa/s real-time sampling for high-speed signal capture.
- Features 12-bit vertical resolution, extendable to 16-bit for high resolution mode for precise measurements.
- Comes with a large 10.1-inch 1280x800 capacitive multi-touch display for enhanced usability.
- Supports up to 500 Mpts memory depth and high waveform capture rates up to 1,000,000 wfms/s.
- Includes advanced trigger types, serial decoding, and optional 2-channel 50 MHz arbitrary/function generator.
- Standard 16 digital channels (with logic probe) and USB, LAN, HDMI connectivity.
- Android operating system with 128 GB internal storage for flexible data management.
- Ideal for embedded design, power electronics, automotive testing, and precise signal analysis.
- Integrated battery pack and robust portability for on-site and laboratory applications.
Product Description
Rigol MHO2000 Series high-resolution digital oscilloscope features a 4-channel analog system with bandwidth up to 350 MHz and 2 GSa/s real-time sampling, making it a powerful instrument for advanced signal analysis in laboratory and industrial applications. With 12-bit vertical resolution (expandable to 16-bit in high-resolution mode), it captures fine signal details, while 500 Mpts of memory and up to 1,000,000 wfms/s capture rate ensure you do not miss critical events. The 10.1-inch HD capacitive touch display enhances viewing and operation efficiency.
- 4 analog channels plus 1 external trigger support.
- Bandwidth up to 350 MHz, rise time as low as 1.4 ns.
- 2 GSa/s maximum real-time sampling rate and 500 Mpts memory depth.
- 12-bit/16-bit vertical resolution for exceptional detail and measurement accuracy.
- Standard 16 digital channels (logic analyzer functionality) and advanced triggering including I2C, SPI, CAN, UART, and more.
- Extensive measurements and analysis including FFT, histogram, pass/fail testing, and waveform search.
- Optional 2-channel 50 MHz arbitrary/function generator for embedded test flexibility.
- Robust Android OS, 128 GB internal storage, plus USB, LAN, HDMI outputs.
- Battery pack support allows extended remote or field operation.
- Safety: ±8 kV ESD protection, CAT I 300 V analog input rating (1 MΩ), and max 5 Vrms (50 Ω).
Applications include R&D, manufacturing, embedded system debugging, automotive electronics, industrial automation, and education. The Rigol MHO2000 Series is engineered for high fidelity measurement, advanced analysis, and modern workflow integration.
Explore more high-performance measurement solutions and accessories by browsing Rigol and the Oscilloscope category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol MHO2000 Series oscilloscope has a bandwidth of up to 350 MHz, allowing for high-speed signal capture.
This oscilloscope supports 4 analog channels plus 1 external trigger, making it suitable for multi-signal monitoring.
The Rigol MHO2000 Series oscilloscope offers a maximum sampling rate of up to 2 GSa/s.
Yes, the Rigol MHO2000 Series is ideal for automotive testing, as well as embedded design and power electronics applications.
The oscilloscope features a vertical resolution of 12-bit, which can be extended to 16-bit in high-resolution mode for precise measurements.
The Rigol MHO2000 Series oscilloscope comes with 128 GB of internal storage for flexible data management.
It features a 10.1-inch HD capacitive multi-touch display with a resolution of 1280x800 for enhanced usability.
The oscilloscope weighs approximately 5.3 kg, making it portable for both laboratory and on-site applications.
Yes, it includes advanced trigger types such as I2C, SPI, CAN, and UART for versatile signal analysis.
The recommended calibration interval for the Rigol MHO2000 Series oscilloscope is every 18 months to ensure accuracy.
