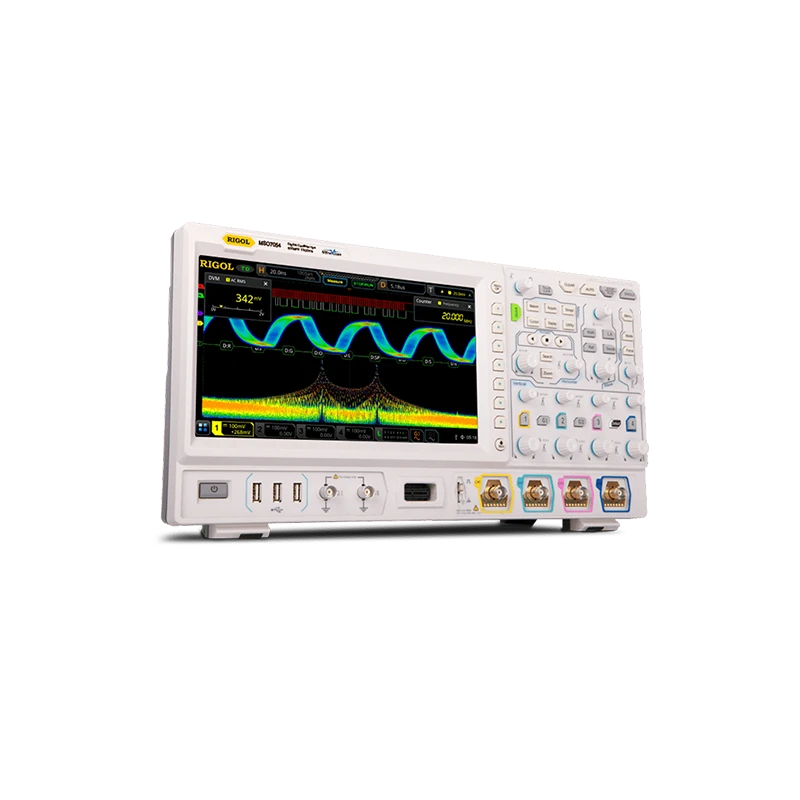

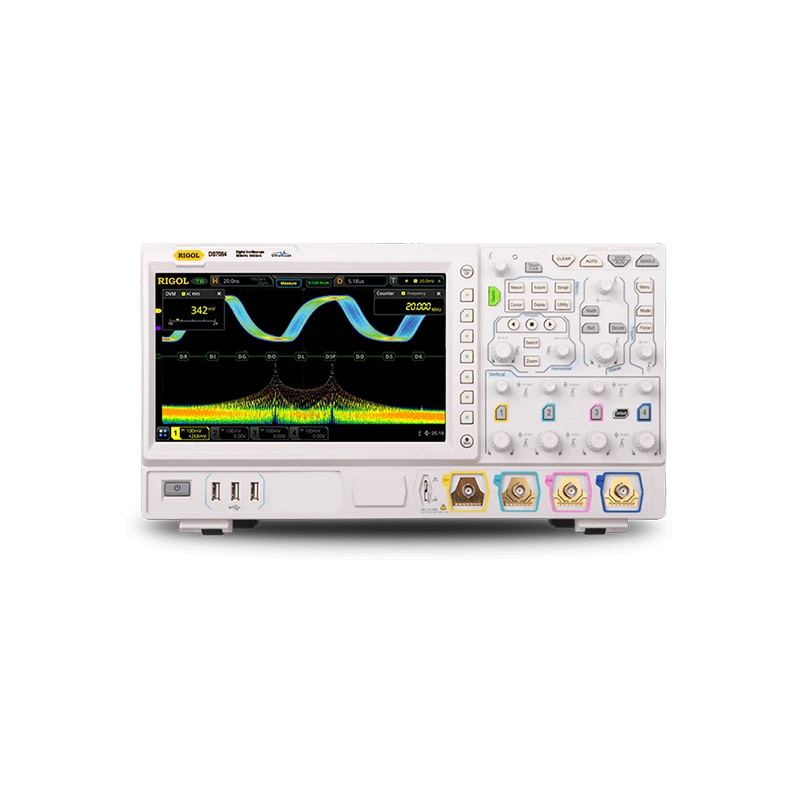

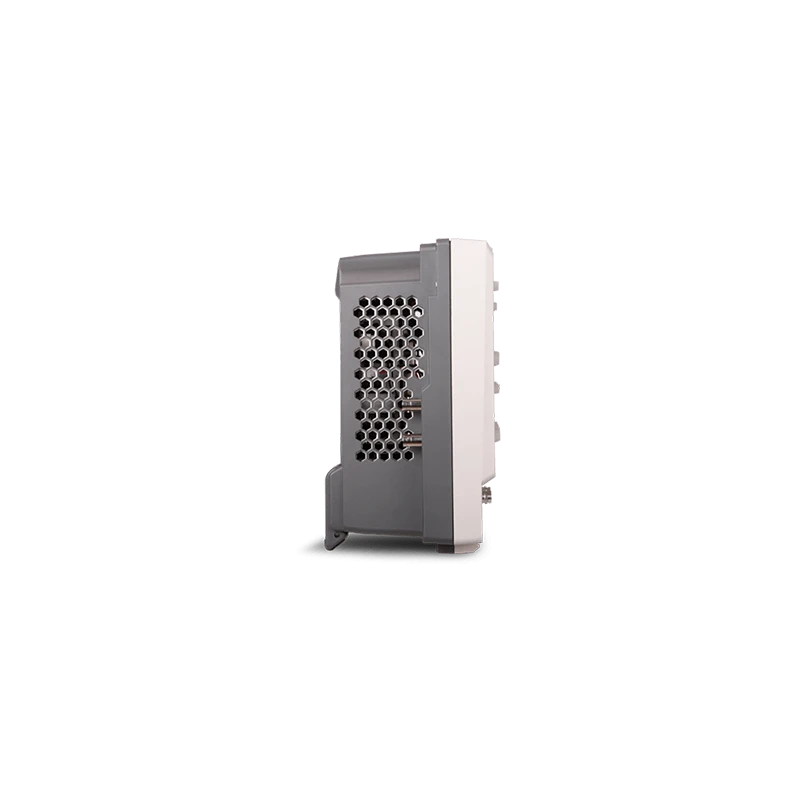

RIGOL Digital Oscilloscope DS7000 Series
Model
Analog Bandwidth
Digital Channels
Analog Channels
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Main unit, interface cables, probes, power cable |
| Power Consumption | Max. 200 W |
| Brand | Rigol |
| Power Supply | 100–240 V AC, 45–440 Hz |
| Operating Temperature | 0°C to +50°C |
| Dimensions | 410 × 224 × 135 mm |
| Display Size | 10.1-inch capacitive multi-touch |
| Weight | 3.9 Kg |
| Sampling rate | Up to 10 GSa/s (single channel) |
| Series | DS7000 |
| Display Resolution | 1024 × 600 |
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% |
| Waveform Capture Rate | ≥600000 wfms/s |
| External Trigger | 1 |
| Vertical Resolution | 8 bits (12-bit in high-res mode) |
| Memory Depth | Up to 500 Mpts (option) |
| Product Condition | New |
| Oscilloscope Type | Digital |
| Rack Mount | 6U |
| Analog Channels | 4 |
| Analog Bandwidth Options | 100 MHz / 200 MHz / 350 MHz / 500 MHz (software upgradeable) |
| Digital Channels (MSO models) | 16 (optional) |
| Hardware Waveform Recording | ≥450000 frames |
Key Features
Rigol DS7000 Series High-Performance Digital Oscilloscope designed for advanced debugging and signal analysis in laboratory and industrial settings.
- Offers up to 500 MHz analog bandwidth, upgradeable via software.
- Features 4 analog channels and 1 external trigger input for versatile signal capture.
- Includes real-time sampling rates up to 10 GSa/s and deep memory up to 500 Mpts.
- High-speed waveform capture rate of ≥600000 wfms/s, capturing glitches down to 400 ps.
- Supports 41 automatic measurements, hardware full-memory measurement, and enhanced FFT analysis.
- 10.1-inch capacitive multi-touch display provides intuitive navigation.
- Optional 16 digital channels available on MSO models for mixed-signal testing.
- Equipped with extensive protocol analysis, web control, and remote operation features.
Product Description
Rigol DS7000 Series Digital Oscilloscope is a state-of-the-art laboratory instrument based on UltraVision II architecture, designed for advanced signal analysis, debugging, and testing in R&D, industrial, power electronics, and automotive electronics environments. The series supports up to 500 MHz bandwidth (upgradeable via software), with 4 analog input channels, 1 external trigger input, and optional 16 digital channels on MSO models for mixed-signal debugging. Integrated functions include a spectrum analyzer (FFT-based), protocol analyzer, arbitrary waveform generator (optional on MSO), voltmeter, and frequency counter, making it a true 7-in-1 test platform.
- Up to 500 MHz analog bandwidth, software upgradeable as required.
- Real-time sampling up to 10 GSa/s (single-channel operation).
- Standard memory depth of 100 Mpts, expandable to 250 Mpts/500 Mpts (option).
- Ultra-high waveform capture rate (≥600000 wfms/s) and deep hardware memory record (≥450000 frames).
- Peak detection captures glitches as brief as 400 ps for maximum signal integrity.
- Offers over 41 automatic waveform measurements, full-memory hardware precision modes, enhanced FFT (up to 1 Mpts), and sophisticated Pass/Fail, search, and navigation functionalities.
- 10.1-inch high-resolution capacitive multi-touch display (1024 × 600) enables clear visualization and quick operations.
- Connectivity options include 4 USB host ports, LAN (10/100/1000, LXI-C), HDMI, TRIG OUT, and Pass/Fail output; USB-GPIB supported optionally for enhanced automation.
- Operates on 100–240 V AC supply; designed for stable function in laboratory and industrial environments (0°C to 50°C).
This oscilloscope is ideal for embedded and mixed-signal debugging, industrial control, power electronics testing, automotive, educational, validation, and research labs. Standard package contains the main unit (weight <3.9 kg), interface cables, probes, and power cord. Dimensions: 410 × 224 × 135 mm; rack mountable (6U).
Discover more advanced test and measurement solutions in the Oscilloscope category at EnvMart. Browse our Rigol range for comprehensive laboratory instrumentation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DS7000 Series Digital Oscilloscope offers a maximum analog bandwidth of up to 500 MHz, which can be upgraded via software as needed.
The oscilloscope features 4 analog channels and 1 external trigger input, providing versatile signal capture capabilities.
The Rigol DS7000 Series supports real-time sampling rates of up to 10 GSa/s in single-channel operation.
The oscilloscope has a standard memory depth of 100 Mpts, which can be expanded to 250 Mpts or 500 Mpts as an option.
Yes, it can capture glitches as brief as 400 ps, ensuring maximum signal integrity.
The oscilloscope supports over 41 automatic waveform measurements, including enhanced FFT analysis and sophisticated Pass/Fail functionalities.
Yes, it features a 10.1-inch capacitive multi-touch display that allows for intuitive navigation and clear visualization.
The oscilloscope includes 4 USB host ports, LAN, HDMI, TRIG OUT, and Pass/Fail output, with optional USB-GPIB support for enhanced automation.
The oscilloscope is designed to operate in laboratory and industrial environments within a temperature range of 0°C to 50°C.
The standard package includes the main unit, interface cables, probes, and a power cord. It is also rack mountable (6U).
