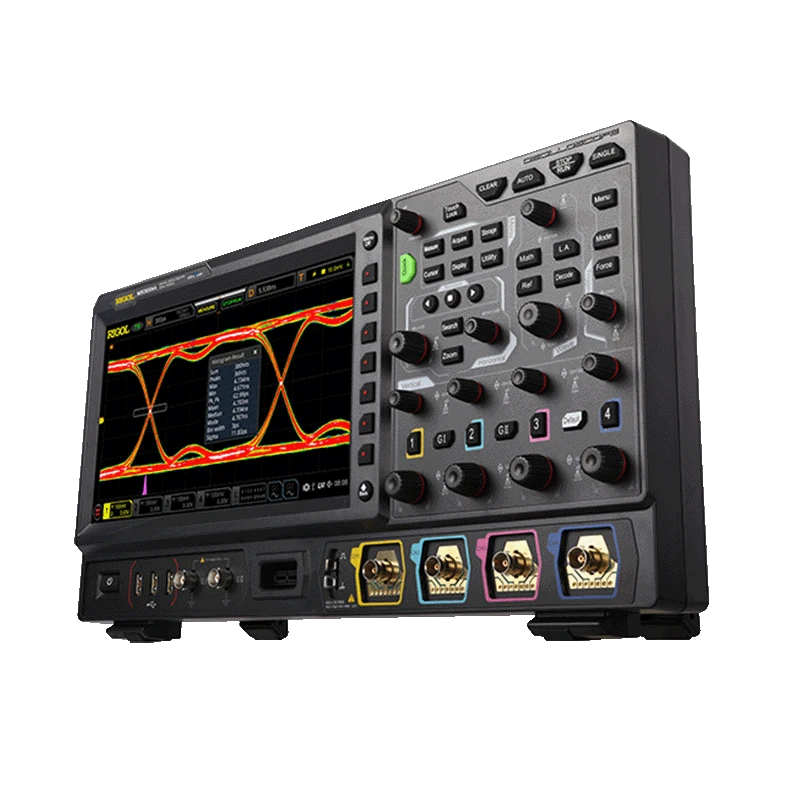

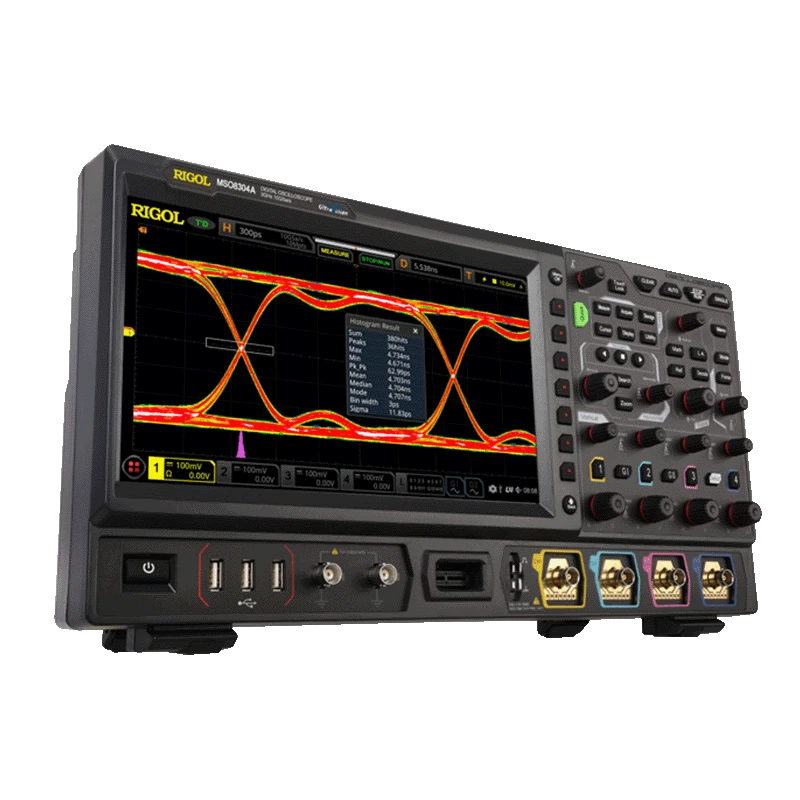

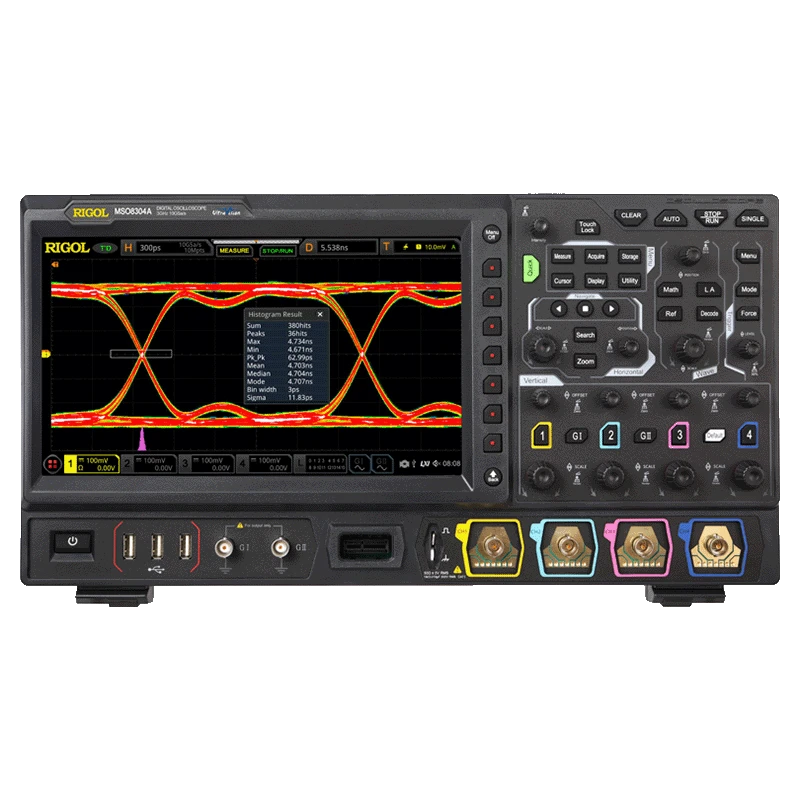

RIGOL Digital Oscilloscope MSO8000A Series

Rigol MSO8000A Series Mixed Signal Oscilloscope is designed for high-performance digital, analog, and embedded system debugging. Featuring up to 2 GHz analog bandwidth, 4 analog and 16 digital channels, and a powerful 10 GSa/s real-time sampling rate, this platform integrates seven instruments in a single device—including digital oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator (optional), digital voltmeter, frequency counter, and protocol analyzer. These features make it ideal for a wide range of applications in R&D labs, manufacturing test setups, automotive electronics validation, serial protocol debugging, and educational use.

• 4 analog input channels with up to 2 GHz bandwidth, plus 16 digital channels (logic probe accessory required).
• Extensive protocol decoding and optional serial trigger support for standards such as RS232/UART, I2C, SPI, CAN, LIN, MIL-STD, and FlexRay.
• Memory depth up to 500 Mpts for analog and 62.5 Mpts for digital, providing comprehensive waveform analysis and long-duration event capture.
• Waveform capture rate ≥600,000 wfms/s and hardware-based waveform recording up to 450,000 frames for rapid signal acquisition.
• UltraVision II engineering platform ensures high-speed operation, advanced triggering, and data analysis functions.
• 10.1-inch capacitive touch display (1024 × 600) with 256-level intensity grading for clear and flexible signal visualization.
• Standard triggers: edge, pulse, slope, video, pattern, duration, timeout, window, and zone, with precision and pass/fail measurement capabilities.
• Integrated voltmeter, frequency counter, and protocol analyzer expand the measurement options (eye/jitter/power options available).
• Multiple interfaces: USB host x4, USB device x1, HDMI out, LAN (LXI-C), AUX out, optional USB-GPIB for broad connectivity.
• Power supply: 100–240 V AC, 45–440 Hz; weight: approx. 4 kg (without accessories); rack mount: 6U configuration.

Applications include embedded system and mixed-signal debugging, automotive and industrial testing, serial bus protocol validation, and research & development. The MSO8000A Series sets a new standard for multi-instrument integration and workflow efficiency in advanced electronics laboratories and manufacturing settings.

Compare models in the MSO8000A Series for bandwidth options (MSO8074A: 750 MHz, MSO8154A: 1.5 GHz, MSO8204A: 2 GHz). Package includes main oscilloscope unit; logic probe, waveform generator, and option licenses purchased separately. Browse more Rigol oscilloscopes and advanced test instruments in the Measuring & Testing Instruments category on EnvMart.
