RIGOL M300 Series Data Acquisition and Switch System | M300 | M301 | M302
Model
Number of Slots
Module Type
Max Scan Speed
Max Channels per Unit
Specifications
| Country of Origin | India |
|---|---|
| DC Voltage Range | 200 mV to 300 V |
| Power Consumption | 25 VA max |
| Resistance Range | 200 Ω to 1 MΩ |
| Display | 4.3-inch TFT LCD |
| Frequency range | 3 Hz to 1 MHz |
| Brand | Rigol |
| Power Supply | 100–120 V (45–440 Hz), 200–240 V (45–66 Hz) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 159 mm × 239 mm × 373.4 mm |
| Storage Temperature | -40°C To 70°C |
| Humidity | 80% RH at 40°C (non-condensing) |
| Model | M300 Series |
| Weight | 5.7 kg |
| EMC | EN 61326-1 |
| Safety | IEC 61010-1, CAT I 300 V |
| Data Storage | 100,000 time-stamped readings |
| Temperature measurement | RTD, Thermistor, Thermocouple, Any sensor (range: -200°C to 660°C) |
| DC Current range | 200 μA to 1 A |
| Product Condition | New |
| MPN | M300 Series |
| Mainframe Architecture | 5 module slots |
| Maximum Channels | 320 channels per mainframe (depends on module) |
| Programming | SCPI |
| LXI Compatibility | LXI Core 2011 Device |
| Supported Modules | MC3065 (6.5 Digit DMM), MC3120, MC3132, MC3164, MC3324, MC3416, MC3534, MC3648 |
| AC Voltage Range (True RMS) | 3 Hz to 300 kHz |
| AC Current Range (True RMS) | 200 μA to 1 A |
Key Features
Rigol M300 Series Modular Data Acquisition and Switch System designed for multi-channel measurement applications.
- Modular instrument featuring 5 module slots for flexible configuration.
- Support for up to 320 switch channels per mainframe for scalable testing.
- Integrated optional 6.5 digit DMM module for precision measurements.
- Enables standalone operation without PC, supporting USB logging.
- Interval scanning and storage of up to 100,000 time-stamped readings.
- Extensive measurement functions including DC/AC voltage, current, resistance, frequency, and temperature.
- Standard SCPI programming and full suite of remote interfaces: USB, LAN (LXI Core 2011), GPIB, RS232.

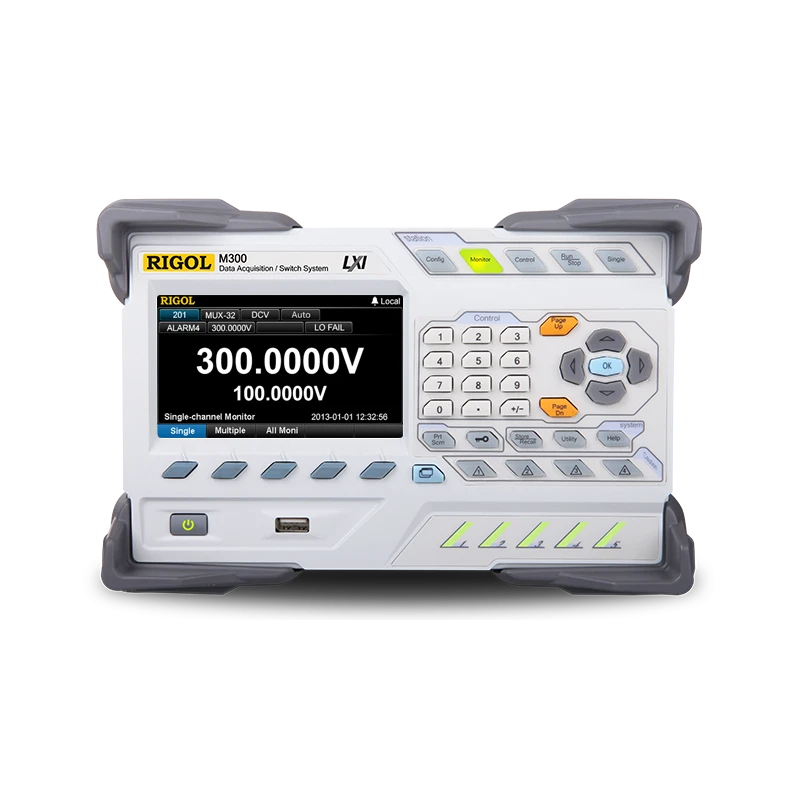

- 4.3-inch TFT LCD display with real-time monitoring and data curve visualization.
- Math/statistics functions (AVG, MAX, MIN, SDEV) and channel configuration guide for enhanced workflow.
- Supports Ultra Acquire PC software for advanced configuration and data management.
Product Description
The RIGOL M300 Series Data Acquisition and Switch System, available in M300, M301, and M302 configurations, is a modular platform designed for R&D validation, automated multi-point testing, production-line monitoring, and industrial data collection. Its five-slot mainframe supports flexible combinations of measurement and switching modules, providing up to 320 switch channels for demanding laboratory and automated test applications.
The RIGOL M300 Series supports multiplexer, actuator, matrix-switch, and digital multimeter modules, allowing users to configure the system according to their testing requirements. When equipped with the optional MC3065 6½-digit digital multimeter module, it can measure DC and AC voltage, DC and AC current, two-wire and four-wire resistance, frequency, period, and temperature.
- Five-slot modular mainframe for flexible system configuration
- Supports up to 320 switch channels
- Compatible with multiple plug-in module types
- Supports multiplexer, actuator, matrix-switch, and DMM modules
- Optional MC3065 6½-digit digital multimeter module
- Scan speeds up to 60 channels per second
- Stand-alone operation without requiring a dedicated computer
- USB data logging with storage for up to 100,000 time-stamped readings
- Real-time scan curves, channel monitoring, and alarm displays
- Built-in mathematical and statistical analysis functions
- Rack-mount support for automated and production test systems
- USB Host, USB Device, LAN, GPIB, and RS232 connectivity
- LXI Core 2011 compatibility for network-based control
- Supports RTD, thermistor, and thermocouple temperature measurements
- Designed to comply with applicable electrical safety and EMC requirements
- Operating temperature range from 0°C to 50°C
With the compatible DMM module installed, the system supports DC voltage, True-RMS AC voltage, DC and AC current, resistance, frequency, period, and temperature measurements. Its modular construction makes it suitable for multi-channel sensor monitoring, component validation, reliability testing, environmental testing, production quality control, and automated data-acquisition systems.
Typical applications include electronic product testing, temperature monitoring, industrial sensor validation, manufacturing-line inspection, environmental chamber testing, research experiments, and automated test-equipment integration.
Available Configurations: M300 | M301 | M302
Explore more RIGOL data acquisition systems, switching modules, and professional electronic measuring instruments in the EnvMart Measuring & Testing Instruments category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol M300 Series supports up to 320 switch channels per mainframe, depending on the installed modules.
Yes, the M300 Series can operate standalone and supports USB logging, allowing for data storage without a dedicated PC.
The M300 Series can measure DC/AC voltage, current, resistance, frequency, and temperature across a wide range of input levels.
The maximum power consumption of the Rigol M300 Series is 25 VA.
The device is safety-certified to IEC 61010-1 and rated CAT I 300 V, ensuring safe operation in various environments.
The operating temperature range for the M300 Series is from 0°C to 50°C.
The Rigol M300 Series features a modular design with 5 module slots for flexible configuration.
It is equipped with a 4.3-inch TFT LCD display for real-time monitoring and data visualization.
The M300 Series can operate at a humidity level of up to 80% RH at 40°C (non-condensing).
The M300 Series supports various remote interfaces including USB, LAN (LXI Core 2011), GPIB, and RS232 for seamless integration.
