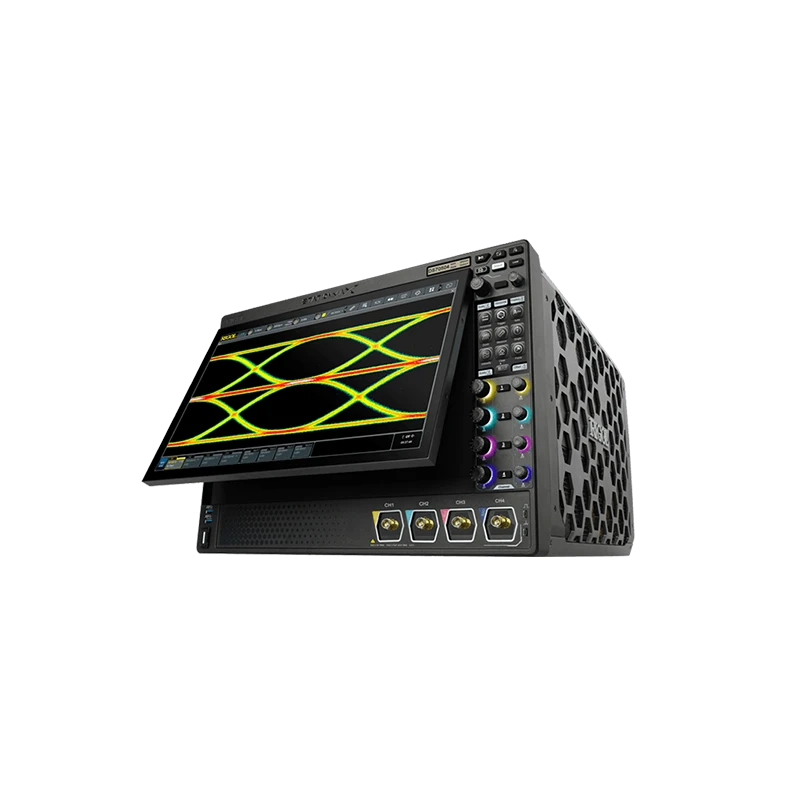

RIGOL Digital Oscilloscope DS70000 Series

Rigol DS70000 Series Digital Oscilloscope, model DS70000 Series, combines high-speed signal acquisition, extensive protocol analysis, and a large HD touch interface to meet demanding requirements in R&D laboratories, compliance testing, and industrial production.

• Offers 4 analog channels plus 1 external trigger for comprehensive measurement.
• Bandwidth options: DS70304 with 3 GHz, DS70504 with 5 GHz (50 Ω input); 500 MHz on 1 MΩ input.
• Sampling rates up to 20 GSa/s and memory depth up to 2 Gpts (optional).
• Advanced features include UltraVision III architecture, Phoenix ASIC hardware, and real-time waveform capture >1,000,000 wfms/s.
• Selectable 8-bit to 16-bit vertical resolution with wide vertical sensitivity ranges (1 mV/div to 10 V/div).
• Timebase accuracy of ±0.5 ppm and channel-to-channel skew ≤50 ps.
• Support for a wide range of triggers: edge, pulse, slope, protocol, duration, runt, window, and advanced serial protocol triggers (RS232/UART, I2C, SPI, CAN, LIN, FlexRay, USB 2.0, etc).
• Automatic measurement for 41 parameters, real-time FFT math functions, complex analysis, and eye diagram/jitter (optional).
• Segment-based waveform recording, histogram, and pass/fail testing help enhance analysis accuracy.

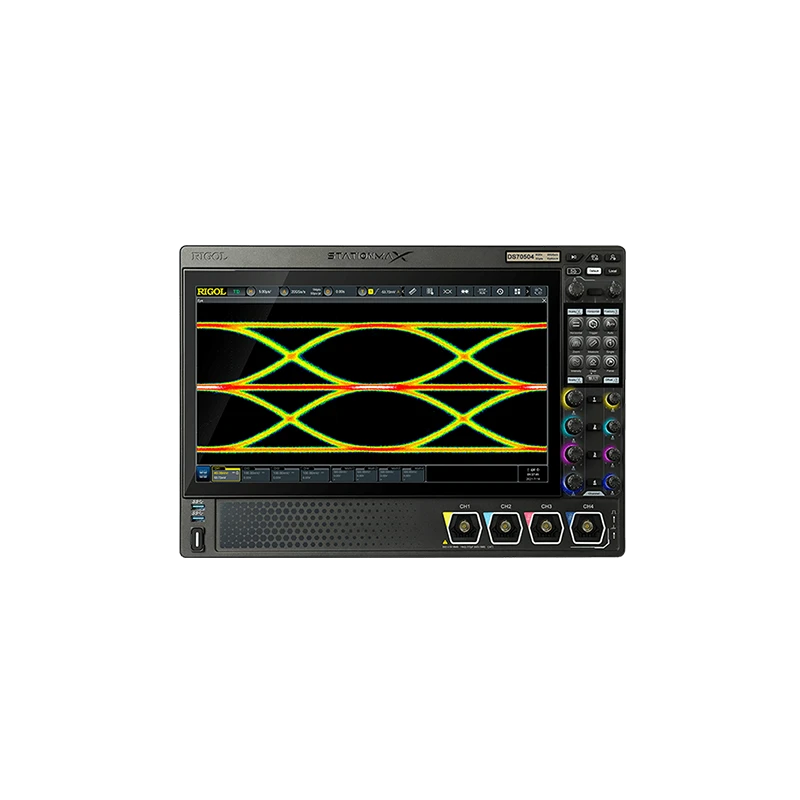

• Gigantic 15.6-inch HD touch display and secondary 3.5-inch touch controller support efficient multi-pane work and dynamic electronic labeling.
• Flexible connectivity: 4 × USB 3.0 host, USB 3.0 device, 1 Gbps LAN, HDMI, AUX, 10 MHz reference I/O, remote web-based control available.
• Power supply: 100–240 V AC (45–440 Hz), maximum consumption 500 W. Operating temperature: 0°C to +50°C, weight <22.5 kg, dimension: 439 × 310 × 491 mm, 7U rack mount.
• Applications: high-speed digital design, validation of embedded/automotive systems, compliance pre-testing, signal integrity and jitter analysis, serial bus deep decoding, semiconductor and communication electronics R&D, production line monitoring.
• Warranty: 3 years (main unit); recommended calibration interval 18 months.

Ideal for industrial, laboratory, automotive, communication, and advanced electronics test & measurement use cases. Explore more models and brands in Oscilloscope category at EnvMart.
