Rigol DP700 Series Programmable Linear DC Power Supply 150W | EnvMart

Free Delivery in India | Lowest Global Shipping Charges

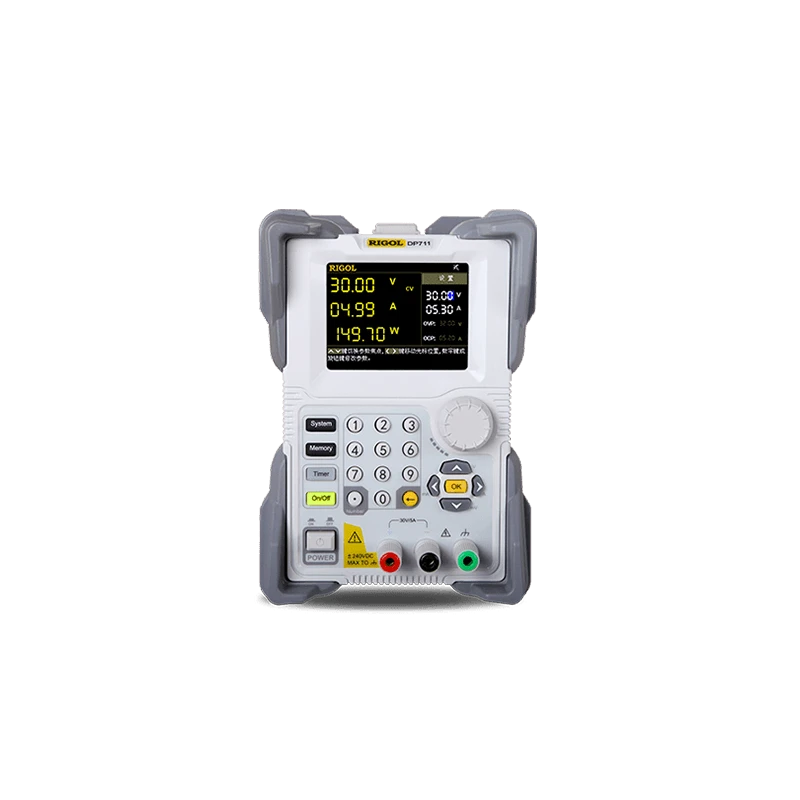

RIGOL Programmable Linear DC Power Supplies DP700 Series

Name: RIGOL Programmable Linear DC Power Supplies DP700 Series
Brand: Rigol
SKU: 73340
Price: 364.83 USD
Availability: InStock



Category DC Power Supply Brand Rigol

Model

DP711 DP712

Number of Channels

Total Power

Output per Channel

Programming Resolution

Display Resolution

Readback Resolution

Specifications

Country of Origin	India
Display	3.5-inch TFT LCD
Brand	Rigol
Operating Temperature	0–40°C
Storage Temperature	-40–70°C
Humidity	5–80% RH
User interface	3.5-inch TFT LCD
Altitude	Less Than 2000 M
Power Requirements	100V/120V/220V/240V AC ±10%
Weight	6.9 Kg
Output Power	150 W
Series	DP700 Series
Cooling	Fan cooled
Dimensions (W × H × D)	140 × 202 × 332 mm
Protection	Overvoltage, Overcurrent, Overtemperature
Product Condition	New
Output Channels	1
Transient Response Time	Less than 50 μs
Maximum Input Power	400 VA
DP711 Voltage/Current Range	0–30 V / 0–5 A
DP712 Voltage/Current Range	0–50 V / 0–3 A
OVP/OCP Range (DP711)	0.01–33 V / 0.01–5.5 A
OVP/OCP Range (DP712)	0.01–55 V / 0.01–3.3 A
Ripple & Noise (DP711)	Less than 500 μVrms / 3 mVpp
Ripple & Noise (DP712)	Less than 500 μVrms / 4 mVpp
Load Regulation (Voltage/Current)	Less than 0.01% +2mV / Less than 0.01% +2mA
Line Regulation (Voltage/Current)	Less than 0.01% +2mV / Less than 0.01% +2mA
Programming Accuracy (Voltage/Current)	0.05% +20mV / 0.2% +10mA
Timing Output	10ms–99999s, up to 2048 groups
RS232 Port	Yes
Resolution (Standard/High)	10mV/10mA (standard), 1mV/1mA (optional)
Panel Lock	Yes

Key Features

Rigol DP700 Series Programmable Linear DC Power Supply offers up to 150W, single-channel output with low ripple and noise, perfect for laboratory, R&D, and electronics testing applications.

Delivers up to 150W output power with either 0–30V/0–5A (DP711) or 0–50V/0–3A (DP712) configurations.
Features low ripple and noise below 500 μVrms, ensuring stable and reliable testing results.
Supports advanced timing output (10ms to 99999s, up to 2048 groups) and external trigger for complex test sequences.
Equipped with protection functions including overvoltage, overcurrent, and overtemperature safeguards.
Offers fast transient response time below 50 μs and excellent load/line regulation below 0.01% + 2mV/2mA.
Optional high-resolution mode (1mV/1mA) enables precise current and voltage control.
RS232 interface for remote control and integration with test benches or automation systems.
Features an intuitive 3.5-inch TFT LCD display and front panel locking for enhanced usability and security.
Fan-cooled for quiet operation and thermal management during extended use.

Product Description

Rigol DP700 Series Programmable Linear DC Power Supply is designed for demanding laboratory, industrial, and R&D applications. Providing up to 150W of single channel linear DC output, the DP700 Series ensures extremely low ripple and noise (≤500 μVrms) and outstanding load and line regulation below 0.01% + 2mV. Two models are available: DP711 (0–30V/0–5A) and DP712 (0–50V/0–3A), both with comprehensive protection features like OVP, OCP, and OTP for safe, reliable operation in quality assurance, RF/automotive electronics, or educational environments.

150W output power, single channel with selectable 30V/5A or 50V/3A ranges, OVP/OCP.
Ultra-low ripple/noise ensures accurate testing for sensitive electronics and instrumentation.
Optional high resolution (1mV/1mA) mode suits precision research & calibration tasks.
Fast transient response (<50μs), timing output support (up to 2048 groups), external trigger input for synchronized operation.
Intuitive 3.5-inch TFT LCD, data storage/recall, and front panel locking enhance workflow.
Cooling handled by robust internal fan for sustained operation in varied test environments.
RS232 communication port for integration with PC or automated test systems.
Ideal for laboratories, R&D, manufacturing quality control, and RF/automotive electronic testing.
Portable bench-top chassis (140 × 202 × 332 mm), net weight 6.9 kg.
Packaged with mainframe, power cord, and user manual.

Whether for industrial, laboratory, R&D, educational, or quality control applications, Rigol programmable DC power supplies deliver performance, reliability, and safety. Browse more Rigol power solutions and laboratory instruments in the EnvMart catalog for all your professional testing needs.

RIGOL Programmable Linear DC Power Supplies DP700 Series

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

Frequently Asked Questions

The Rigol DP700 series offers two models: DP711 with an output range of 0–30V and 0–5A, and DP712 with an output range of 0–50V and 0–3A.

The DP700 series features low ripple and noise levels below 500 μVrms, along with excellent load and line regulation below 0.01% + 2mV, ensuring stable and reliable testing.

The DP700 series includes overvoltage, overcurrent, and overtemperature protection to ensure safe operation during testing.

Yes, the DP700 series is equipped with an RS232 interface for remote control and integration with test benches or automation systems.

The DP700 series has a fast transient response time of less than 50 μs, making it suitable for dynamic testing applications.

The maximum output power of the DP700 series is 150W, allowing it to handle a variety of testing needs.

The DP700 series has dimensions of 140 × 202 × 332 mm and weighs 6.9 kg, making it portable and suitable for bench-top use.

The DP700 series features a 3.5-inch TFT LCD display, providing clear visibility for monitoring outputs and settings.

The operating temperature range for the DP700 series is 0–40°C, while the storage temperature range is -40–70°C.

You can browse the Rigol DP700 series in our catalog and proceed to purchase directly from our website or contact us for more information.
