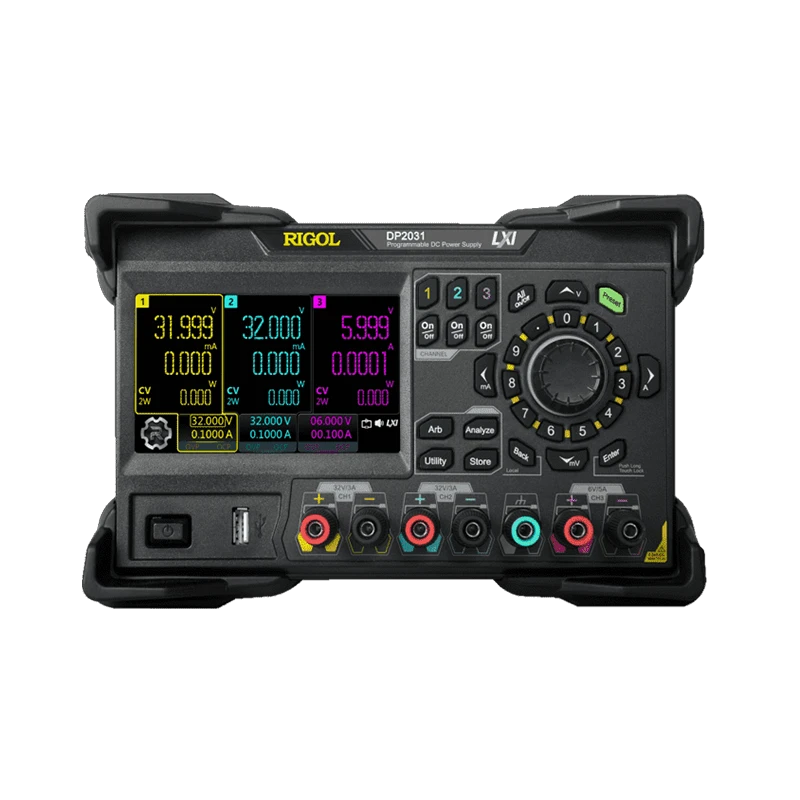

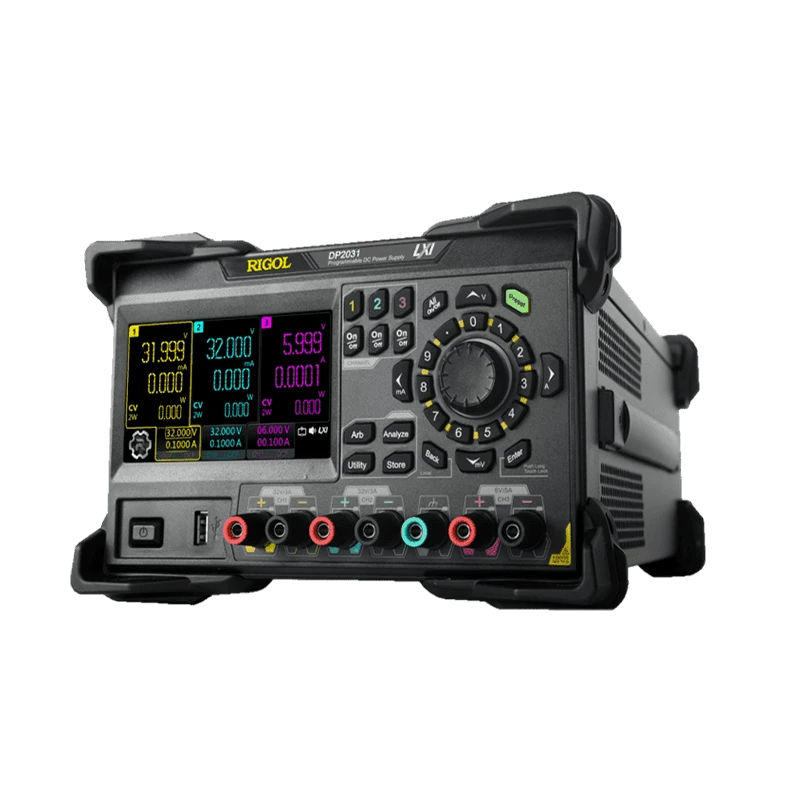

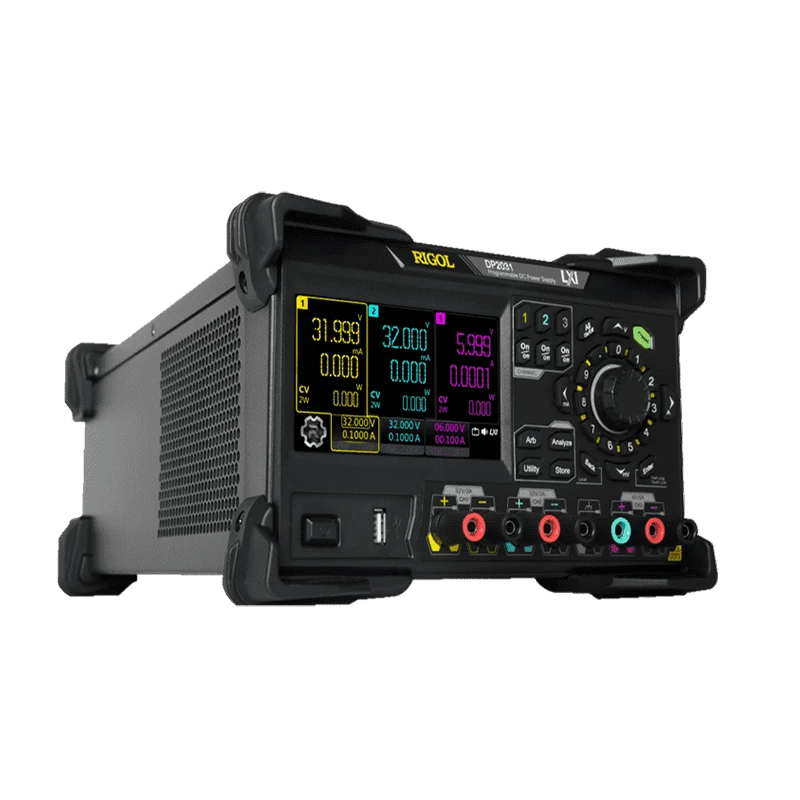

RIGOL Programmable Linear DC Power Supplies DP2000 Series
Model
Number of Channels
Total Power
Output per Channel
Programming Resolution
Display Resolution
Readback Resolution
Specifications
| Country of Origin | India |
|---|---|
| Display | 4.3-inch LCD color touch screen |
| Brand | Rigol |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -40 to 60 °C |
| Humidity | 5% to 80% RH |
| Altitude | Less than 1500 m |
| Model | DP2000 Series |
| IP Rating | IP20 |
| Weight | 9.95 kg |
| Channels | 3 fully isolated independent channels |
| Dimensions (W × H × D) | 239 × 157 × 419 mm |
| Protection | Over Voltage, Over Current, Over Temperature |
| Product Condition | New |
| MPN | DP2000 Series |
| Max Input Power | 650 VA |
| Total Output Power | 222 W |
| CH1 Output Voltage | 0 to 32 V |
| CH2 Output Voltage | 0 to 32 V |
| CH3 Output Voltage | 0 to 6 V |
| CH1/CH2 Output Current | 0 to 3 A |
| CH3 Output Current | 0 to 5 A |
| Optional CH3 Output Current (High Current Mode) | 0 to 10 A |
| Series Mode Maximum Voltage | 64 V |
| Parallel Mode Maximum Current | 6 A |
| Programming Accuracy (CH1/CH2 Voltage) | 0.03% + 8 mV |
| Output Ripple (Voltage) | Less than 350 μVrms / 2 mVpp |
| Minimum Dwell Time | 1 ms |
| Arbitrary Waveform Points | 512 |
| Transient Response Time | Less than 50 μs |
| AC Input Voltage | 100/120/220/230 ±10% V |
| Rack Mount Form Factor | 3U, 1/2-rack |
| Energy Analysis | Timing output & consumption analysis |
Key Features
Rigol DP2000 Series Programmable Linear DC Power Supply for precise laboratory, R&D, and electronics testing applications.
- Triple output channels with full isolation for versatile testing.
- Delivers up to 222 W total output power and up to 32 V/3 A (CH1/CH2) and 6 V/5 A (CH3).
- Advanced accuracy with 0.03% + 8 mV programming accuracy and low output ripple below 350 μVrms.
- Supports arbitrary waveform generation with 512-step memory and 1 ms minimum dwell time.
- USB, LAN, RS232, and Digital I/O remote interfaces for enhanced connectivity.
- High-resolution touch screen interface for intuitive operation.
- Transient response time under 50 μs for dynamic loads.
- Includes over-voltage, over-current, and over-temperature protection mechanisms.
- Series and parallel mode operation for flexible output configurations.
- Energy consumption analysis and timing output features for advanced analysis.
Product Description
Rigol DP2000 Series Programmable Linear DC Power Supply delivers laboratory-grade, triple-output, high precision DC power suitable for R&D, device validation, IoT testing, automotive electronics, and ATE systems. It offers up to 222 W total output power across three fully isolated channels and is engineered with an impressive programming accuracy of 0.03% + 8 mV, low output ripple under 350 μVrms, and transient response below 50 μs. Each channel is independently programmable: CH1 and CH2 give 0–32 V/0–3 A, CH3 0–6 V/0–5 A, or optionally CH3 0–10 A. Internal series/parallel configuration expands voltage up to 64 V or current up to 6 A.
The DP2000 Series supports advanced lab automation with USB HOST/DEVICE, LAN, RS232, and Digital I/O, features a 4.3-inch LCD touch screen for ease of use, and provides front and rear output terminals. Built-in 512-step arbitrary waveform generation, minimum dwell time of 1 ms, and detailed energy consumption/timing analysis enhance research productivity. Integrated protective functions ensure safe operation in demanding environments.
- Triple fully isolated and programmable output channels for simultaneous device testing.
- Maximum total power output of 222 W enables high-load experiments and circuit prototyping.
- High measurement accuracy and low output ripple ensure integrity for sensitive electronics.
- Configurable for series mode up to 64 V or parallel mode up to 6 A output.

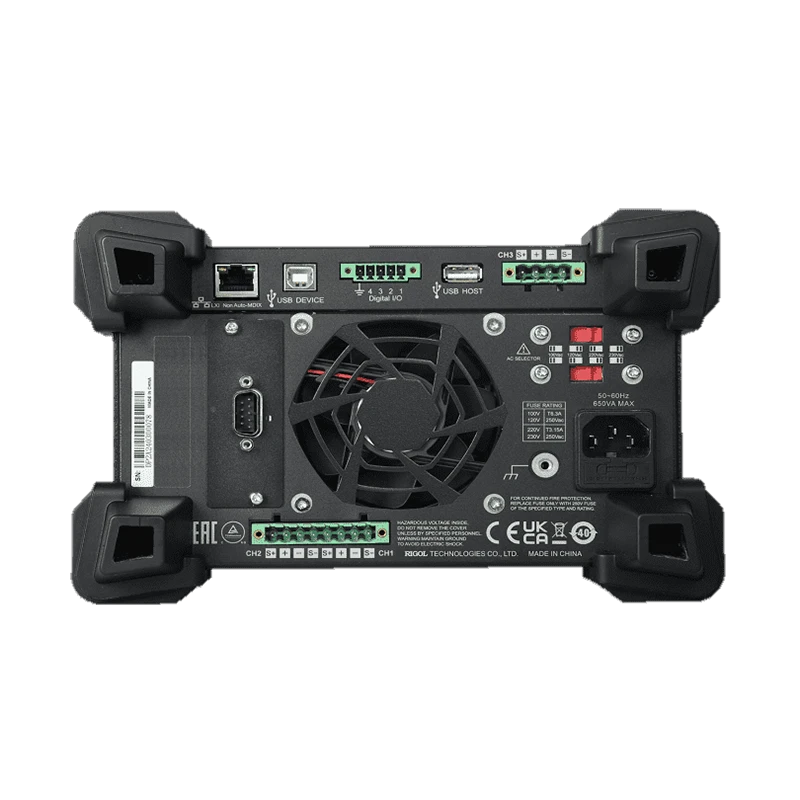

- Front/rear panel output terminals for flexible bench or rack installation.
- Advanced connectivity: USB, LAN, RS232, Digital I/O interfaces for system integration.
- Fast transient response time (< 50 μs) supports rapid load switching.
- Internal energy analysis and timing outputs for professional workflow automation.
- Protective features: OVP, OCP, OTP safeguard equipment and circuits.
- Ideal for industrial, laboratory, electronics manufacturing, R&D, and educational sectors.
Dimensions: 239 mm × 157 mm × 419 mm (W × H × D). Weight: 9.95 kg. Package includes main unit and user guide. Browse more Rigol DC power supplies and laboratory test equipment on EnvMart for advanced solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DP2000 Series provides a total output power of 222 W across three fully isolated channels.
CH1 and CH2 can deliver 0 to 32 V and 0 to 3 A, while CH3 can provide 0 to 6 V and 0 to 5 A, with an optional high current mode of 0 to 10 A.
The programming accuracy is 0.03% + 8 mV for CH1 and CH2, ensuring high precision for your applications.
It supports USB, LAN, RS232, and Digital I/O interfaces for enhanced connectivity and integration into automated systems.
Yes, the DP2000 Series includes over-voltage, over-current, and over-temperature protection mechanisms to safeguard your equipment.
The transient response time is less than 50 μs, making it suitable for applications requiring rapid load switching.
Yes, the DP2000 Series can be configured for series mode up to 64 V or parallel mode up to 6 A, providing versatile output options.
The operating temperature range is from 0 to 40 °C, while storage temperature can be between -40 to 60 °C.
The dimensions are 239 mm × 157 mm × 419 mm (W × H × D) and it weighs 9.95 kg.
You can browse and purchase the Rigol DP2000 Series on our website. For further inquiries, feel free to contact our support team.
