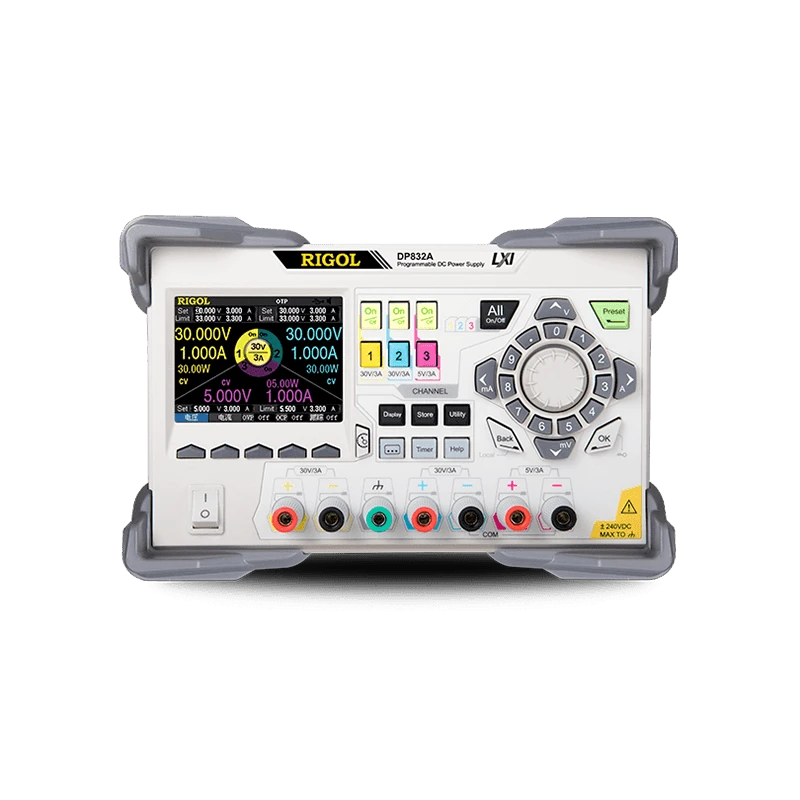

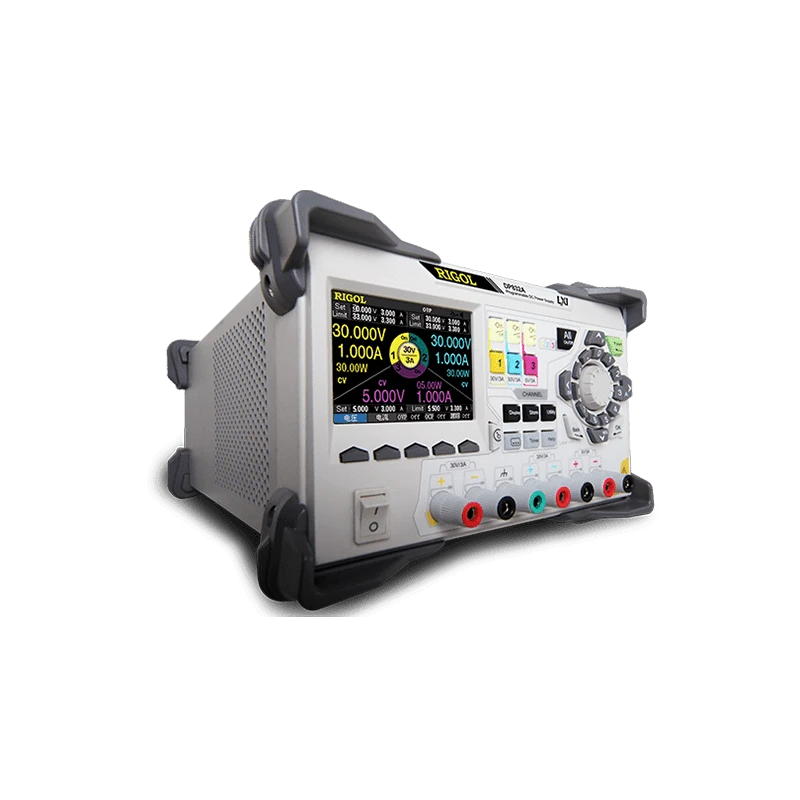

RIGOL Programmable Linear DC Power Supplies DP800 Series
Model
Number of Channels
Total Power
Output per Channel
Programming Resolution
Display Resolution
Readback Resolution
Specifications
| Country of Origin | India |
|---|---|
| Display | 3.5-inch TFT color |
| Brand | Rigol |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 5% to 80% RH |
| Altitude | Less than 1500 m |
| Model | DP800 Series |
| Power Requirements | 100/115/230 Vac ±10%, 50–60 Hz |
| Weight | 9.75–10.5 kg |
| Load Regulation | Less than 0.01% + 2 mV |
| Output Current Range | 0 to 20 A |
| Ripple and Noise | Less than 350 μVrms |
| Line Regulation | Less than 0.01% + 2 mV |
| Product Condition | New |
| MPN | DP800 Series |
| Output Channels | Single, Dual, or Triple (model dependent) |
| Total Output Power | Up to 200 W |
| Transient Response Time | Less than 50 μs |
| Output Voltage Range | 0 to 60 V |
| Protections | OVP, OCP, OTP |
| Timer/Delay Output | Yes (standard) |
| Mechanical Dimensions (W × H × D) | 239 × 157 × 418 mm |
Key Features
Rigol DP800 Series Programmable Linear DC Power Supply for laboratory, R&D, and testing environments, supporting up to 200 W total output.
- Offers single, dual, or triple independent output channels depending on the model.
- Delivers up to 200 W total output power, with low ripple and noise below 350 μVrms.
- Features excellent load and line regulation below 0.01% and fast transient response under 50 μs.
- Built-in voltage, current, and power measurement with waveform display for precise monitoring.
- Includes standard protections: Over Voltage (OVP), Over Current (OCP), and Over Temperature (OTP).
- Equipped with a 3.5-inch TFT display, timer, recording, and waveform analysis capabilities.
- Supports USB Host and Device standard connectivity, plus optional LAN, RS232, Digital I/O, and USB-GPIB interfaces.
- Fan-cooled design and robust mechanical construction for longevity in demanding environments.
- Suitable for laboratory R&D, production line testing, educational institutions, and electronic device servicing.
- Supplied with standard warranty of 3 years (excluding accessories).
Product Description
Rigol DP800 Series is a high-performance, programmable linear DC power supply system engineered for laboratory, R&D, educational, and electronic manufacturing environments. The DP800 Series provides a selection of single, dual, or triple output models, enabling versatility for a broad range of electronic test and development applications.
With output power up to 200 W and channel configurations such as triple-output (DP832/DP832A: 0–30 V/3 A ×2, 0–5 V/3 A ×1), dual-output (DP822/DP822A: 0–20 V/5 A, 0–5 V/16 A), and single-output high-current/voltage options (DP813/DP811), the DP800 Series ensures adaptable and precision power supply for complex test setups.
- Up to 200 W total output power across single, dual, or triple independent output channels.
- Low output ripple and noise: <350 μVrms/2–3 mVpp (model dependent).
- Load and line regulation: <0.01% + 2 mV and <0.01% + 250 μA.
- Fast transient response: <50 μs recovery time, typical command processing <118 ms.
- Multiple output voltage and current ranges, e.g., CH1/CH2: 0–30 V/0–3 A; CH3: 0–5 V/0–3 A (DP832), CH1: 0–8 V/0–20 A (DP813), and more.
- Three measurement units: voltage (V), current (A), and power (W), with integrated waveform and timer functions.
- Comprehensive data logging, analysis, and automation features with waveform display and output monitoring.
- Comprehensive protections such as Over Voltage (OVP), Over Current (OCP), and Over Temperature (OTP) safeguard devices under test.
- 3.5" color TFT display for intuitive control and monitoring.
- Flexible connectivity: USB Host/Device standard, options for LAN, RS232, Digital I/O, and USB-GPIB to fit various integration scenarios.
- Mechanical dimensions: 239 mm × 157 mm × 418 mm; weight: approx. 9.75–10.5 kg, fan-cooled for safe thermal operation.
The Rigol DP800 Series is ideal for industrial, laboratory, educational, and commercial electronic development environments. It supports tasks requiring clean, stable, precise DC power for instrumentation, product validation, and device manufacturing. All DP800 models come with a standard 3-year warranty (excluding accessories).
Explore EnvMart for more power supplies and advanced test instruments from Rigol and leading global brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DP800 Series offers single, dual, or triple independent output channels, depending on the model you choose.
The DP800 Series can deliver up to 200 W total output power.
The output ripple and noise is less than 350 μVrms, ensuring stable performance.
It includes standard protections such as Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP).
The operating temperature range is from 0 to 40 °C.
Yes, the Rigol DP800 Series comes with a standard warranty of 3 years, excluding accessories.
The DP800 Series features a 3.5-inch TFT color display for intuitive control and monitoring.
Yes, it supports USB Host and Device connectivity, with options for LAN, RS232, Digital I/O, and USB-GPIB interfaces.
The weight of the DP800 Series ranges from approximately 9.75 kg to 10.5 kg.
The transient response time is less than 50 μs, allowing for quick recovery during operation.
