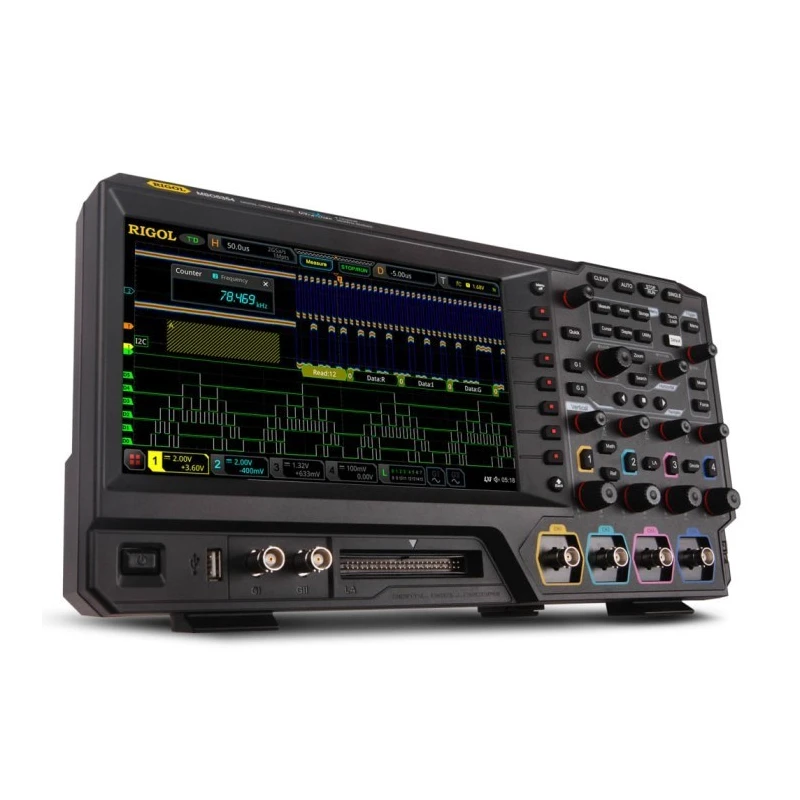

Rigol MSO5104 Mixed Signal Oscilloscope 100Mhz 4 Channels
Specifications
| Accuracy | 200 Mpt |
|---|---|
| Warranty | 3 Years |
| Brand | Rigol |
| Applications | Industrial |
| Model | Rigol MSO-5104 |
| Bandwidth | 100MHz |
| Channels | 4 |
| Sample Rate(Sample/second) | 8Gsa/s per sample |
| Record Length | Up to 200 Mpts Memory Depth |
Key Features
- Super High Sample Bandwidth Ratio
- 500,000 wfms/s Capture Rate
- Hardware Full Memory Auto Measurement
- Hardware Waveform Recording and Playback
Product Description
Rigol MSO5104 Mixed Signal Oscilloscope 100Mhz, 4 Channels, The Rigol MSO5104 is a four-channel, 100 MHz digital/mixed-signal oscilloscope with a real-time sample rate of up to 8 GSa/s. Easily upgraded, it features a 100 Mpts memory depth which is upgradable to 200 Mpts via software key code. It also includes 16 digital channels as a standard feature - simply add the optional PLA2216 logic probe to operate.The Rigol MSO5000 series digital oscilloscope is a high-performance instrument based on Rigols UltraVision II technology. With a real-time sample rate of up to 8 GSa/s and extremely high memory depth, the MSO5000 seamlessly integrates 7 instruments into one - oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator, and much more. The MSO5000 also features a 9-inch, capacitive multi-touch screen with 256-level intensity grading and color persistence
- Hardware Pass/Fail Test
- Enhanced FFT Analysis
- A Variety of Triggers and Protocol Decodings
- User-defined One-key Quick Operation
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol MSO5104 has a bandwidth of 100 MHz.
This model supports 4 channels for simultaneous signal analysis.
The maximum sample rate of the MSO5104 is 8 GSa/s per sample.
The oscilloscope features a record length of up to 200 Mpts memory depth.
This oscilloscope is suitable for industrial applications.
The accuracy rating for this model is 200 Mpt.
Yes, it includes 16 digital channels as a standard feature.
It features a 9-inch capacitive multi-touch screen with 256-level intensity grading and color persistence.
The memory depth can be upgraded to 200 Mpts via a software key code.
The MSO5104 integrates multiple instruments including an oscilloscope, logic analyzer, spectrum analyzer, and arbitrary waveform generator.
The warranty period for this model is 3 years.
It is based on Rigol's UltraVision II technology, enhancing its performance capabilities.
