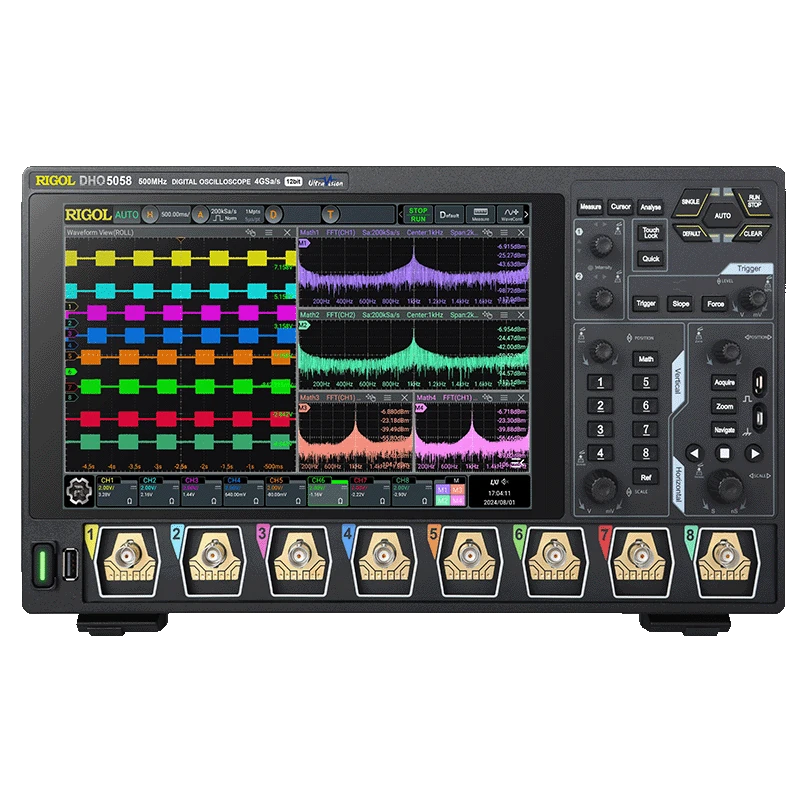

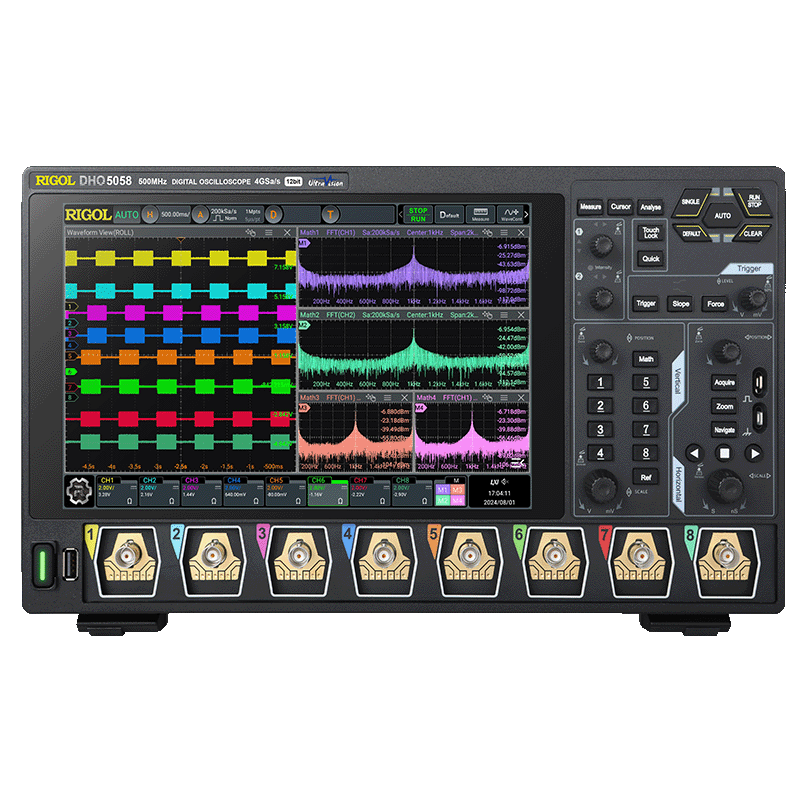

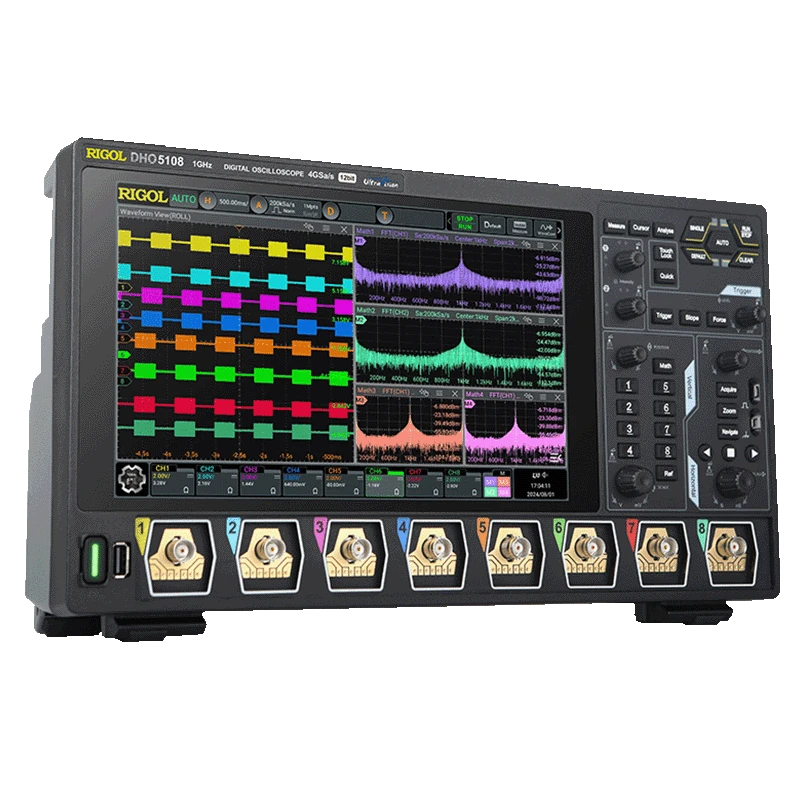

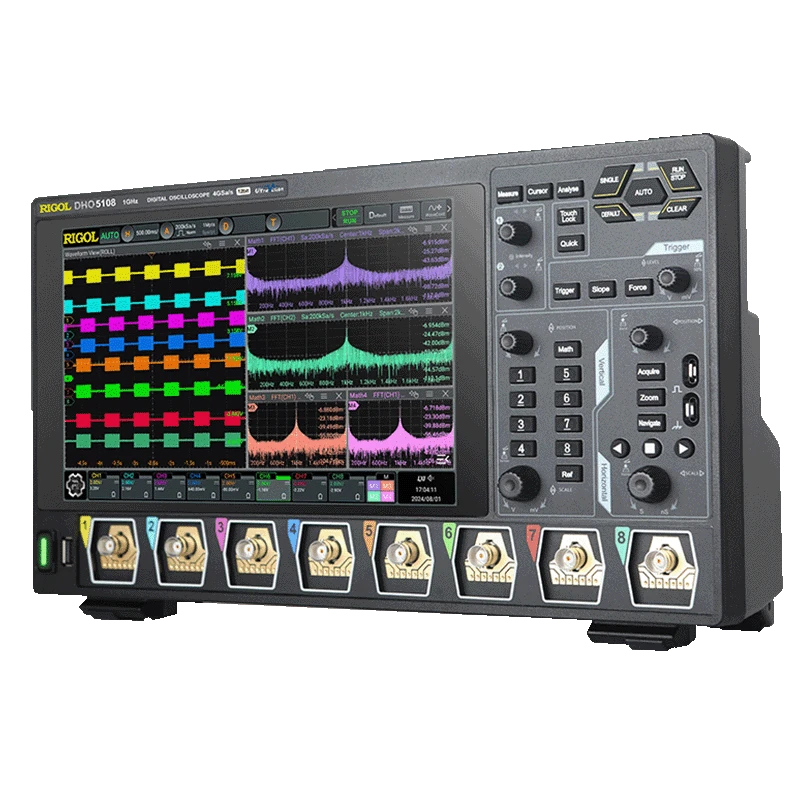

RIGOL High-Resolution Digital Oscilloscope DHO5000 Series
Model
Analog Bandwidth
Max Sample Rate
Analog Channels
Max Memory Depth
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | Max. 400 VA |
| Display | 10.1-inch capacitive multi-touch |
| Brand | Rigol |
| Power Supply | AC 100–240 V, 50–60 Hz |
| Dimensions | 335 × 235 × 154 mm |
| Model | DHO5000 Series |
| Operating System | Android |
| Weight | 5.3 Kg |
| Sampling rate | Up to 4 GSa/s (single & half-channel), 2 GSa/s (8-CH full-channel) |
| Processor | Cortex-A72 + Cortex-A53, 6-core |
| Display Resolution | 1280 × 800 pixels |
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% |
| Interfaces | USB 3.0 Host/Device, LAN (10/100/1000 Base-T, LXI-C), HDMI 1.4 |
| Analog bandwidth | 500 MHz / 1 GHz |
| Waveform Capture Rate | 1,000,000 wfms/s (Record mode), 200,000 wfms/s (Vector mode) |
| Number Of Analog Channels | 4, 6, or 8 |
| Vertical Resolution | 12-bit (up to 16-bit High-Resolution mode) |
| Maximum Input Voltage | 1 MΩ: CAT I 300 Vrms/400 Vpk; 50 Ω: 5 Vrms |
| Memory Depth | 500 Mpts (single & half-channel), 250 Mpts (full-channel) |
| Timebase Range | 200 ps/div to 500 s/div |
| Bandwidth Limit | 20 MHz / 250 MHz / Full (selectable) |
| Product Condition | New |
| MPN | DHO5000 Series |
| Oscilloscope Type | Digital, High-Resolution |
| RAM | 4 GB |
| Timebase Accuracy | ±1.5 ppm (±1 ppm/year) |
| Timebase Resolution | 20 ps |
| Waveform Recording | Up to 500,000 frames |
| Recommended Calibration Interval | 18 months |
| Number of Digital Channels | 16 (MHO models, logic probe required) |
| Minimum Vertical Sensitivity | 100 µV/div |
| Input Capacitance | 19 pF ±3 pF |
| External Trigger Bandwidth | 200 MHz |
Key Features
Rigol DHO5000 Series High-Resolution Digital Oscilloscope for advanced validation, debugging, and test applications.
- True 12-bit vertical resolution, expandable to 16-bit in High-Resolution mode.
- Analog bandwidth options up to 1 GHz supporting 4, 6, or 8 analog channels.
- Maximum real-time sampling rate of up to 4 GSa/s and deep memory depth of 500 Mpts per channel.
- Waveform capture rate up to 1,000,000 wfms/s for capturing complex, low-noise signal events.
- Minimum vertical sensitivity of 100 µV/div for high-precision measurements.
- 10.1-inch capacitive multi-touch display with 1280 × 800 resolution for intuitive operation.
- Advanced trigger, search, and navigation functions with event table and time navigation support.
- Integrated FFT, digital voltmeter, frequency counter, and optional dual-channel 50 MHz AFG.
- Portable testing supported by battery-powered design and versatile USB, LAN, HDMI connectivity.
- Supplied with 3-year mainframe warranty and recommended 18-month calibration interval.
Product Description
Rigol DHO5000 Series High-Resolution Digital Oscilloscope delivers industry-leading performance for advanced design validation, debugging, and precise test measurements across industrial, laboratory, and electronics applications. Featuring true 12-bit vertical resolution (expandable to 16-bit in High-Resolution mode), the oscilloscope provides unrivaled signal fidelity and low-noise analysis for power electronics, semiconductor development, and embedded system diagnostics.
- Bandwidths up to 1 GHz and up to 8 analog channels plus 16 digital channels (MHO models) enable versatile analysis of complex signals.
- Real-time sampling up to 4 GSa/s and memory depths up to 500 Mpts per channel, allowing long and deep signal storage for comprehensive debugging.
- High-speed waveform capture rate up to 1,000,000 wfms/s using UltraAcquire fast record mode helps in capturing rare transient events.
- Advanced triggering options include standard and serial triggers for protocols like UART, I2C, SPI, and CAN, with optional advanced protocol support.
- Comprehensive math functions (FFT, arithmetic, integration, logic, filters), built-in digital voltmeter, high-precision frequency counter, and spectrum analysis support advanced signal analysis requirements.
- 10.1-inch capacitive multi-touch display with clear 1280 × 800 resolution ensures ease of use and crisp visualization of all functions.
- Automatic measurements of 41 parameters, histogram, pass/fail testing, waveform search and navigation, and 256-level color grade display enhance data analysis.
- Flexible connectivity with USB 3.0, LAN (LXI-C), and HDMI 1.4 output, plus AUX and trigger out for integration into laboratory and manufacturing setups.
Physical characteristics include robust design, portable battery-powered operation, and compact dimensions of 335 × 235 × 154 mm, with a weight of 5.3 kg (excluding packaging). The oscilloscope is ideal for use across R&D, quality assurance, manufacturing, and educational labs. Set includes mainframe, standard accessories, and mainframe-only 3-year warranty. For more information on advanced measuring and testing solutions, explore other Rigol products and EnvMart's complete range of oscilloscopes and laboratory instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DHO5000 Series oscilloscope offers analog bandwidth options up to 1 GHz.
The oscilloscope supports 4, 6, or 8 analog channels, depending on the model.
The oscilloscope has a maximum real-time sampling rate of up to 4 GSa/s for single and half-channel configurations.
The oscilloscope features a memory depth of 500 Mpts per channel for single and half-channel use, and 250 Mpts for full-channel use.
Yes, the Rigol DHO5000 Series oscilloscope supports portable testing with its battery-powered design.
The oscilloscope features a 10.1-inch capacitive multi-touch display with a resolution of 1280 × 800 pixels.
The oscilloscope has a minimum vertical sensitivity of 100 µV/div for high-precision measurements.
Yes, the oscilloscope comes with a 3-year mainframe warranty.
The oscilloscope includes USB 3.0, LAN (LXI-C), and HDMI 1.4 output for versatile connectivity.
The recommended calibration interval for the Rigol DHO5000 Series oscilloscope is 18 months.
The oscilloscope weighs 5.3 kg (excluding packaging).
