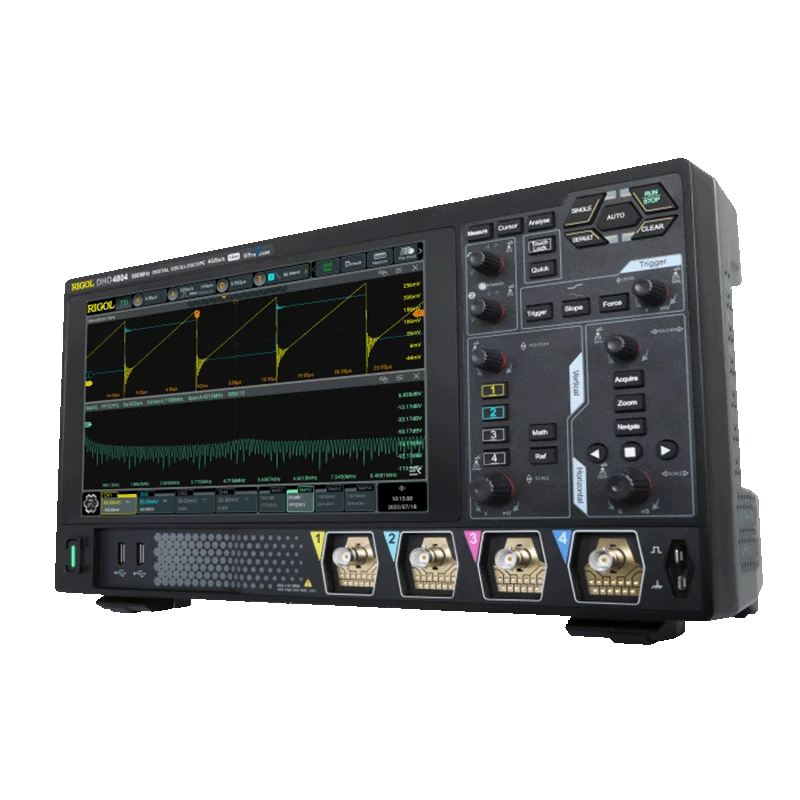

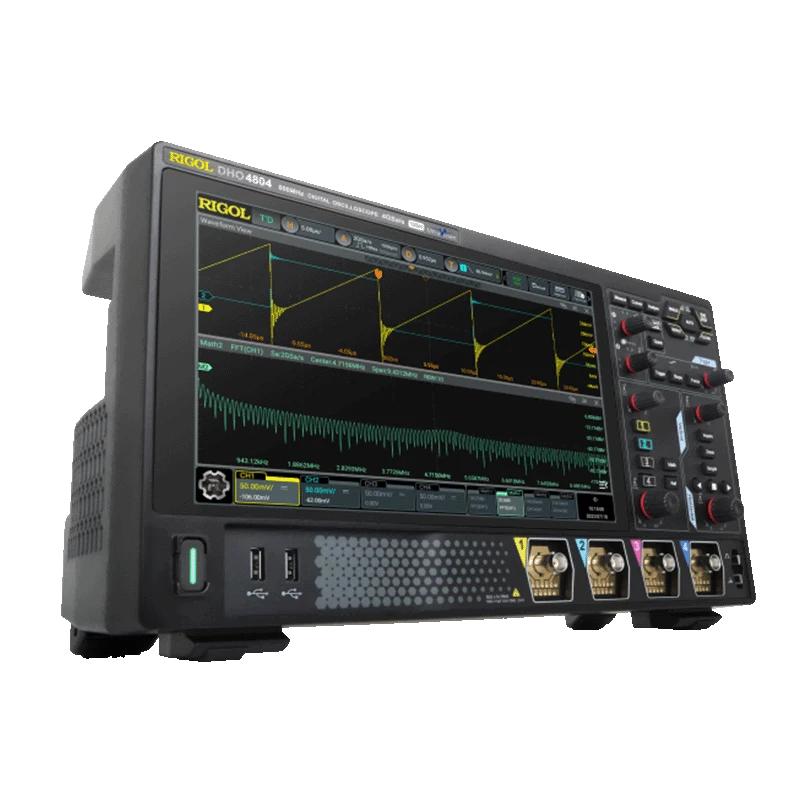

RIGOL High-Resolution Digital Oscilloscope DHO4000 Series
Model
Analog Bandwidth
Max Sample Rate
Analog Channels
Max Memory Depth
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | Max. 400 VA |
| Display | 10.1-inch capacitive touchscreen, 1280×800 |
| Brand | Rigol |
| Power Supply | 100–240 V AC, 50–60 Hz |
| Operating Temperature | 0°C to +50°C |
| Dimensions | 358.14 x 214.72 x 120.62 mm |
| Model | DHO4000 Series |
| Input Channels | 4 |
| Weight | 3.8 kg |
| Interfaces | USB 3.0, LAN (10/100/1000), HDMI, AUX, 10 MHz Ref |
| Waveform Capture Rate | Up to 1,500,000 wfms/s (UltraAcquire) |
| External Trigger | 1 |
| Vertical Resolution | 12 bits (up to 16 bits in HR mode) |
| Memory Depth | Up to 500 Mpts |
| Timebase Range | 500 ps/div to 1 ks/div |
| Sample Mode | Real-time |
| Product Condition | New |
| MPN | DHO4000 Series |
| Packaging Contents | Main unit, power cable, user manual (see model for included accessories) |
| Timebase Accuracy | ±1.5 ppm |
| Timebase Resolution | 100 ps |
| Integrated Instruments | Oscilloscope, spectrum analyzer, voltmeter, frequency counter, protocol analyzer |
| Waveform Recording | Up to 500,000 frames |
| Analog Bandwidth (50 Ω) | Up to 800 MHz |
| Analog Bandwidth (1 MΩ) | Up to 500 MHz |
| Vertical Sensitivity (1 MΩ) | 100 µV/div to 10 V/div |
| Vertical Sensitivity (50 Ω) | 100 µV/div to 1 V/div |
| Real-Time Sample Rate | 4 GSa/s |
Key Features
Rigol DHO4000 Series high-resolution digital oscilloscope provides advanced 12-bit signal analysis for research, R&D, and embedded engineering applications.
- True 12-bit vertical resolution with up to 16-bit in high-resolution mode.
- Analog bandwidth up to 800 MHz with selectable models of 200, 400, or 800 MHz.
- 4 analog input channels and 1 external trigger for flexible measurement.
- Real-time sampling rates up to 4 GSa/s enable detailed waveform analysis.
- Ultra-deep memory up to 500 Mpts ensures long-time signal capture.
- Waveform capture rates up to 1,500,000 wfms/s with UltraAcquire mode.
- 10.1-inch 1280×800 HD multi-touch capacitive display allows ease of use.
- Ultra-low noise front-end for microvolt-level signal acquisition.
- Advanced triggering, decoding, and integrated instrument functions: spectrum analyzer, digital voltmeter, frequency counter, protocol analyzer.
- Support for USB 3.0, LAN, HDMI, Web control, and optional battery pack for portable use.
Product Description
Rigol DHO4000 Series high-resolution digital oscilloscopes deliver exceptional performance for demanding signal analysis in power electronics, semiconductor testing, R&D, and advanced industrial and laboratory environments. Featuring Rigol's Centaurus acquisition platform, these true 12-bit scope models provide superior signal fidelity, low noise, and deep memory—extending up to 500 Mpts—for capturing fine event details.
With selectable bandwidths (DHO4204: 200 MHz, DHO4404: 400 MHz, DHO4804: 800 MHz), a high sample rate (up to 4 GSa/s), and a large 10.1-inch capacitive touchscreen, the DHO4000 Series supports advanced debugging and measurement needs for precision analog designs, low-level signal testing, and power integrity analysis. The UltraAcquire mode ensures fast waveform acquisition at up to 1,500,000 wfms/s, while integrated spectrum analyzer, voltmeter, frequency counter, and protocol analyzer extend instrument utility.
- True 12-bit vertical resolution (up to 16-bit in high-resolution mode).
- Bandwidths up to 800 MHz for a wide variety of high-speed digital and analog measurements.
- 4 analog channels, 1 external trigger; wide selection of triggering and decoding options.
- Real-time sample rate up to 4 GSa/s; deep memory up to 500 Mpts.
- Comprehensive measurement, math, analysis, and storage tools.
- Advanced connectivity: HDMI, USB 3.0, LAN, and remote web control.
- Ultra-low noise performance and vertical sensitivity down to 100 µV/div.
Designed for use in industrial, laboratory, education, power electronics, embedded systems, and manufacturing test environments. Applications include power-rail and supply validation, analog and mixed-signal circuit debugging, failure analysis, and production QA. Includes main oscilloscope unit, power cable, and user manual; other accessories as per model selection.
Explore the full range of digital oscilloscopes and Rigol test instruments on EnvMart for all your laboratory and industrial measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DHO4000 Series oscilloscope offers selectable bandwidths up to 800 MHz, with models available at 200 MHz, 400 MHz, and 800 MHz.
The Rigol DHO4000 Series features 4 analog input channels along with 1 external trigger for flexible measurement capabilities.
This oscilloscope provides a real-time sampling rate of up to 4 GSa/s, enabling detailed waveform analysis.
The Rigol DHO4000 Series offers a true vertical resolution of 12 bits, which can be extended to 16 bits in high-resolution mode.
The oscilloscope has a memory depth of up to 500 Mpts, allowing for long-time signal capture.
It is equipped with a 10.1-inch capacitive touchscreen display with a resolution of 1280×800 for ease of use.
The oscilloscope supports USB 3.0, LAN, HDMI, and has options for remote web control, enhancing its connectivity.
The operating temperature range for this oscilloscope is from 0°C to +50°C, making it suitable for various environments.
The package includes the main oscilloscope unit, a power cable, and a user manual. Additional accessories depend on the specific model selected.
The Rigol DHO4000 Series is manufactured in China.
