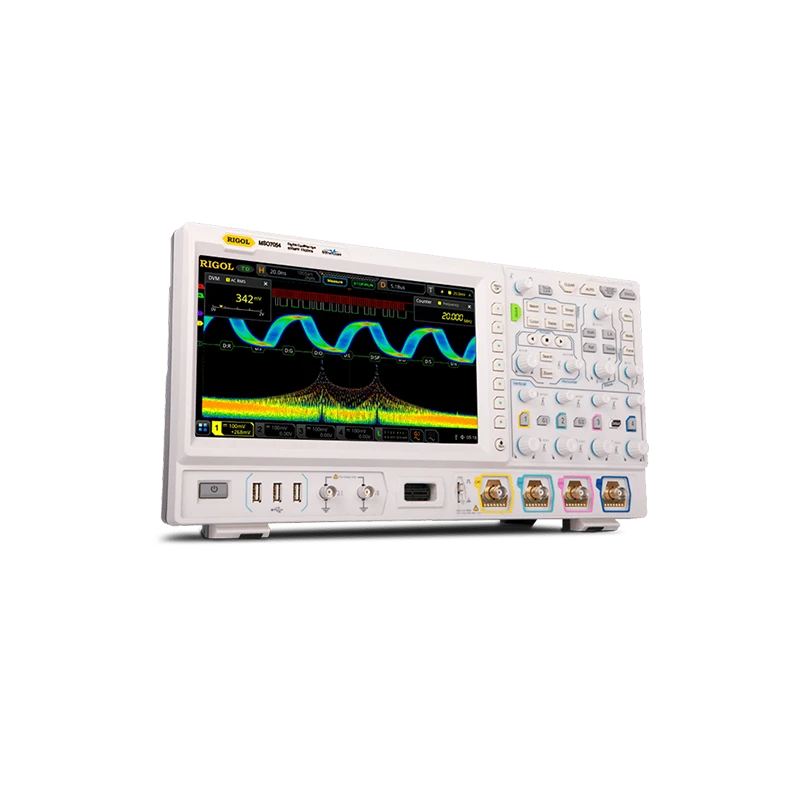

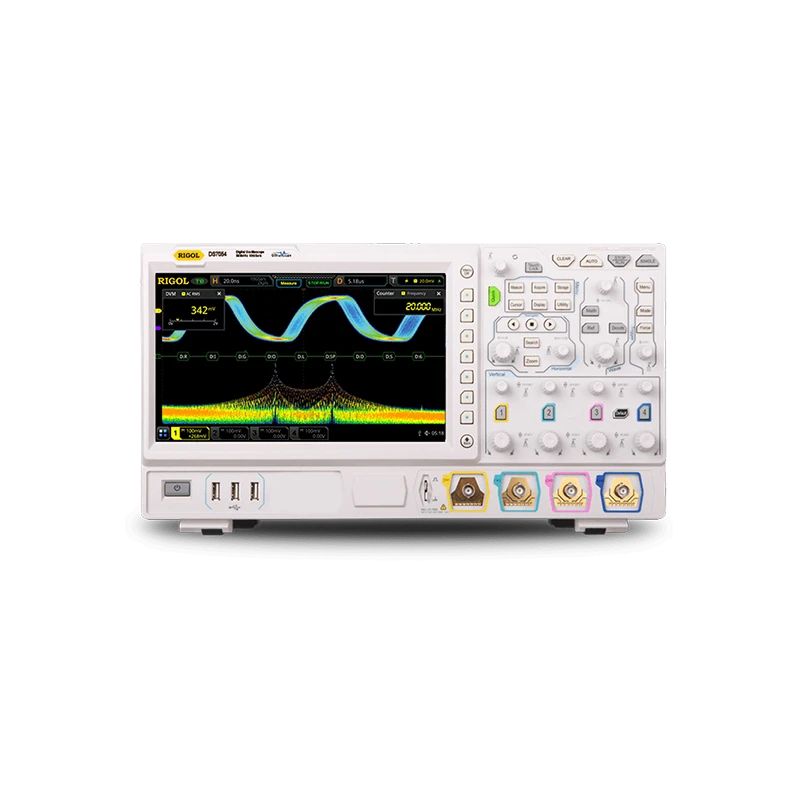

Rigol Digital Oscilloscope MSO7000 Series
Model
Analog Bandwidth
Digital Channels
Analog Channels
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | Max. 200 W |
| Display | 10.1-inch capacitive multi-touch |
| Brand | Rigol |
| Power Supply | 100–240 V AC, 45–440 Hz |
| Operating Temperature | 0°C to +50°C |
| Dimensions | 410 × 224 × 135 mm |
| Model | MSO7000 |
| Weight | 3.9 Kg |
| Series | MSO7000 |
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% |
| Waveform Capture Rate | ≥600000 wfms/s |
| LAN | 10/100/1000, LXI-C |
| Number Of Analog Channels | 4 |
| Vertical Resolution | 8 bits (12-bit high-resolution mode) |
| Memory Depth | 100 Mpts (standard), up to 500 Mpts (optional) |
| Trigger Types | Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Zone Trigger |
| Product Condition | New |
| MPN | MSO7000 |
| Bandwidth Options | 100 MHz / 200 MHz / 350 MHz / 500 MHz |
| Number of Digital Channels | 16 (MSO models only) |
| Max Real-Time Sample Rate | 10 GSa/s (single-channel) |
| Rise Time (typical) | ≤700 ps (500 MHz) |
| USB Host Ports | 4 |
| HDMI Output | Yes |
Key Features
Rigol MSO7000 Series high-performance digital and mixed-signal oscilloscope for advanced debugging and industrial electronics.
- Offers 4 analog channels and 16 digital channels for comprehensive signal analysis.
- Maximum analog bandwidth up to 500 MHz, supporting upgrade options.
- Real-time sampling rate up to 10 GSa/s for precise waveform capture.
- Ultra-deep memory up to 500 Mpts for extended acquisition sessions.
- 10.1-inch capacitive multi-touch display ensures intuitive operation.
- Advanced debug features including 41 automatic measurements and hardware-based pass/fail testing.
- Integrated spectrum analyzer, logic analyzer, digital voltmeter, and frequency counter.
- Flexible connectivity with USB, LAN, and HDMI outputs for versatile use.
- Supports protocol decoding for serial buses like I2C, SPI, UART, CAN, LIN, and others (optional).
Product Description
Rigol MSO7000 Series digital and mixed-signal oscilloscope delivers high-performance signal integrity analysis for industrial, manufacturing, laboratory, and R&D applications. Featuring UltraVision II architecture, this oscilloscope supports up to 4 analog channels, 16 digital channels (on MSO models), and 500 MHz bandwidth, making it ideal for embedded system development, power electronics testing, automotive diagnostics, and industrial automation troubleshooting.
The oscilloscope offers a real-time sampling rate up to 10 GSa/s, hardware full-memory measurement up to 500 Mpts, and a waveform capture rate of ≥600000 wfms/s. Its 10.1-inch capacitive multi-touch display provides a superior viewing and control experience. Enhanced FFT analysis, 41 automatic measurement parameters, and hardware-based pass/fail tests equip the user with advanced debug and validation tools.
- 4 analog channels, 16 digital channels (MSO version).
- Bandwidth options: 100/200/350/500 MHz (upgradeable).
- Standard memory depth: 100 Mpts; optional up to 500 Mpts.
- Advanced protocol decoding (optional) for I2C, SPI, CAN, LIN, UART, and more.
- Extensive integrated instruments: spectrum analyzer, logic analyzer, digital voltmeter, 6-digit frequency counter, arbitrary waveform generator (optional).
- Reliable hardware-based pass/fail testing, histogram, and waveform search.
- Industrial-grade interfaces: 4× USB Host, USB Device, LAN (LXI-C), HDMI, TRIG OUT, Pass/Fail output, with optional USB-GPIB.
- Powerful acquisition system optimized for glitch detection: captures events down to 400 ps.
- UltraVision II with 256-level intensity grading and high-resolution modes up to 12 bits.
The MSO7000 Series supports applications such as embedded and mixed-signal debugging, power electronics, validation/laboratory research, automotive electronics, and industrial control. The oscilloscope's robust design meets laboratory and manufacturing demands.
Box includes: Main unit, standard accessories, and comprehensive documentation. Weighs under 3.9 kg and features compact dimensions (410 × 224 × 135 mm) for bench and rack use. 3-year standard warranty on mainframe. Browse more Rigol oscilloscopes and industrial test solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol MSO7000 Series oscilloscope offers a maximum bandwidth of up to 500 MHz, with upgrade options available for lower bandwidths of 100, 200, and 350 MHz.
The Rigol MSO7000 supports 4 analog channels and 16 digital channels for comprehensive mixed-signal analysis.
The oscilloscope has a real-time sampling rate of up to 10 GSa/s, allowing for precise waveform capture.
The standard memory depth is 100 Mpts, with an optional upgrade available for up to 500 Mpts for extended acquisition sessions.
Yes, the Rigol MSO7000 supports optional protocol decoding for various serial buses including I2C, SPI, UART, CAN, and LIN.
It features a 10.1-inch capacitive multi-touch display that ensures intuitive operation and a superior viewing experience.
The oscilloscope includes 41 automatic measurements and hardware-based pass/fail testing to enhance debugging capabilities.
The Rigol MSO7000 offers flexible connectivity options including USB, LAN, and HDMI outputs for versatile use.
The oscilloscope weighs under 3.9 kg and has dimensions of 410 × 224 × 135 mm, making it suitable for bench and rack use.
The Rigol MSO7000 comes with a 3-year standard warranty on the mainframe, ensuring reliability and support.
