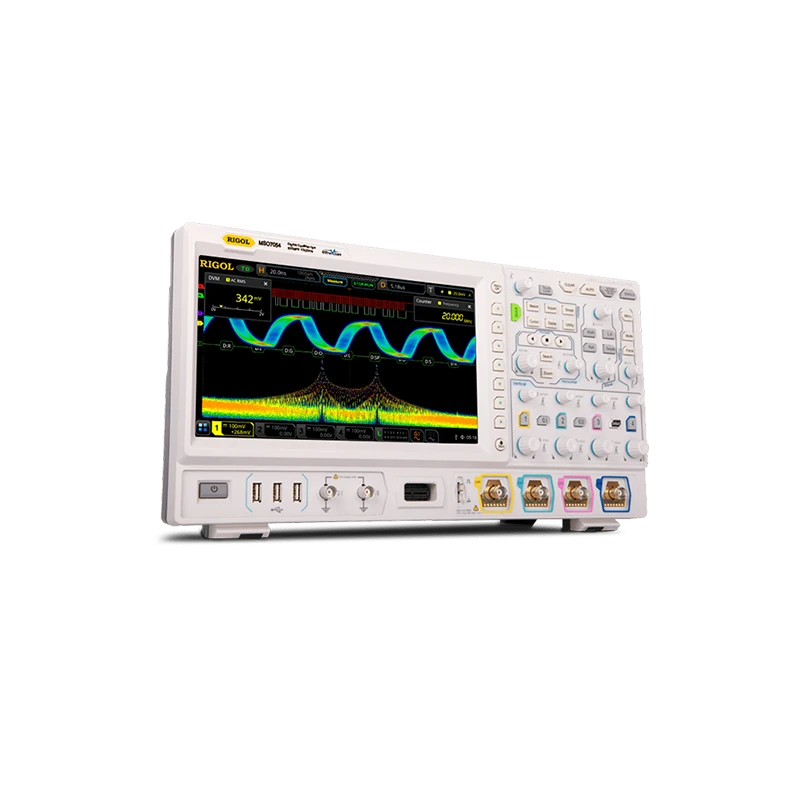

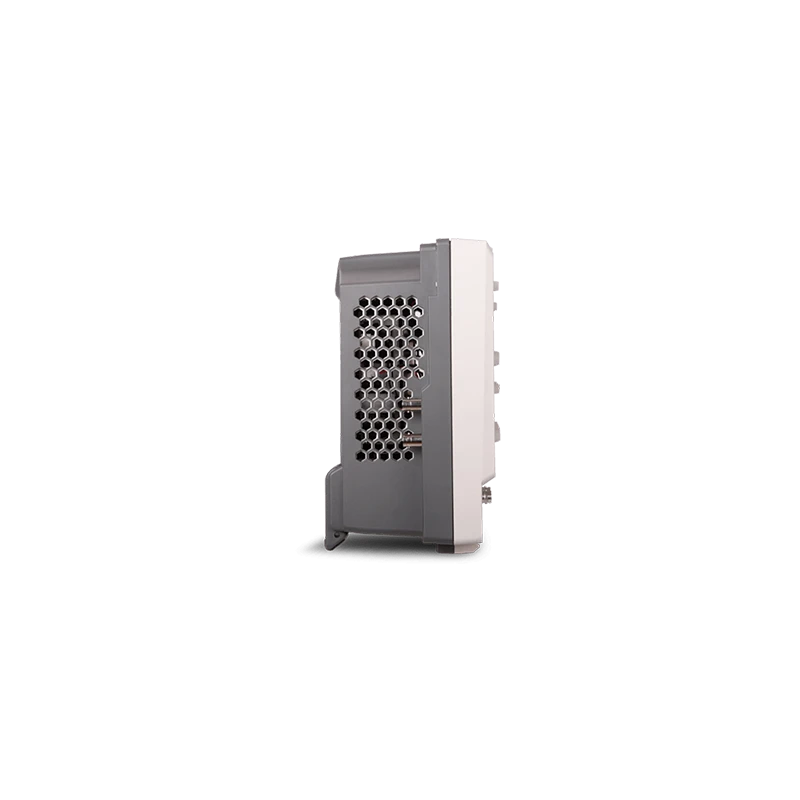

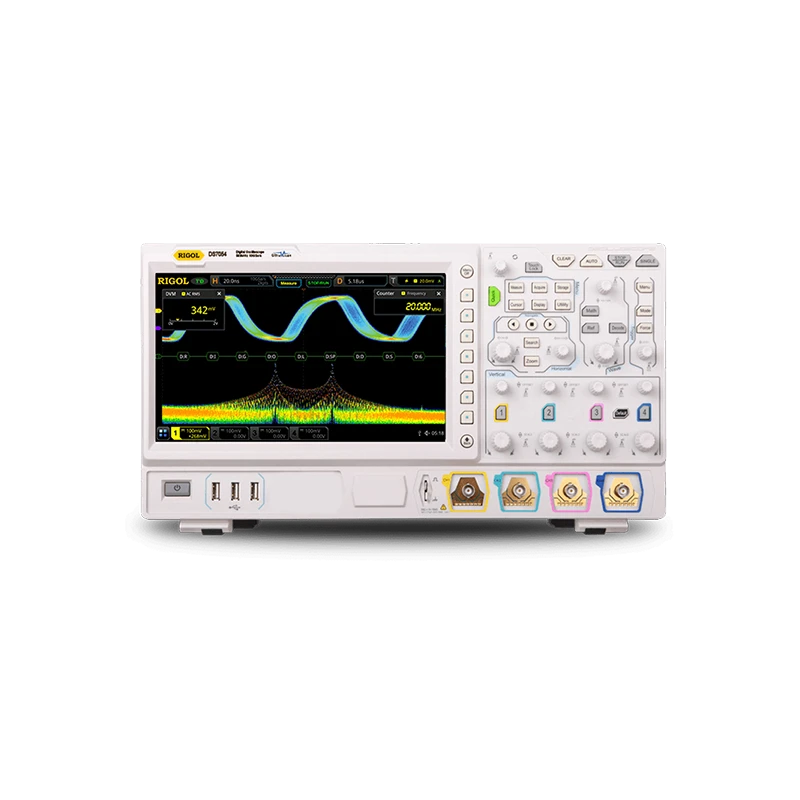

Rigol DS7000 Series Digital Oscilloscope, 4 Channels, Up to 500 MHz, 10 GSa/s, 500 Mpts Memory, UltraVision II
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | Max. 200 W |
| Brand | Rigol |
| Power Supply | 100–240 V AC, 45–440 Hz |
| Operating Temperature | 0°C to +50°C |
| Dimensions | 410 × 224 × 135 mm |
| Display Size | 10.1 inch |
| Connectivity | USB Host ×4, USB Device ×1, LAN, HDMI |
| Model | DS7000 Series |
| Weight | 3.9 Kg |
| Sampling rate | Up to 10 GSa/s |
| Display Resolution | 1024 × 600 |
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% |
| Channels | 4 Analog, 16 Digital (MSO models) |
| Analog bandwidth | 100/200/350/500 MHz |
| Waveform Capture Rate | ≥600000 wfms/s |
| Use Cases | Embedded and mixed-signal debugging, industrial control, automation, power electronics, automotive, R&D labs |
| Trigger Modes | Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge, Zone Trigger |
| Vertical Resolution | 8 bits (12-bit high-resolution mode) |
| Memory Depth | Up to 500 Mpts |
| Product Condition | New |
| Rack Mount | 6U |
| Recommended Calibration Interval | 18 months |
Key Features
Rigol DS7000 Series Digital Oscilloscope offers advanced signal analysis and debugging capabilities, ideal for industrial and laboratory environments.
- Supports up to 500 MHz analog bandwidth (software upgradeable).
- Delivers a real-time sampling rate of up to 10 GSa/s for precise measurements.
- Equipped with 4 analog input channels and 1 external trigger input.
- Optional 16 digital channels available for mixed-signal analysis on MSO models.
- Deep memory up to 500 Mpts enables capturing long-duration waveforms.
- High-speed waveform capture rate of ≥600000 wfms/s maximizes signal fidelity.
- Comprehensive hardware and software analysis tools including enhanced FFT, histogram, and pass/fail testing.
- Features a 10.1-inch capacitive multi-touch display for intuitive operation.
- Provides connectivity via USB, LAN, and HDMI, with web control and remote operation support.
Product Description
Rigol DS7000 Series Digital Oscilloscope, featuring UltraVision II technology, is engineered for advanced debugging, signal integrity analysis, and precision measurements in electronics labs, industrial environments, and R&D applications. This oscilloscope series provides up to 500 MHz analog bandwidth (upgradeable), real-time sample rate of up to 10 GSa/s, and large maximum memory depth up to 500 Mpts, making it exceptionally well-suited for capturing high-speed, high-resolution signals. With 4 analog channels, 1 external trigger, and, on MSO configurations, up to 16 integrated digital channels, the DS7000 Series supports comprehensive analog and mixed-signal development.
- Analog bandwidth options: 100 MHz, 200 MHz, 350 MHz, 500 MHz (upgradeable via software).
- Sampling rate: up to 10 GSa/s (single-channel), with deep memory for extensive waveform capture and analysis.
- Memory depth: Standard 100 Mpts; options for 250 Mpts and up to 500 Mpts for extended signal capture.
- Waveform capture rate: ≥600000 wfms/s, supporting efficient debugging of intermittent issues and glitches down to 400 ps.
- Vertical resolution: Standard 8 bits and up to 12 bits in high-resolution mode for accurate signal representation.
- Input impedance: 1 MΩ ±1%, 50 Ω ±1% selectable per channel.
- Comprehensive trigger modes include edge, pulse, video, pattern, duration, runt, and serial protocol triggers (RS232/UART, I2C, SPI, CAN, LIN, and more with options).
- 41 automatic waveform measurements, advanced FFT analysis with peak search, hardware-based pass/fail testing, and enhanced histogram analytics.
- Large 10.1-inch capacitive multi-touch color display (1024 × 600) offers flexible operation and navigation.
- Rich interface connectivity, including USB host/device, LAN (LXI-C), and HDMI output for laboratory and industrial integration.
- Supported by web control and remote operation capabilities for seamless system integration.
Package typically includes main oscilloscope unit, standard probes, power cable, and user documentation. Suitable for use in embedded system development, industrial control, power electronics, automotive electronics, R&D labs, academic institutions, and validation environments.
Discover more measuring and industrial testing devices from Rigol and related brands in the Oscilloscope category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DS7000 Series oscilloscope supports up to 500 MHz analog bandwidth, which is upgradeable via software.
The oscilloscope features 4 analog input channels and 1 external trigger input. Additionally, MSO models can have up to 16 optional digital channels for mixed-signal analysis.
The oscilloscope provides a real-time sampling rate of up to 10 GSa/s, allowing for precise measurements.
The oscilloscope has a standard memory depth of 100 Mpts, with options to upgrade to 250 Mpts and up to 500 Mpts for extended signal capture.
Yes, the oscilloscope offers connectivity via USB, LAN, and HDMI, enabling integration with computers and other devices.
The Rigol DS7000 Series includes various trigger modes such as edge, pulse, video, pattern, duration, runt, and serial protocol triggers (including RS232/UART, I2C, SPI, CAN, LIN, and more).
The oscilloscope features a large 10.1-inch capacitive multi-touch color display with a resolution of 1024 × 600, providing an intuitive user interface.
Yes, the Rigol DS7000 Series is designed for use in industrial environments, electronics labs, R&D applications, and validation environments.
The oscilloscope has a high-speed waveform capture rate of ≥600,000 wfms/s, which helps in efficiently debugging intermittent issues.
The package typically includes the main oscilloscope unit, standard probes, a power cable, and user documentation.
