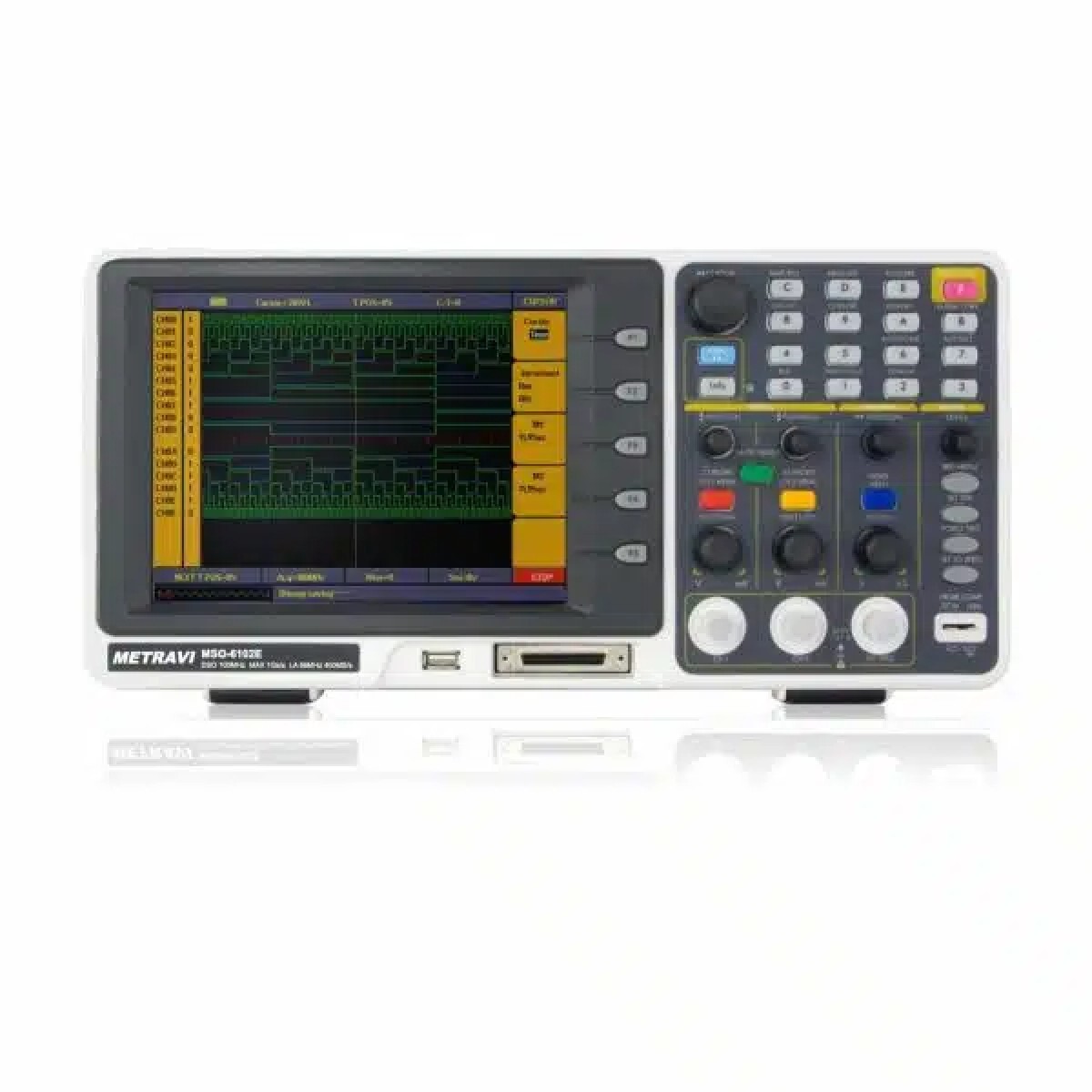

Metravi Mixed Signal Oscilloscope MSO-6102E
Specifications
| Country of Origin | India |
|---|---|
| Channel Isolation | 50Hz–100 |
| Package Contents | Metravi MSO-6102E Mixed Signal Oscilloscope with Logic Analyser / Passive probe |
| Brand | Metravi |
| Model | MSO-6102E |
| Bandwidth | 100MHz |
| Input Impedance | 1MΩ±2%in parallel with15pF±5pF |
| Sample Rate | 1GS/s(half channel) |
| Channels | 2+1(external) |
| Modes | Normal/Peak Detect/Averaging |
| Input Coupling | DC/AC/Ground |
| Probe Attenuation | 1X/10X/100X/1000X |
| Waveform Storage | 4 waveforms |
| Waveform Math | + |
| Cursor | ΔV and ΔT between cursors |
| Auto Measurement | Vpp/Vmax/Vmin/Vtop/Vbase/Vamp/Vavg/Vrms/Overshoot/Preshoot/Freq/Period/Rise Time/Fall Time/Delay A→B/+Width/−Width/+Duty/−Duty |
| Logic Analyser Sample Rate | 20S/s–1GS/s |
| Logic Analyser Channels | 16 |
| Logic Analyser Max Storage | 4M/channel(16K@250MS/s–1GS/s) |
| Logic Analyser Bandwidth | 100MHz. |
| 1 | 1 (10 |
Key Features
- 100MHz bandwidth
- 1GS/s half channel*, 500MS/s each
- Channel (half channel is when only one he channel is turned on)
- Dual channel
- 2M points on each channel for the
- Record length
- Reading out with the cursor
- 20 automatic measurement functions
- Auto-scale function
- High resolution, high contrast, color
- LCD with adjustable backlight
- Storage and call-out of waveforms
- The automatic setting function is capable of fast-setting
- Multiple-waveform calculation function
- Built-in FFT function
- Implementation of detecting the average and peak values of the waveform
- Digital real-time oscilloscope edge, video, alternate, pulse, and slope triggering function
Product Description
Metravi MSO-6102E Mixed Signal Oscilloscope combines analog and digital signal testing in a single compact unit. It provides high-speed sampling, deep memory, and wide bandwidth for complex waveform analysis. Supporting up to 16 digital channels and 2 analog channels, it’s perfect for debugging embedded systems and mixed circuits. The MSO-6102E offers USB connectivity, intuitive interface, and multi-trigger options. Ideal for research labs and design engineers, it ensures versatile, high-precision signal testing.
Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.
