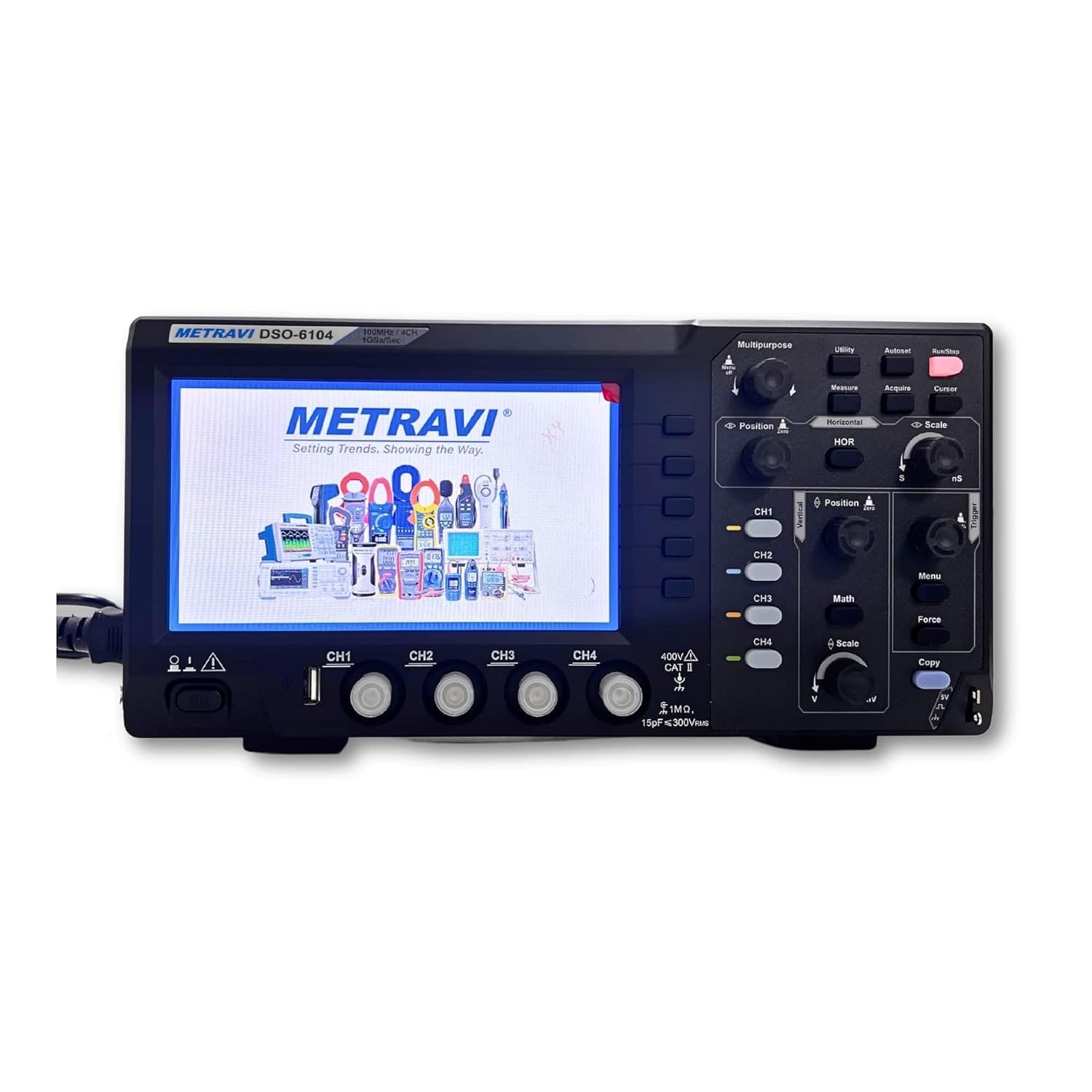

Metravi Digital Storage Oscilloscope PDSO-6104A
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PDSO-6104A Four Channel Digital Storage Oscilloscope / Power Cord / Software User / Manual USB / Cable Probe / Probe Adjust / Soft Bag |
| Interval Accuracy | Single±(1interval+100ppm×reading+0.6ns)-AvgGreater than 16±(1interval+100ppm×reading+0.4ns) |
| Max Input Voltage | 400V(PK-PK)(DC+ACPK-PK) |
| Power Consumption | Less than 15W |
| Display | 7"colorLCD(800×480pixels) |
| Brand | Metravi |
| Power Supply | 100–240VAC50/60HzCATII |
| Interface | USBHost/USBDevice |
| Dimensions | 301×152×70mm |
| Model | PDSO-6104A |
| Weight | 1.10kg |
| Bandwidth | 100MHz |
| Input Impedance | 1MΩ±2%‖20pF±5pF |
| Sample Rate | 1GS/s |
| Channels | 4 |
| Record Length | 20K |
| Fuse | 2A(Tclass250V) |
| Trigger Mode | Auto/Normal/Single |
| Input Coupling | DC/AC/GND |
| Vertical Resolution | 8bits(2ch simultaneous) |
| DC Gain Accuracy | ±3% |
| Trigger Type | Edge/Video |
| Rise Time | ≤3.5ns |
| Auto Measurements | Vpp |
| Frequency Counter | Yes |
| Trigger Level | ±5divisions from screen center |
| Horizontal Scale | 2ns/div–1000s/div(step1–2–5) |
| Vertical Sensitivity | 5mV/div–5V/div |
| Cursor Measurement | AV/ATbetween cursors |
| Probe Attenuation | 1X/10X/100X/1000X |
| Interpolation | sin(x)/x |
| Waveform Storage | 16waveforms |
| -3dB) | ≥10Hz |
| Sample Rate/Relay Time Accuracy | ±100ppm |
| Waveform Math | + |
| Phase Difference | ±3° |
| DC Accuracy(Avg≥16) | ±(3%reading+0.05div) |
| Video Standard | NTSC/PAL/SECAM |
| Lissajous Bandwidth | Full |
Key Features
- Bandwidth: 100MHz
- 4-Channel
- Sample rate: 1GS/s
- Ultra-thin body
- 7-inch high-resolution color LCD
- SCPI and LabVIEW supported
Product Description
Metravi PDSO-6104A Digital Storage Oscilloscope is a powerful and versatile four-channel testing instrument designed for advanced waveform analysis in electronics, research, and industrial diagnostics. Featuring a 100MHz bandwidth and a high-speed 1GS/s sampling rate, it ensures precise capture of fast and complex signals. The large 7-inch color LCD display provides clear visualization, enabling easy interpretation of waveforms and measurement data. With a memory depth of 20K and multiple trigger modes including auto, normal, and single, it delivers flexible and reliable signal acquisition. The oscilloscope supports AC/DC/GND input coupling, waveform math functions, cursor measurements, and frequency counting for comprehensive analysis. Compact and efficient, with low power consumption under 15W, the Metravi PDSO-6104A is ideal for engineers, technicians, and laboratories requiring accurate troubleshooting, circuit testing, and electronic design validation. Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bandwidth of this model is 100MHz, allowing it to capture fast and complex signals effectively.
It has a maximum sample rate of 1GS/s, which supports precise waveform analysis.
This oscilloscope features four channels, enabling multi-signal analysis.
The oscilloscope is equipped with a 7-inch color LCD display with a resolution of 800×480 pixels for clear visualization of waveforms.
It supports DC, AC, and GND input coupling, providing versatility for different measurement scenarios.
The maximum input voltage is 400V (PK-PK) for both DC and AC signals.
The dimensions are 301×152×70mm, and it weighs 1.10kg, making it compact and portable.
It operates on a power supply of 100–240VAC at 50/60Hz, rated for CATII.
It can perform auto measurements such as Vpp, frequency counting, and cursor measurements for detailed analysis.
The oscilloscope has a memory depth of 20K, allowing for detailed waveform storage.
It offers multiple trigger modes including auto, normal, and single for flexible signal acquisition.
The package includes the oscilloscope, power cord, software user manual, USB cable, probe, probe adjust, and a soft bag for storage.
