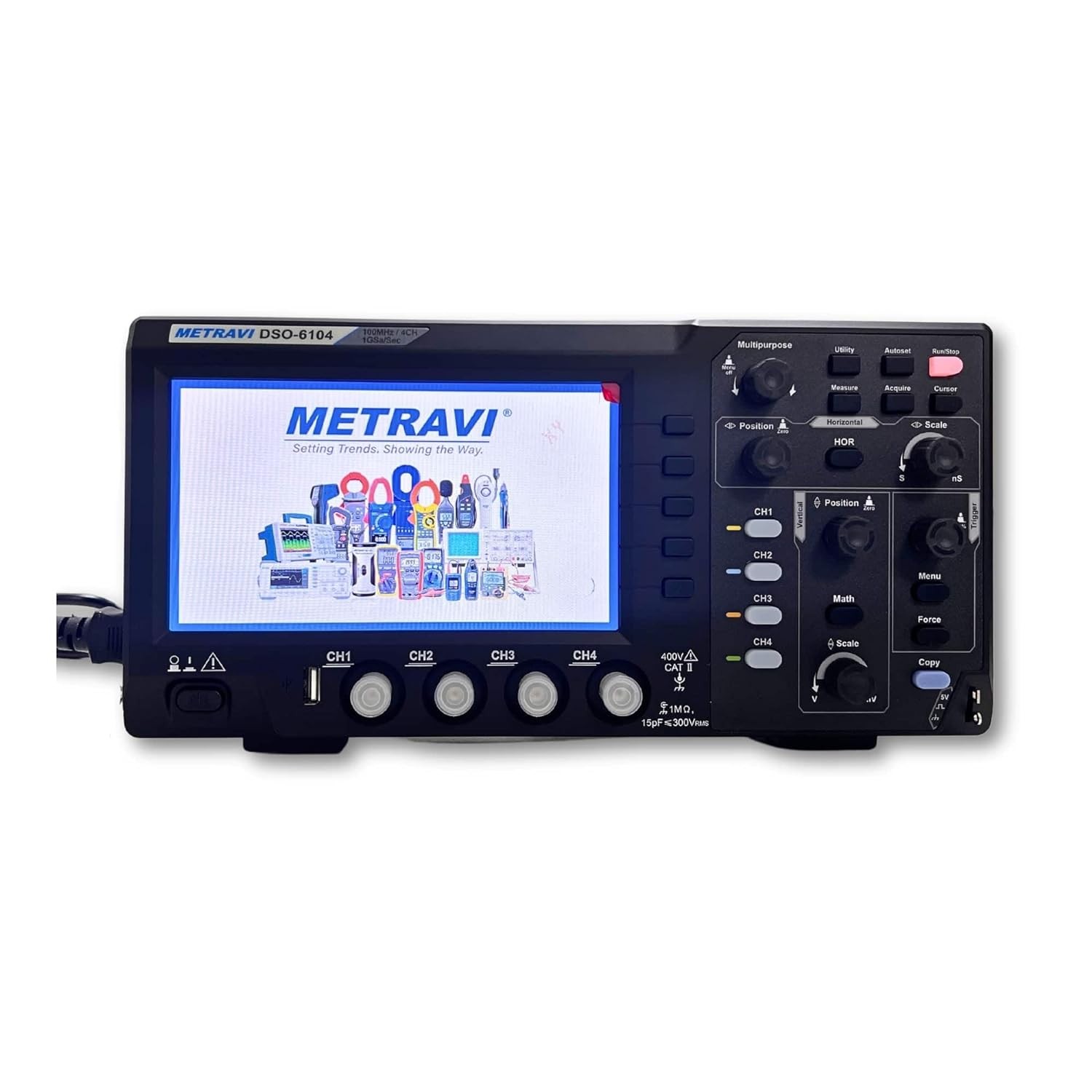

Metravi Digital Storage Oscilloscope DSO-6104
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi DSO-6104 Four Channel Digital Storage Oscilloscope / Power Cord / Software / User Manual / USB Cable / Probe / Probe Adjust / Soft Bag |
| Interval Accuracy | Single |
| Max Input Voltage | 400V(PK-PK)(DC+ACPK-PK) |
| Power Consumption | Less than 15W |
| Display | 7"colorLCD(800×480pixels) |
| Brand | Metravi |
| Power | 100–240VAC |
| Interface | USBHost/USBDevice |
| Dimensions | 301×152×70mm |
| Model | DSO-6104 |
| Weight | 1.10kg. |
| Bandwidth | 100MHz |
| Input Impedance | 1MΩ±2%‖20pF±5pF |
| Sample Rate | 1GS/s |
| Channels | 4 |
| Record Length | 20K |
| Fuse | 2A(Tclass |
| Trigger Mode | Auto/Normal/Single |
| Input Coupling | DC/AC/GND |
| Vertical Resolution | 8bits(2ch simultaneous) |
| DC Gain Accuracy | ±3% |
| Trigger Type | Edge/Video |
| Rise Time | ≤3.5ns |
| Auto Measurements | Vpp |
| Frequency Counter | Available |
| Trigger Level | ±5divisions from screen center |
| Horizontal Scale | 2ns/div–1000s/div(1-2-5step) |
| Vertical Sensitivity | 5mV/div–5V/div |
| Cursor Measurement | AV |
| Probe Attenuation | 1X/10X/100X/1000X |
| Interpolation | sin(x)/x |
| Waveform Storage | 16waveforms |
| -3dB) | ≥10Hz |
| Sample Rate/Relay Time Accuracy | ±100ppm |
| Waveform Math | + |
| DC Accuracy(average≥16) | ±(3%reading+0.05div) |
| Video Frequency | NTSC/PAL/SECAM |
| Lissajous | Fullbandwidth |
| Phase Difference | ±3° |
Key Features
- Bandwidth: 100MHz
- Channel: Four (4)
- Sample Rate: 1G/s
- Sample Rate/Relay Time Accuracy: ±100ppm
- Display: 7″ colour LCD, 800 x 480 pixels
- Probe Attenuation Factor: 1X, 10X, 100X, 1000X
- DC Accuracy: Average≥16：±(3% reading + 0.05 div) for △V
- DC Gain Accuracy: ±3%
- Max Input Voltage: 400V (PK – PK) (DC+AC, PK – PK)
- Channel Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1
- Input Impedance: 1MΩ ± 2%, in parallel with 20pF±5pF
- Communication Interface: USB host, USB device
- Frequency Counter
- Ultra-thin body
- 7 inch
- SCPI and LabVIEW supported
- Electronic circuit debugging
- Circuit testing• Designing & Manufacturing
- Education & Training
- Automobile maintenance & designing
Product Description
Metravi DSO-6104 Digital Storage Oscilloscope offers high-speed signal capture and waveform analysis with exceptional clarity and accuracy. Featuring four input channels, large color display, and advanced trigger functions, it’s ideal for electronics testing, research, and education. The DSO-6104 supports waveform storage, USB connectivity, and real-time measurements. With wide bandwidth and sampling rate, it provides reliable performance for circuit analysis, troubleshooting, and laboratory diagnostics.
Available on EnvMart, these Oscilloscopes provide detailed visualization of electrical signals, essential for diagnostics, troubleshooting, and design in electronics and engineering. Metravi Oscilloscopes stand out for their accuracy, intuitive interface, and robust performance—ideal for labs, R&D, and field applications alike.
