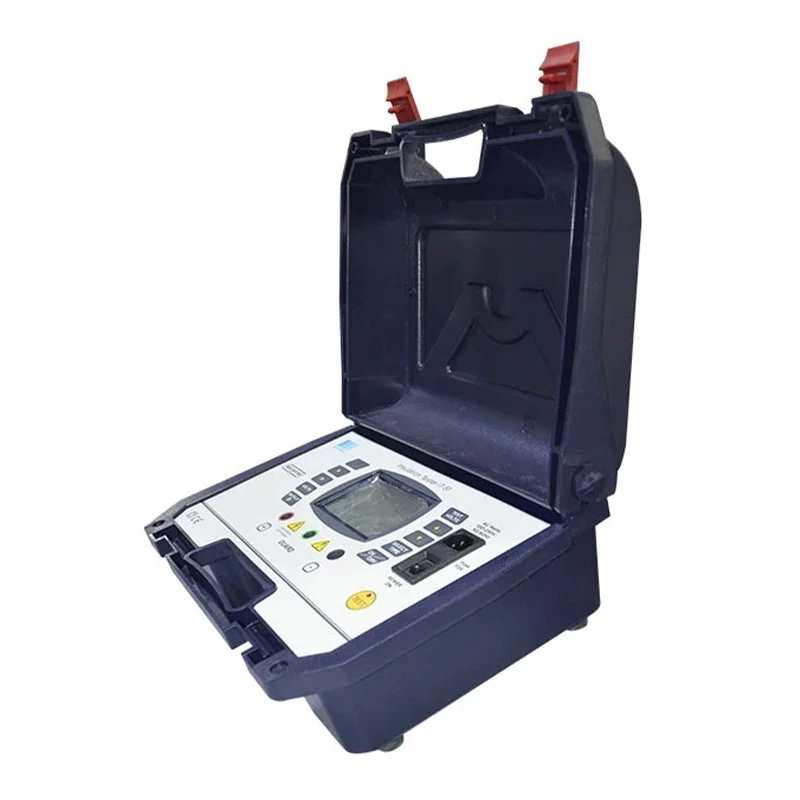

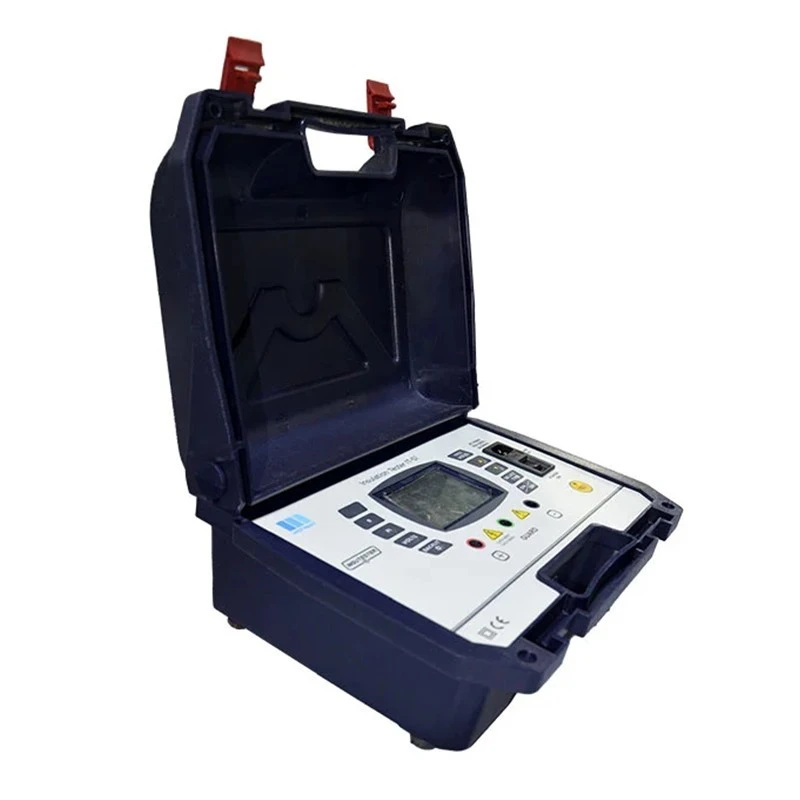

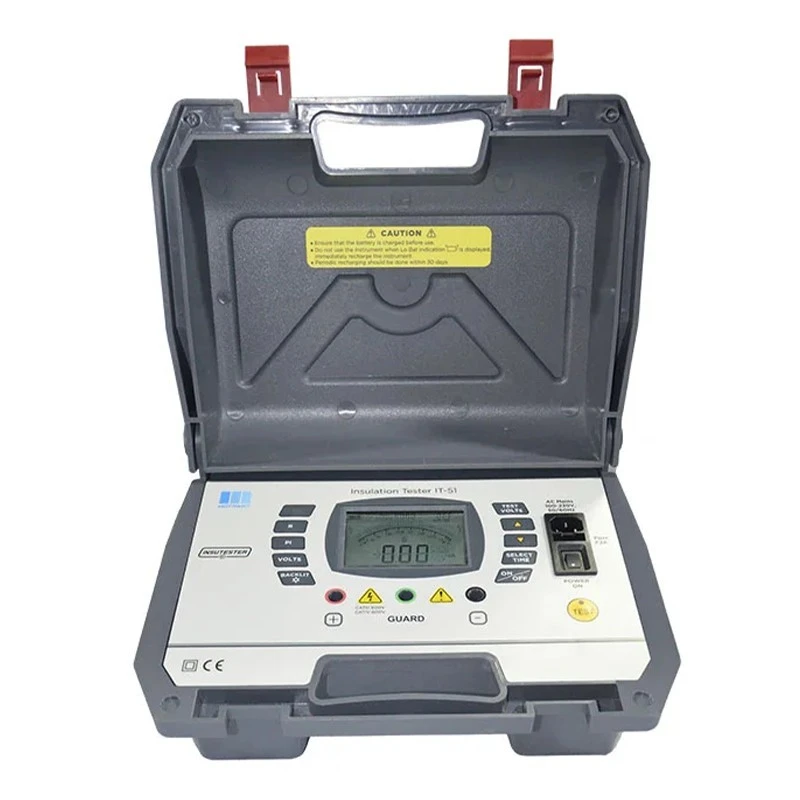

Motwane IT-51 5kV Digital Insulation Resistance with Polarization Index
Specifications
| Country of Origin | India |
|---|---|
| Display | Custom Built LCD with White backlight |
| Brand | Motwane |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Battery | Internal Rechargeable |
| Humidity | Less than 95% RH / non-condensing (max 40°C) |
| Model | IT-51 |
| Certifications | CE / CAT IV 600V / EN 61010-031 -2002 +A1 -2008 (test leads) |
| Weight | 5.0 Kg (Approx) (without Accessories) |
| Safety Standards | EN 61010-1 -2001 |
| Ingress Protection | IP 54 |
| Short Circuit Current | 1.4 mA ± 0.5 mA |
| Mains Power Supply | 110/230VAC 50/60Hz |
| Test Voltage (V) | 250V / 500V / 1000V / 2500V / 5000V |
| Test Voltage Accuracy | ± 5% of reading |
| Programmable Timers | T1 / T2 |
| Insulation Resistance Analog Display | 1 KΩ to 1 TΩ |
| EMC Standards | EN 61326-1 -2006 |
| Type Test | IS 11994 |
| Insulation Resistance Digital Display | 1 KΩ to 1 TΩ (3 Digit) |
| Insulation Accuracy (Up to 1GΩ) | ±(5% + 2 digits) |
| Insulation Accuracy (Over 1GΩ) | 5000V - ±(5% + 0.04% per GΩ) / 2500V - ±(5% + 0.08% per GΩ) / 1000V - ±(5% + 0.2% per GΩ) / 500V - ±(5% + 0.4% per GΩ) / 250V - ±(5% + 0.8% per GΩ) |
| AC/DC Voltage Measurement Range | Up to 600V |
| AC/DC Voltage Measurement Accuracy | ±(5% of reading + 5 digits) |
| Polarization Index (PI) Display Range | 0 - 99.9 |
| Polarization Index (PI) Accuracy | ±(5% of reading + 5 digits) |
| Polarization Index (PI) Resolution | 0.01 |
| Dimensions (HxWxL) | 195 mm x 290 mm x 360 mm (Approx) |
Key Features
- Selectable test voltage from 250V, 500V, 1000V, 2500V, 5000V DC
- Insulation resistance measurement up to 1TΩ
- Polarization index measurement facility
- Short circuit current < 1.4 mA. approx
- AC/DC voltage measurement up to 600V
- Two programmable timers from 0 Sec to 99 minutes
- Pleasant LCD Backlight
- Internal rechargeable battery
- Safety – IP 54, CAT IV 600V, and CE conformity
- Robust ABS body with self-carrying handle for easy portability
- Automatic discharge for capacitive circuits
- Guard terminal to minimize the surface leakage
Product Description
The Motwane IT-51 is a microprocessor based digital insulation tester designed for testing various types of electrical apparatus like transformers, switchgear, motors, generators, cables, and substation products. IT-51 has a digital display and an analog for arc display. It automatically performs IR Test and Polarization Index by selecting modes. IT-51 has a large LCD white backlight display that shows leakage current in scrolling form along with its IR value and PI value.
Insulation Resistance Test
The IR test is an acceptance test which is important for future comparative purposes. It helps to determine the suitability of the electrical apparatus for energizing or for the application of the high-potential (hi-pot) test. The IR test must attain successful completion to validate the factory warranty. It must be conducted immediately before energizing the electrical apparatus or before commencing the high potential test.
Polarization Index Test
This is an extension of the IR test. In this test, two IR measurements are considered where the first reading is taken at 1 min and the second reading is taken at 10 mins. Then the ratio of the 10 min reading is compared to a 1 min reading which is then calculated to give the PI dielectric absorption value. The PI of winding-to-winding and winding-to-ground is determined. A PI value of below 2 is indicative of insulation deterioration and should be investigated further.
IT-51 is a lightweight instrument that can be easily moved around for electrical testing. It has rechargeable battery operation along with an AC mains provision for battery charging. It also has an ingress protection of IP54. The device has automatic capacitive loads discharged at the end of the test.
Application
The Insulation Resistance test is an essential test that helps to check the condition of electrical insulation. The insulation resistance quality of an electrical system degrades with time and with environmental conditions such as temperature, humidity, moisture, and dust particles. This device is designed for routine and diagnostic testing like IR, PI of high voltage electrical apparatus including electrical rotating machinery, transformers, HV & LV switchgear, cables, insulators, etc.
Standard Accessories Included
- Test leads 3 meter : 1 Set
- User manual : 1 No
- Calibration sheet : 1 No
Optional Accessories
- Test leads 10 meters : 1 Set
Available on EnvMart, these Insulation Testers are designed for precise insulation resistance measurement, ensuring electrical safety and equipment reliability. Motwane Insulation Testers provide high accuracy and durability, making them essential for electrical maintenance, troubleshooting, and compliance testing
