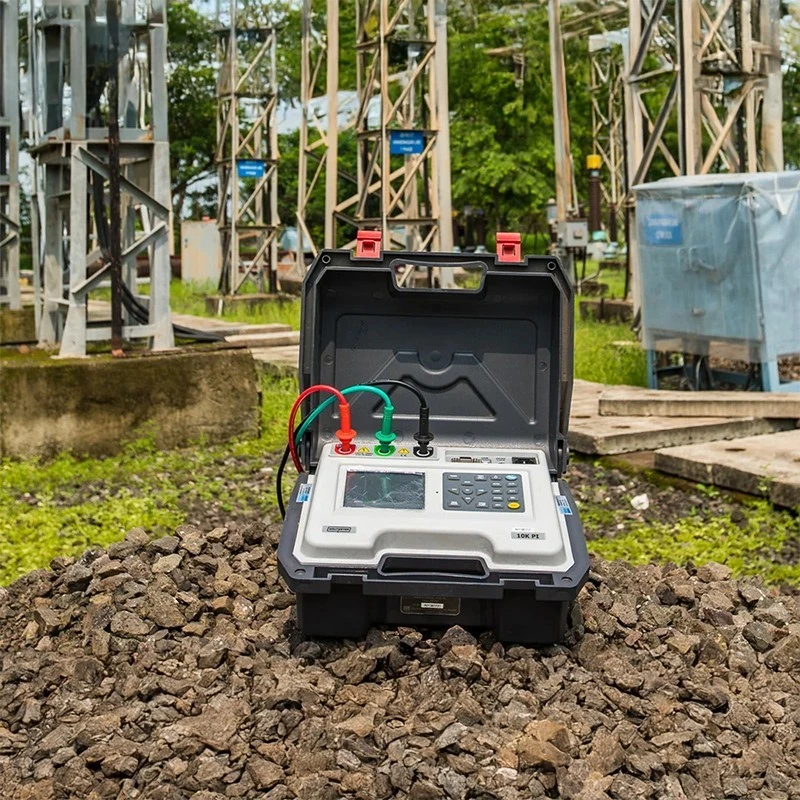

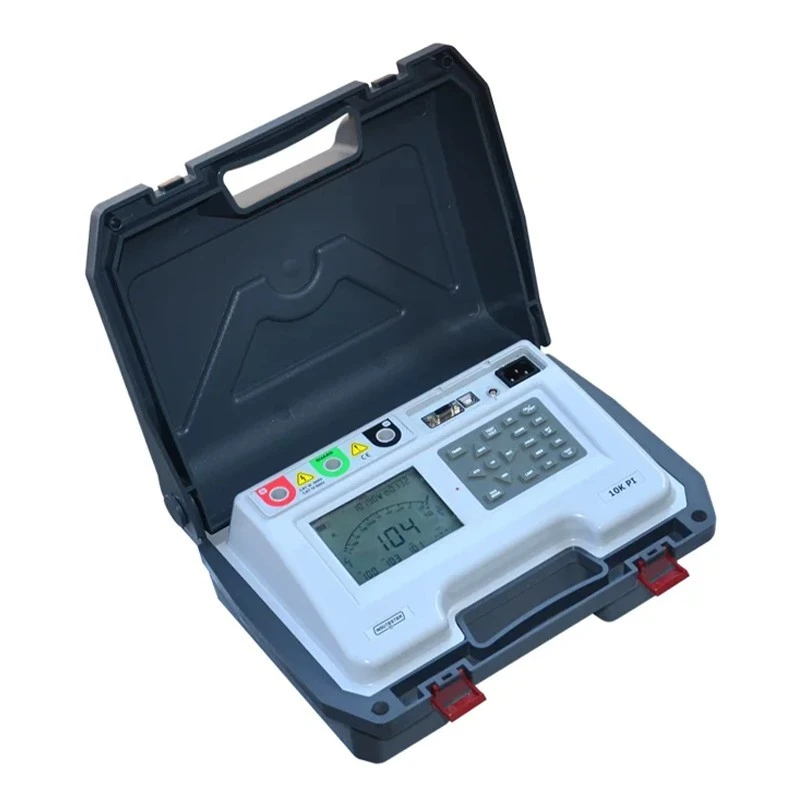

Motwane 10K-PI 10kV Insulation Diagnostic Tester
Specifications
| Country of Origin | India |
|---|---|
| Current Range | 0.01nA to 6mA |
| Capacitance Range | 1nF to 50μF |
| Resistance Range | 10KΩ to 50TΩ |
| Brand | Motwane |
| Interface | Galvanic isolated RS232 / USB port |
| Memory | 1000 readings internal storage |
| Model | 10K-PI |
| Timer | Programmable 0 sec to 99 minutes |
| Auto Power Off | Instrument turns off after non-use |
| Test Voltage (V) | 500V / 1000V / 2500V / 5000V / 7500V / 10000V |
| AC Voltage (Mains Input) | 85V/265Vrms / 50/60Hz ±10% |
| Lock Test Voltage (V) | 500 – 1000V (10V steps) / 1000 – 10000V (25V steps) |
| Test Voltage Accuracy | ± 5% of reading / ± 5 digit (1 GΩ load / 0°C to 30°C) |
| Resistance Accuracy (23°C) | 10KΩ to 1TΩ - ± (5 % of reading + 5 digits) / 1TΩ to 10TΩ - ± (10 % of reading + 5 digits) / 10TΩ to 20T/50TΩ - ± (20 % of reading + 7 digits) |
| Guard Terminal Performance | Guard resistance - 300 kΩ ± 10% |
| Short Circuit/Charge Current | Up to 6mA |
| Capacitance Measurement Accuracy | ± (10% of readings + 5nF) |
| Interference | 1mA RMS per 250V test voltage (up to 4mA) |
| Voltmeter Range | 0 – 600 AC and DC |
| Voltmeter Accuracy | ± (8% of reading + 5 digits) / Input resistance - 250MΩ Approx. |
Key Features
- Available IR testing with multiple diagnostic modes – PI, DAR, DD, Step Voltage, BDV & Burn test
- Programmable test voltage from 500V-10KV
- Insulation resistance range from 10K ohm to 50T ohm
- Three programmable timers
- Programmable break down current settings
- Mains & battery operation
- Internal data storage up to 1000 tests*
- Galvanic isolated RS 232 & USB port
- Application software for data trends analysis
- AC/DC voltage measurement of up to 600V
- Auto calibration at every start up
- Burn mode for uninterrupted insulation resistance testing
- Alarm mode with min-max setting & pass-fail indication
- CAT IV 600V, IP54, complies with latest IEC/IS standards
Product Description
10K-PI is an insulation diagnostic tester with a test voltage range of up to 10KV. It is designed and developed indigenously at our state-of-the-art R&D laboratory to conduct automatic insulation tests on high voltage equipment like transformers, cables, bushings, switchgear & rotating machines. 10K-PI is a technologically advanced microprocessor based instrument that provides high speed data sampling to give correct readings even in harsh electrical conditions. It has a wide insulation resistance range of up to 50T ohm. Model 10K-PI is a mains and battery operated, portable & compact insulation tester for outdoor applications. The battery backup of 6 hours makes it suitable for field operations. IP54 rating keeps 10K-PI safe from water & dust ingress. It complies with CAT IV 600V for safe operation. The instruments and their accessories are certified as per the relevant IS/IEC standards. The information displayed on the large LCD backlight includes insulation resistance, leakage current, capacitance, battery status & timer. It has three programmable timers provided to conduct various tests like Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV), & Breakdown Voltage (BDV) test. 10K-PI can store up to 1000 test results*. It has a PC interface with USB & RS232 for data transfer. The PC software is used for report generation & data trends analysis. It helps to keep a record of capital equipment. The instrument has an automatic discharge facility for capacitive load discharging at the end of the test.
Application
The Insulation Resistance test is an essential test that helps to verify the condition of electrical insulation. The insulation resistance quality of an electrical system degrades with time, and with environmental conditions such as temperature, humidity, moisture, and dust particles. This instrument is designed for routine insulation resistance testing and diagnostic testing like PI, DD, DAR & SV of high voltage electrical apparatus Including transformers, generators, motors, cables, bushings, LA’s, switchgear, etc., and is temperature independent. The data trends can reveal vital information about the insulation quality and enable the user to make informed decisions.
Available on EnvMart, these Insulation Testers are designed for precise insulation resistance measurement, ensuring electrical safety and equipment reliability. Motwane Insulation Testers provide high accuracy and durability, making them essential for electrical maintenance, troubleshooting, and compliance testing
