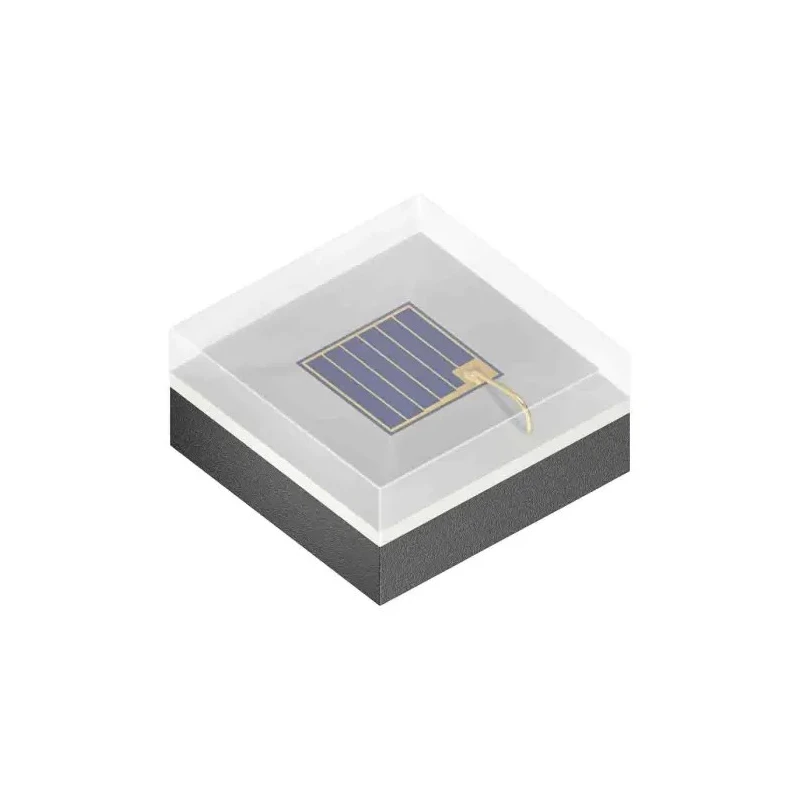

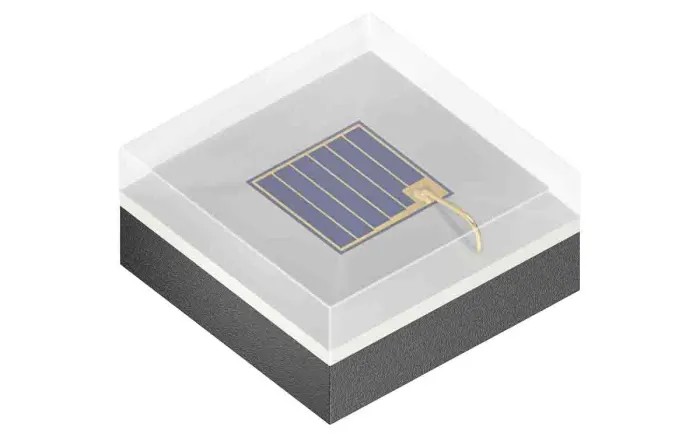

ams OSRAM High Power Infrared Emitting Diode 850 nm Peak Wavelength Clear Silicone Surface Mount SFH 4170S A01

ams OSRAM SFH 4170S A01 is a high power infrared emitting diode designed for precise and efficient infrared light applications. Featuring a peak wavelength of 850 nm and a clear silicone package, this diode provides excellent radiant flux and radiant intensity, making it ideal for demanding optoelectronic uses.

The rectangular lens shape with a 65° angle of half intensity offers well-directed IR radiation suitable for various industrial and consumer electronics applications, including access control, eye tracking, and gesture recognition.

This device is surface mount type, compatible with tape & reel packaging for automated assembly lines. It is qualified to AEC-Q102 and complies with IEC 62471 safety standards, ensuring robust and reliable performance under diverse operating conditions spanning from -40 °C to +105 °C.

With corrosion robustness Class 3B and ESD protection at 2 kV (HBM), the diode is engineered to withstand harsh environments and static discharge during handling and operation. Peak wavelength of 850 nm ensures efficient infrared emission.

High radiant flux of 1.15 W provides powerful IR output. Rectangular lens shape with 65° beam angle for precise light focus. Clear silicone package offers mechanical protection and light clarity. Surface mount design for easy PCB integration and assembly.

Qualified to automotive grade AEC-Q102 for reliable operation. Conforms to IEC 62471 photobiological safety standard. Wide operating temperature range from -40 °C to 105 °C. ESD rating up to 2 kV HBM limits damage from electrostatic discharge.

Corrosion robustness Class 3B resists harsh environmental exposure.

This ams OSRAM infrared LED is well-suited for industrial, commercial, and consumer electronics sectors requiring high efficiency and reliability in IR emission. It supports applications such as security systems, machine vision, and human-machine interfaces where IR light is critical.
