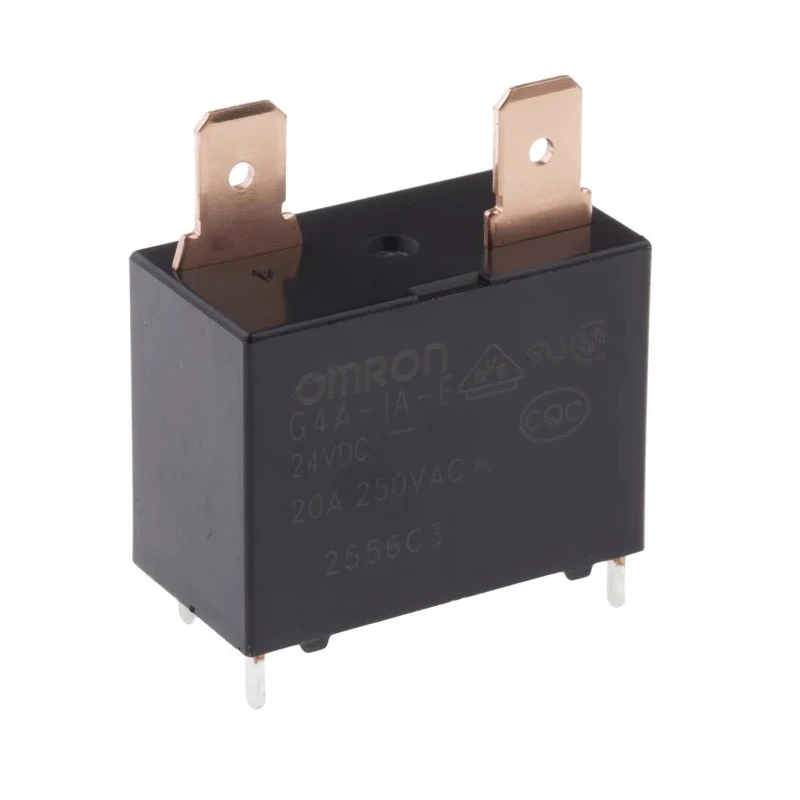

Omron Power Relay PCB Mount SPST 24V DC Coil 20A Switching Current G4A-1A-E DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 33.5mm |
| Length | 30.5mm |
| Model | G4A-1A-E DC24 |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G4A |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Switching Current | 20A |
| Terminal type | Through Hole |
| Standards/Approvals | UL, CSA, RoHS, VDE |
| Coil Resistance | 640Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
Key Features
- This power relay features SPST contact configuration suitable for various electrical applications.
- Designed for PCB mounting with through-hole terminals for easy assembly.
- Operates at a coil resistance of 640Ω and supports switching AC voltage up to 250V AC.
- The relay is compact with dimensions 33.5mm height, 30.5mm length, and 16mm width.
- Constructed with silver alloy contact material ensuring reliable conductivity.
- Suitable operating temperature range from -20°C to 60°C allows use in diverse environments.
- Complies with UL, CSA, RoHS, and VDE standards for safety and quality assurance.
- Ideal for motor switching applications with 80A surge current capability.
Product Description
Omron G4A-1A-E DC24 power relay is a high-performance component designed for PCB mounting applications in industrial and automation settings. Featuring a 24V DC coil and a switching current rating of 20A, this relay ensures reliable switching capability in electrical control circuits.
The relay utilizes a SPST (Single Pole Single Throw) contact configuration with through-hole terminal type, facilitating robust and secure mounting on printed circuit boards. The coil resistance is rated at 640Ω, ensuring optimal coil performance with moderate power consumption.

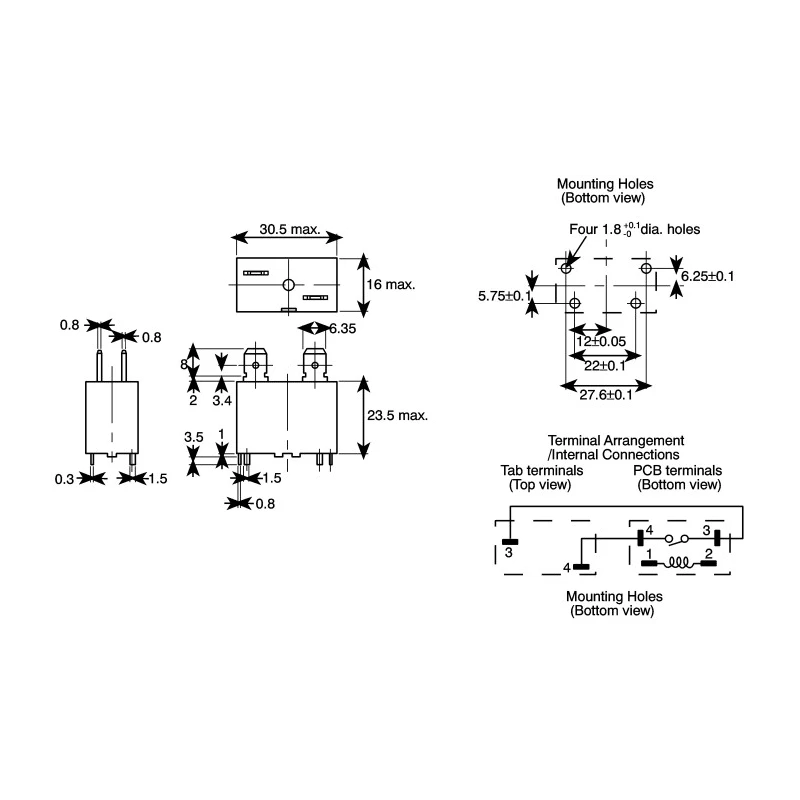

Measuring 33.5mm in height, 30.5mm in length, and 16mm in width, the compact size of the relay enables efficient PCB space utilization. It uses silver alloy contacts for enhanced electrical conductivity and longevity under switching loads.
Operating reliably within a temperature range from -20°C to 60°C, this relay is suitable for diverse industrial environments. Safety and compliance are assured by certifications including UL, CSA, RoHS, and VDE standards.
Notably, the G4A series supports an 80A surge current making it ideal for motor switching and other inductive load applications. The output connections are mirrored on the housing top as Faston 250 quick connect terminals for convenient wiring options.
This Omron power relay is used extensively in electrical control systems, automation, manufacturing plants, and HVAC equipment due to its dependable switching characteristics. It is an essential component for improving machinery efficiency and circuit reliability in commercial and industrial use cases.
This power relay features SPST contact configuration suitable for various electrical applications. Designed for PCB mounting with through-hole terminals for easy assembly. Operates at a coil resistance of 640Ω and supports switching AC voltage up to 250V AC.
The relay is compact with dimensions 33.5mm height, 30.5mm length, and 16mm width. Constructed with silver alloy contact material ensuring reliable conductivity. Suitable operating temperature range from -20°C to 60°C allows use in diverse environments.
Complies with UL, CSA, RoHS, and VDE standards for safety and quality assurance. Ideal for motor switching applications with 80A surge current capability. Explore more Power Relays and control components in the Electronics & Electricals category at EnvMart to elevate your electrical designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The G4A-1A-E DC24 power relay has a switching current rating of 20A.
This power relay operates with a coil voltage of 24V DC.
It features a Single Pole Single Throw (SPST) contact configuration.
The relay measures 33.5mm in height, 30.5mm in length, and 16mm in width.
It supports switching AC voltage up to 250V AC.
The coil resistance is rated at 640Ω.
This model uses through-hole terminals for secure PCB mounting.
The relay operates within a temperature range of -20°C to 60°C.
The contacts are constructed from silver alloy, ensuring reliable conductivity.
It complies with UL, CSA, RoHS, and VDE standards for safety and quality assurance.
This power relay is ideal for motor switching applications and other electrical control circuits.
The G4A-1A-E DC24 can handle an 80A surge current.
