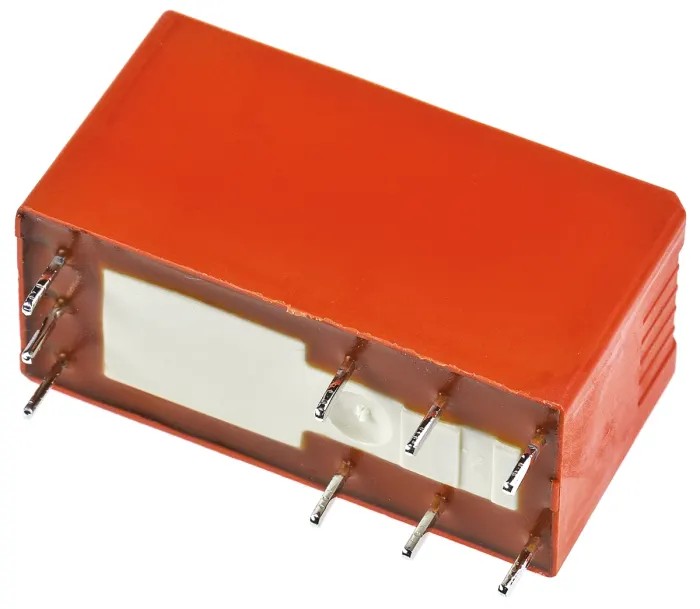

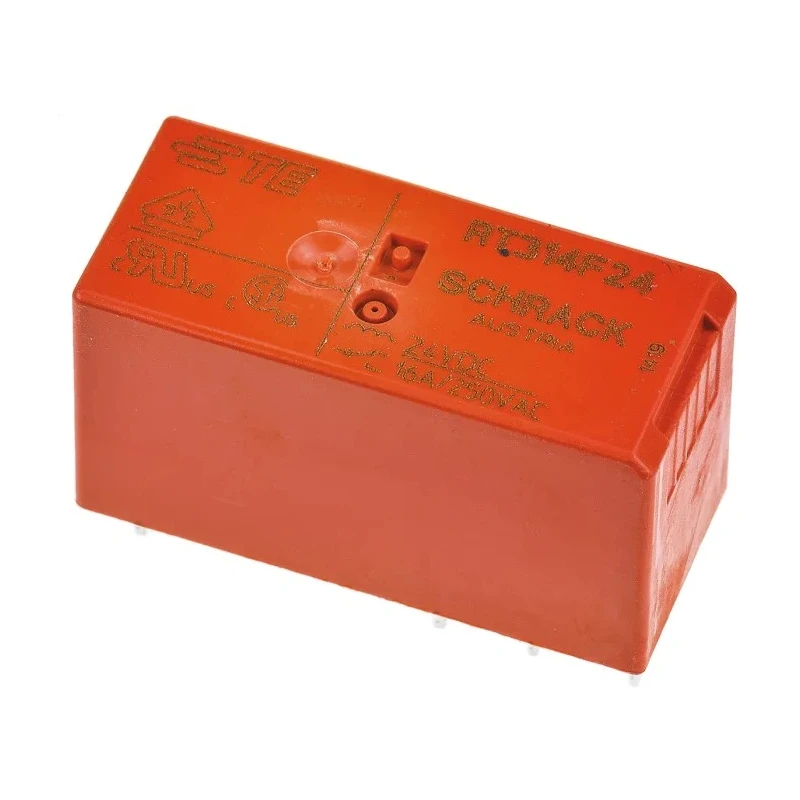

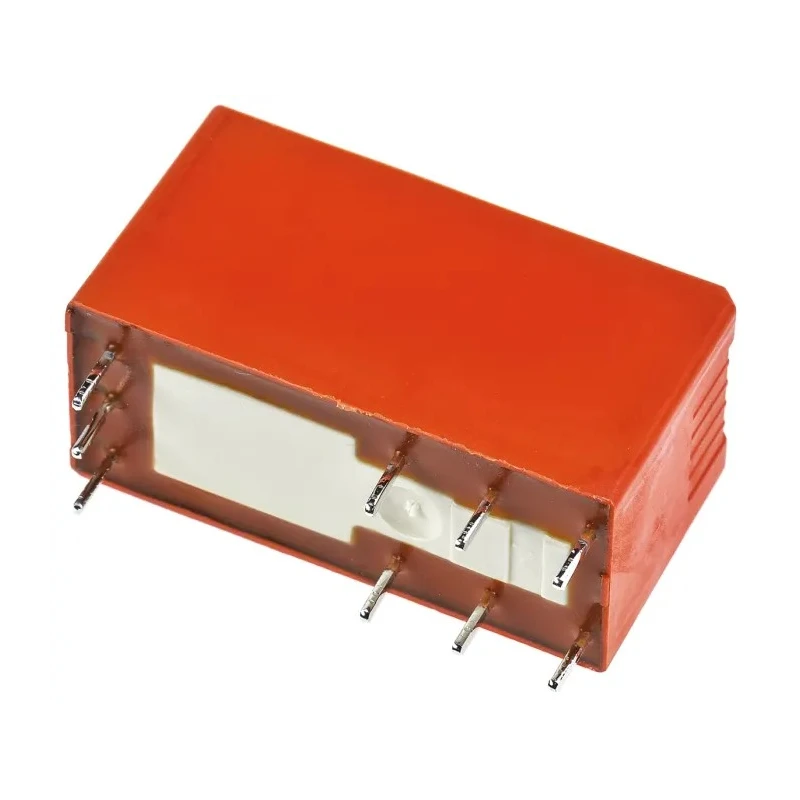

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPDT RT314F24

TE Connectivity RT314F24 PCB Power Relay is a high-quality, 24V DC coil relay designed for power switching tasks with a 16A SPDT contact configuration. This relay is engineered to provide reliable performance in demanding electrical and automation environments.

The relay is mounted on a PCB, making it ideal for integration into compact electronic assemblies. The 400V AC switching capability and silver alloy contacts contribute to durable and efficient electrical connections. With a coil resistance of 886 ohms, the relay efficiently operates at a coil voltage of 24V DC.

It operates effectively over a temperature range from -40°C to 85°C, suitable for various industrial and commercial applications. The relay meets RoHS compliance standards, underscoring its environmentally safe construction.

This RT314F24 model is part of the SCHRACK series, noted for reinforced insulation and exceptional shock resistance, including a destructive shock tolerance of 100g. These features make it highly suitable for battery-powered equipment and applications requiring memory functions such as during mains failure.

Its compact size with precise dimensions (29mm length, 15.7mm height, 12.7mm width) facilitates space-saving installations without sacrificing performance. Contact materials are silver alloy, optimizing conductivity and lifespan.

Originating from Austria, this power relay meets stringent European manufacturing standards. Its robust build and reliable operation make it an excellent choice for industrial automation, control systems, power electronics, and signal conditioning devices.

Features a PCB mounting type suitable for electronic circuit boards. Switching AC voltage rated at 400V AC for versatile use. Made with silver alloy contact material ensuring durability and conductivity. Coil resistance is 886 ohms optimized for 24V DC coil operations.

Operating temperature range from -40°C to 85°C for robust environmental performance. Compact dimensions: 29mm length, 15.7mm height, and 12.7mm width for space-efficient designs. Complies with RoHS standards for environmental safety.

Part of the SCHRACK series with reinforced insulation and shock resistance. Suitable for use in industrial, automation, electronics, and signal conditioning applications. Manufactured in Austria ensuring high-quality European production standards.
