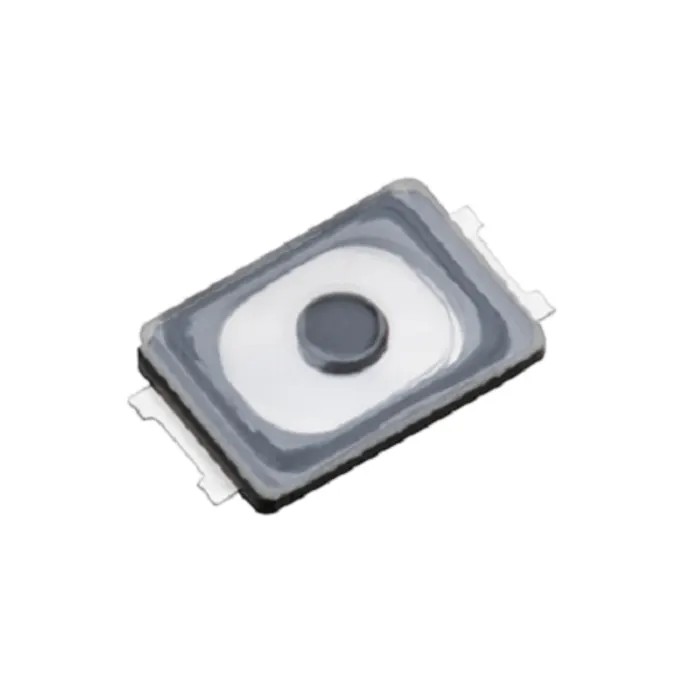

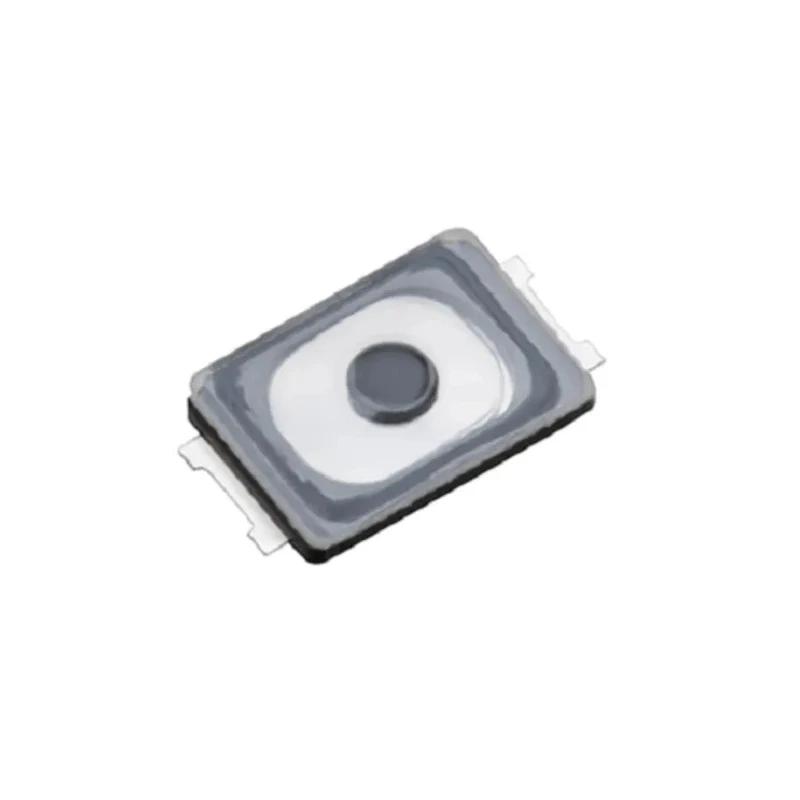

Panasonic IP67 Black Tactile Switch Push Plate, 0.85 mm Actuator Length, SPST 20mA 15V dc, Surface Mount

Free Delivery in India | Lowest Global Shipping Charges

Panasonic IP67 Black Tactile Switch Push Plate, 0.85 mm Actuator Length, SPST 20mA 15V dc, Surface Mount

Name: Panasonic IP67 Black Tactile Switch Push Plate, 0.85 mm Actuator Length, SPST 20mA 15V dc, Surface Mount
Brand: Panasonic
SKU: 423845
Price: 0.53 USD
Availability: InStock



Category Tactile Switch Brand Panasonic Condition New

Specifications

Country of Origin	India
Brand	Panasonic
Height	0.6mm
Model	IP67
IP Rating	IP67
Mount Type	Surface
Series	EVPAW
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Terminal type	Straight
Switch Operation	Push-On
Actuator Colour	Black
Actuator Length	0.85mm
Contact DC Voltage	15V dc
Actuator Style	Push Plate
Switch Contact Current	20mA
Operating Force	2.4N

Key Features

The switch features a black push plate actuator for easy user interaction.
Push-on operation with straight terminal type ensures secure electrical connection.
Compact design with a height of 0.6 mm and robust IP67 ingress protection.
Operates reliably within temperatures from -40℃ to +85℃ for diverse environments.
Mechanical operating force is 2.4 N, providing precise tactile feedback.
Suitable for portable electronic devices such as mobile phones and portable audio equipment.
Not illuminated, designed for clear and effective mechanical switching.
Manufactured as part of the EVPAW series by Panasonic, ensuring high quality and durability.

Product Description

Panasonic EVPAWCD40 tactile switch push plate is a high-quality, surface mount switch designed for reliable use in compact electronic applications. Featuring a 0.85 mm black actuator length and a tactile push-on operation, this switch offers excellent operability suitable for portable devices including mobile phones and portable audio equipment. Its SPST contact configuration supports a contact current of 20mA at 15 V dc, making it ideal for low-voltage control circuits.

The switch is IP67 rated, providing robust protection against dust and water ingress, ensuring durability in demanding industrial environments. With a height of 0.6 mm and a mechanical operating force of 2.4 N, it provides precise tactile feedback and long-lasting operation. The straight terminal type allows for easy and secure PCB mounting.

The operating temperature range of -40℃ to +85℃ makes it suitable for a wide variety of applications in harsh temperature conditions. The switch is non-illuminated and features a push plate style actuator in black color for ergonomic and aesthetic integration.

This tactile switch is part of Panasonic’s EVPAW series, known for quality and consistent performance. It is supplied as a tape, ready for automated insertion, streamlining production processes and enhancing manufacturing efficiency.

Black push plate actuator with 0.85 mm length. SPST contact configuration rated for 20mA at 15 V dc. Surface mount design with straight terminals for reliable mounting. IP67 ingress protection rating ensures resistance to dust and water.

Mechanical operating force of 2.4 N for precise operation. Operating temperature range between -40℃ and +85℃. Suitable for portable electronic equipment and industrial applications. Part of the Panasonic EVPAW series.
