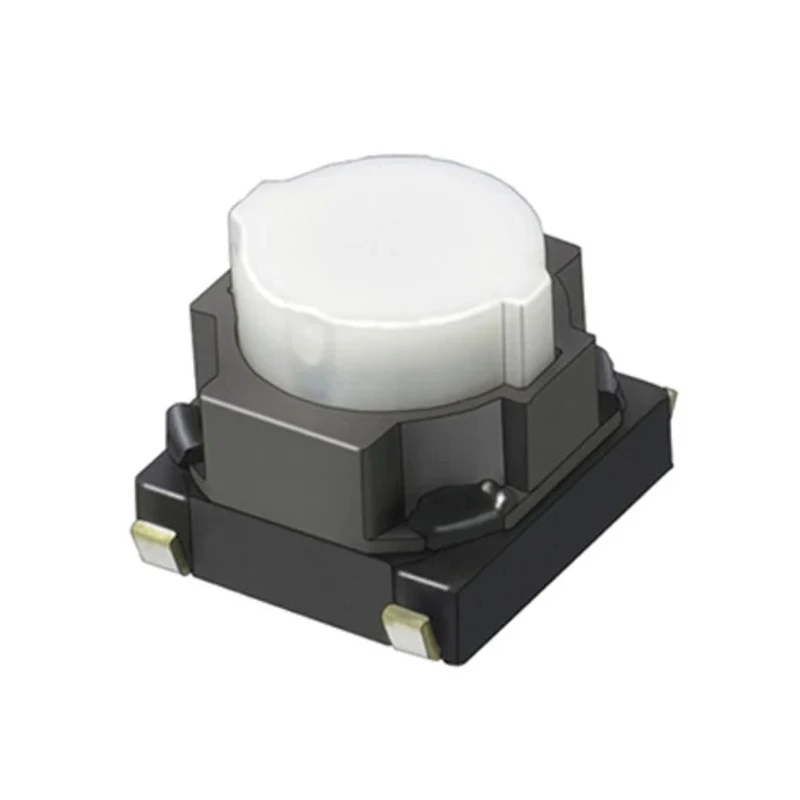

Panasonic IP67 Natural Tactile Switch Push Plate SPST 20mA 15 V dc Surface EVQP0405M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 6mm |
| Model | EVQP0405M |
| IP Rating | IP67 |
| Width | 6mm |
| Mount Type | Surface |
| Series | EVQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -40°C |
| Terminal type | J Bend |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Natural |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 3N |
| Mechanical Life | 100000Operations |
Key Features
- Provides a natural actuator color with push plate style.
- Compact 6mm x 6mm size with a height of 5mm suits space-constrained applications.
- Operates reliably over an extended temperature range from -40°C to 85°C.
- Designed for high reliability with a mechanical life of 100,000 operations.
- Features surface mount with J bend terminals for easy PCB integration.
- Assures a sharp tactile click with low contact resistance and small bounce noise.
- IP67 rated for protection against dust and water ingress.
- Compliant with RoHS standards for environmental safety.
Product Description
Panasonic EVQP0405M tactile switch push plate is part of the EVQ series of SMT tactile switches, designed for precise and reliable momentary switching in electronic applications. This SPST switch features a natural-colored push plate actuator with a straight orientation, optimized for surface mounting using J bend terminals. It is rated for a contact current of 20mA at 15 V dc, making it suitable for low current control circuits.
The switch measures 6mm in length and width and has a slim profile height of 5mm, enabling installation in compact electronic devices. It can reliably function over a temperature range from -40°C up to 85°C, ensuring stable performance in demanding environments.
With an IP67 rating, this switch offers excellent protection against dust ingress and water immersion, enhancing durability in industrial, laboratory, and commercial applications. The mechanical life expectancy is rated at 100,000 operations, ensuring long-term operational reliability. The actuator provides a distinct and tactile click feedback, which is vital for user interface accuracy.
The product is RoHS compliant, adhering to environmental and safety regulations. This switch is manufactured in Japan and is ideal for use in electronics manufacturing, automation systems, instrumentation, and control panels requiring high-reliability miniature tactile switches.
Natural push plate actuator provides a clear tactile response. Surface mount type with J bend terminals for secure PCB attachment. Wide operating temperature range ensures versatile application. Compliant with RoHS directive for hazardous substances.
Compact size suits space-sensitive designs. IP67 rating protects against dust and water challenges. Mechanical life of 100,000 operations supports long-term use. Designed and manufactured to high Japanese industrial standards.
Explore more Tactile Switches and precision electronic components in the Electronics & Electricals category on EnvMart for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -40°C to 85°C, allowing it to function reliably in demanding environments.
This tactile switch has a compact size of 6mm in both length and width, with a height of 5mm, making it suitable for space-constrained applications.
It features a surface mount design with J bend terminals, facilitating secure attachment to PCBs.
The contact current rating for this model is 20mA, which is suitable for low current control circuits.
The mechanical life of this tactile switch is rated at 100,000 operations, ensuring long-term operational reliability.
The actuator style is a push plate with a natural color, designed to provide clear tactile feedback during operation.
Yes, the Panasonic EVQP0405M is compliant with RoHS standards, ensuring it adheres to environmental safety regulations.
This model uses a Single Pole Single Throw (SPST) configuration, which operates in a momentary mode.
The operating force for this tactile switch is 3N, which indicates the pressure needed to activate it.
This tactile switch is manufactured in Japan, adhering to high industrial standards.
This model is ideal for use in electronics manufacturing, automation systems, instrumentation, and control panels requiring high-reliability miniature tactile switches.
