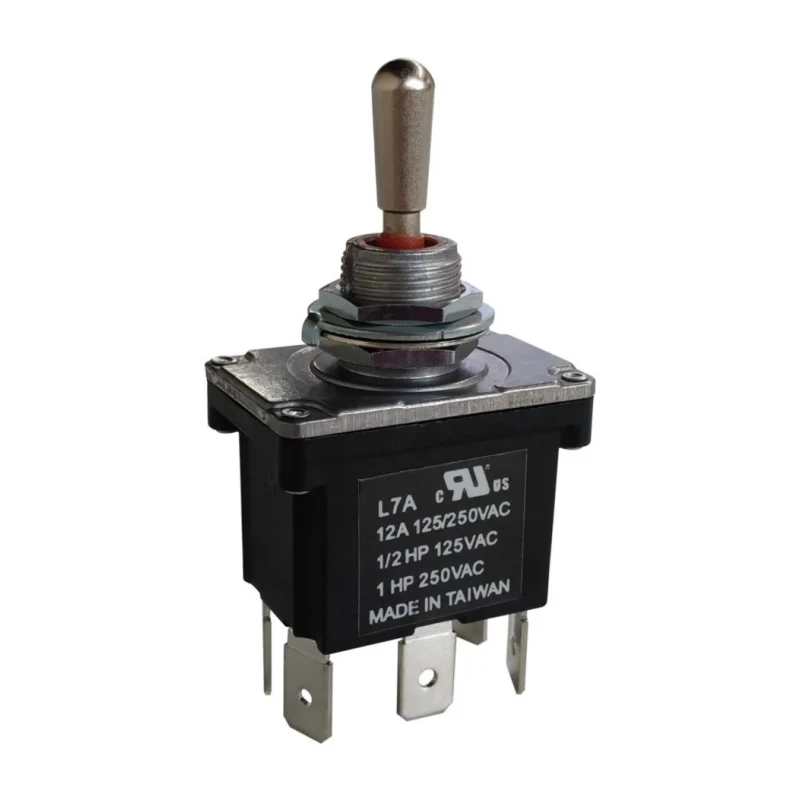

RS PRO Toggle Switch PCB Mount On-Off-On DPDT 12A Contact Current 250V AC Brass Actuator 206-6978

Name: RS PRO Toggle Switch PCB Mount On-Off-On DPDT 12A Contact Current 250V AC Brass Actuator 206-6978
Brand: RS PRO
SKU: 422323
Price: 2389.45 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Height	64.2mm
Length	28.7mm
Model	206-6978
IP Rating	IP68
Width	15.7mm
Mount Type	PCB
Series	RS PRO
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-30°C
Terminal type	Solder
Standards/Approvals	RoHS, UL & cUL
Switch Operation	On-Off-On
Actuator Length	17mm
Switch Contact Current	12A
Mechanical Life	10Cycles
Contact AC Voltage	250V ac
Actuator Material	Brass

Key Features

This toggle switch has a double pole double throw (DPDT) contact configuration supporting On-Off-On operation.
It mounts directly to printed circuit boards (PCB) using solder terminals for secure connection.
The brass actuator provides reliable mechanical durability with a length of 17mm.
Designed for operating temperatures from -30°C to 85°C, suitable for harsh environments.
Offers front panel protection rating of IP40/IP68 enhancing resistance against dust and moisture.
Complies with RoHS, UL, and cUL standards ensuring safety and quality compliance.
Mechanical life cycle expectancy is rated for 10,000 cycles for extended usability.
Body constructed from Nylon 66 with silver alloy contacts and silicone gasket O-rings for durability.

Product Description

RS PRO 206-6978 Toggle Switch is a PCB mount dual pole double throw (DPDT) switch designed for reliable On-Off-On operation with a contact current rating of 12A and AC voltage rating of 250V. It features a brass actuator 17mm in length and robust construction with a nylon 66 body, silver alloy contacts, and silicone gasket O-ring sealing.

This toggle switch withstands operating temperatures from -30°C to 85°C and provides front panel ingress protection IP40 to IP68, making it suitable for demanding industrial, telecommunications, aerospace, automotive, and instrumentation control systems.

The switch is designed with solder terminals for stable PCB mounting and features a mechanical life rated at 10,000 cycles ensuring long-term durability in electrical switching applications.

The compact footprint with dimensions of 28.7mm length, 15.7mm width, and 64.2mm height facilitates easy installation in confined assemblies. The product meets international standards including RoHS, UL, and cUL certifications for safety and environmental compliance.

This toggle switch has a double pole double throw (DPDT) contact configuration supporting On-Off-On operation. It mounts directly to printed circuit boards (PCB) using solder terminals for secure connection. The brass actuator provides reliable mechanical durability with a length of 17mm.

Designed for operating temperatures from -30°C to 85°C, suitable for harsh environments. Offers front panel protection rating of IP40/IP68 enhancing resistance against dust and moisture. Complies with RoHS, UL, and cUL standards ensuring safety and quality compliance.

Mechanical life cycle expectancy is rated for 10,000 cycles for extended usability. Compact dimensions: length 28.7mm, width 15.7mm, height 64.2mm for easy integration. Body constructed from Nylon 66 with silver alloy contacts and silicone gasket O-rings for durability.

Ideal for telecommunications, aerospace, automotive, instrumentation and industrial control applications.
