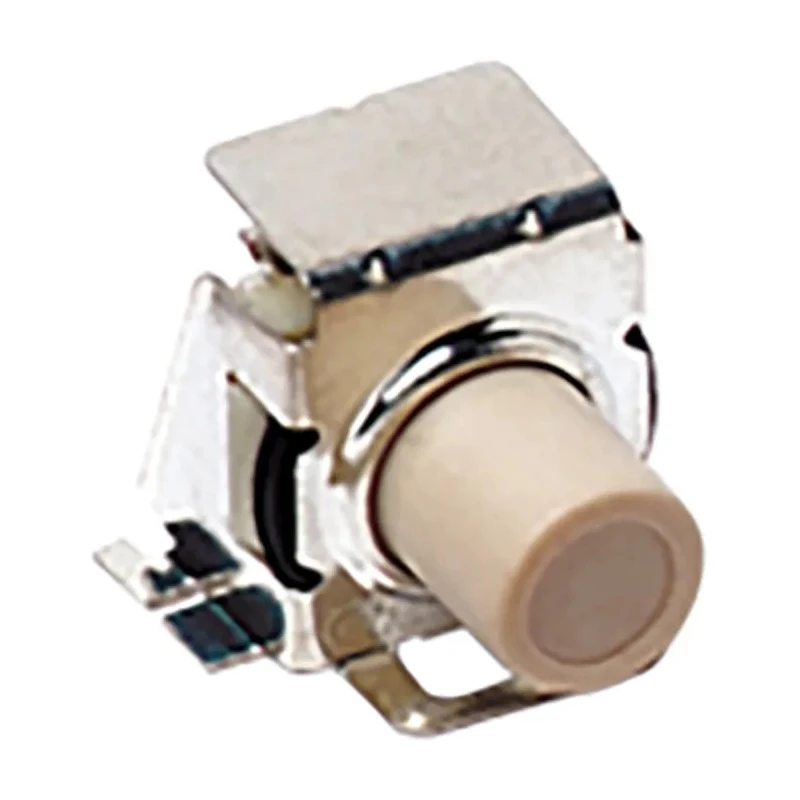

C & K IP57 Tactile Switch, 2.36 mm Actuator Length, SPST Contact Configuration, Momentary Operation, Surface Mount

Free Delivery in India | Lowest Global Shipping Charges

C & K IP57 Tactile Switch, 2.36 mm Actuator Length, SPST Contact Configuration, Momentary Operation, Surface Mount

Name: C & K IP57 Tactile Switch, 2.36 mm Actuator Length, SPST Contact Configuration, Momentary Operation, Surface Mount
Brand: C & K
SKU: 420578
Price: 284.33 INR
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	0.85mm
Length	7.11mm
Model	IP57
IP Rating	IP57
Width	6.29mm
Mount Type	Surface Mount
Maximum Operating Temperature	90°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Switch Operation	Momentary
Actuator Length	2.36mm
Operating Force	3N

Key Features

Features a sealed design with IP57 rating for protection against dust and immersion.
Operates within a temperature range from -40°C to 90°C.
High shear force with an extended bracket enhances durability and long operating life.
Compact dimensions of 7.11 mm length, 6.29 mm width, and 0.85 mm height.
Designed for easy pick and place with a TOP plate tab for automated assembly.
Commonly used in telecommunications, computer products, instrumentation, and power supplies.
Utilizes momentary switch operation with a 3N operating force.
Non-illuminated actuator suitable for SMT mounting.

Product Description

C & K KT11P2SA2M34 LFS tactile switch is a precision momentary switch featuring a 2.36 mm actuator length and SPST contact configuration. It is designed for surface mount technology (SMT) assembly, providing reliable operation and long service life.

This switch incorporates a sealed design rated at IP57, offering protection against dust ingress and water immersion, making it suitable for demanding industrial environments. The operating temperature range is from -40°C up to 90°C, allowing for usage in extreme conditions.

The compact and low-profile form factor measures 7.11 mm in length, 6.29 mm in width, and 0.85 mm in height with a 3N operating force, making it ideal for sensitive electronic devices. The high shear force with an extended bracket ensures durability and resistance to mechanical stresses during repeated use.

Its non-illuminated design supports a momentary switch operation, commonly used in telecommunications equipment, computer peripherals, instrumentation, and power supply applications. The top plate tab facilitates easy pick-and-place in automated manufacturing lines.

Sealed switch with IP57 ingress protection rating. Compact dimensions support space-constrained electronic applications. High durability with extended bracket and high shear force. Operating temperature range from -40°C to 90°C.

Momentary switch operation with SPST contact configuration. Designed for surface mount assembly and easy automation. Non-illuminated actuator suitable for industrial devices.

This tactile switch is manufactured in China under strict quality control standards, ensuring consistent performance for industrial, telecommunications, and electronic device applications.
