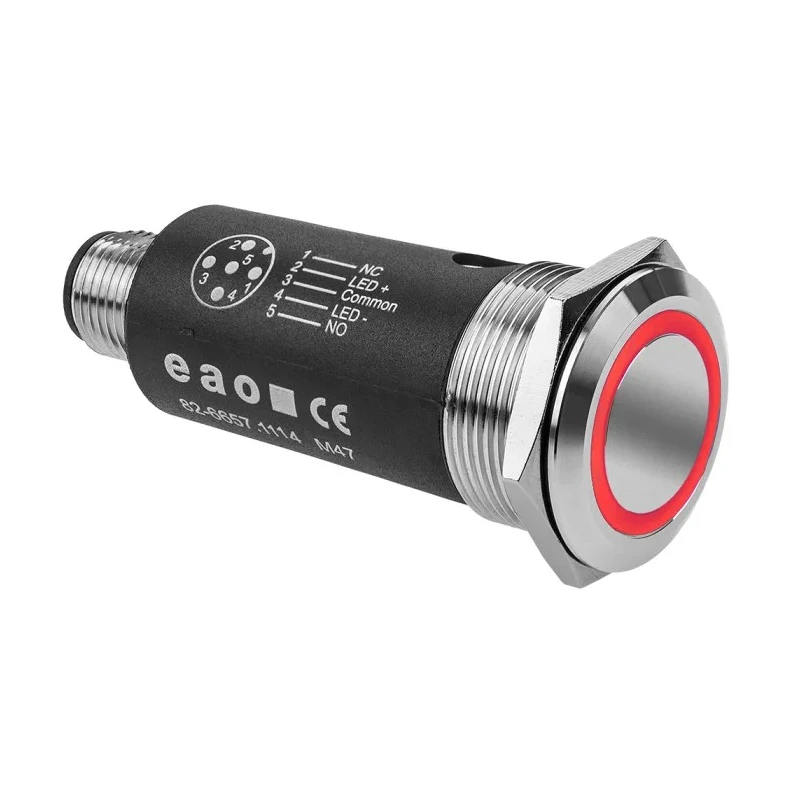

EAO Illuminated Push Button Latching Panel Mount SPDT Red LED 22 mm Cutout IP65 IP67 35 V dc 82-6657.2114



Category Push Button Switches Brand EAO Condition New

Specifications

Country of Origin	China
Brand	EAO
Length	62mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	22 mm
Terminal type	Screw
Standards/Approvals	RoHS
LED Colour	Red
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	35V dc
Actuator Style	Round
Switch Contact Current	500mA
Contact AC Voltage	35V ac

Key Features

The actuator color is silver with a round style for easy operation.
This switch uses a SPDT contact configuration with silver contacts.
Illumination is provided by a red LED for better visibility.
Manufactured with stainless steel 316L front plate ensuring durability.
It supports 35V ac and 35V dc contact voltages with a maximum contact current of 500mA.
Featuring IP65 and IP67 ingress protection, suitable for harsh industrial environments.
Operates reliably in temperatures ranging from -30°C to 70°C.
Mount type is panel with a 22 mm diameter cutout for mounting.

Product Description

EAO 82-6657.2114 Illuminated Push Button is a high-quality latching switch designed for panel mounting with a 22 mm cutout diameter. It features a robust stainless steel 316L front actuator in silver color and a round style for ergonomic operation. The switch is illuminated using a red LED to ensure clear visibility during operation.

The device offers a SPDT (Single Pole Double Throw) contact configuration with silver contacts, suitable for control circuits requiring switching between two circuits. It is rated to handle 35V ac and 35V dc at a current of 500mA, making it suitable for low voltage applications.

Its ingress protection ratings of IP65 and IP67 guarantee protection against dust and water, allowing use in demanding industrial, manufacturing, automation, and electrical panel applications. The switch supports a wide operating temperature range from -30°C to 70°C, ensuring reliability under varying environmental conditions.

Installation is facilitated by its panel mount type with a precise 22 mm cutout and screw terminal type for secure electrical connections. This illuminated push button is RoHS compliant, adhering to environmental standards.

The actuator features a silver color and round style, enhancing usability and aesthetic. Latching switch operation mode provides maintained ON/OFF states. Red LED illumination enhances visibility in low light or control panel environments.

Robust stainless steel 316L front material ensures long-lasting durability. SPDT silver contacts offer reliable switching performance. Ingress protection IP65 and IP67 suitable for harsh industrial environments. Temperature tolerance from -30°C to 70°C for versatile use cases.

Screw terminal type ensures secure and stable wire connections. Panel mount design with 22 mm cutout facilitates easy integration into control panels. Compliant with RoHS for environmental safety assurance.

This push button switch is ideal for industries such as electrical automation, manufacturing, HVAC controls, and water treatment systems requiring robust, illuminated control switches. EnvMart offers this product as part of our Switches & Sockets category, providing reliable and durable electrical components.
