Littelfuse Miniature PCB Reed Switch 500 mA 200 V 59165-1-S-00-D

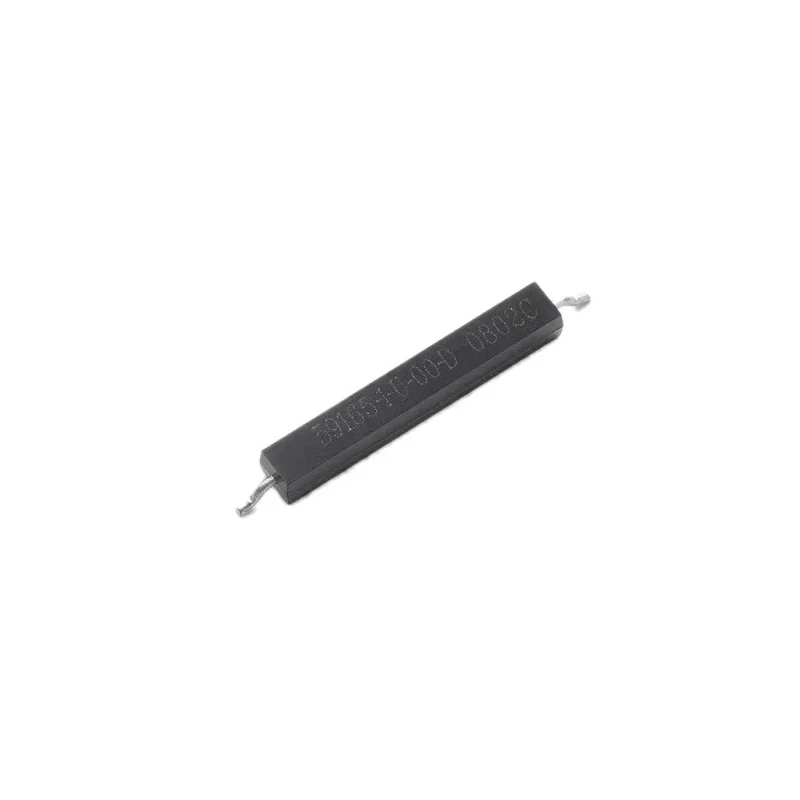

Littelfuse 59165-1-S-00-D miniature PCB reed switch offers reliable magnetic switching performance with a maximum switching current of 500 mA and voltage rating of 200 V. This low power switch is designed with an over-moulded thermoset material sealed hermetically to resist contaminants and provide long operational life even in demanding industrial conditions.

The switch utilizes magnetically operated contacts allowing operation through non-ferrous materials such as plastic, wood, and aluminum. Its gull wing PCB mount terminals make it suitable for surface mount assembly using solder reflow processes.

With a contact resistance of 200 milliohms and maximum switching power of 10 W, it supports sensitive switching tasks in automation, security systems, and position or limit detection applications. Its compact dimensions (16 mm length and 2.41 mm width) enable easy integration into densely packed circuits.

The operating temperature range extends from -40°C to +105°C, accommodating diverse environments and thermal conditions. The quick release and operating times (10 ms) ensure fast response suitable for control and detection.

Typical use cases include industrial automation, electrical switching systems, HVAC controls, manufacturing safety interlocks, and commercial electronic devices requiring reliable reed switch operation.

Miniature over-moulded reed switch designed for PCB mounting. Maximum switching current of 500 mA suitable for low power circuits. Supports a maximum switching power of 10 W and voltage up to 200 V. Contact resistance is low at 200 milliohms ensuring efficient signal transfer.

Thermoset over-moulded construction provides durability and solder reflow capability. Operating temperature range from -40°C to 105°C suits harsh environments. Features gull wing terminals for surface mount applications.

Hermetically sealed with magnetically operated contacts resistant to contamination. Typical operating and release times of 10 ms ensure speedy response. Suitable for position sensing, limit switching, door detection, and security system applications.

This reed switch model 59165-1-S-00-D by Littelfuse is a reliable component for integration into various electronic assemblies requiring magnetic switching with high sensitivity and stability.

Explore the full range of Reed Switches and other electrical components on EnvMart to enhance your industrial or commercial electronic projects.
