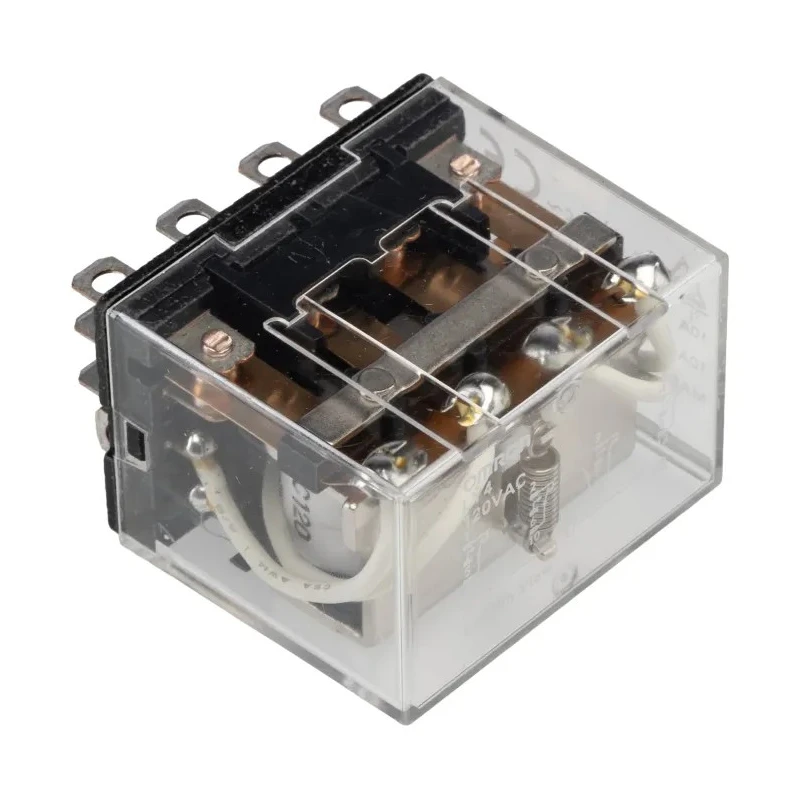

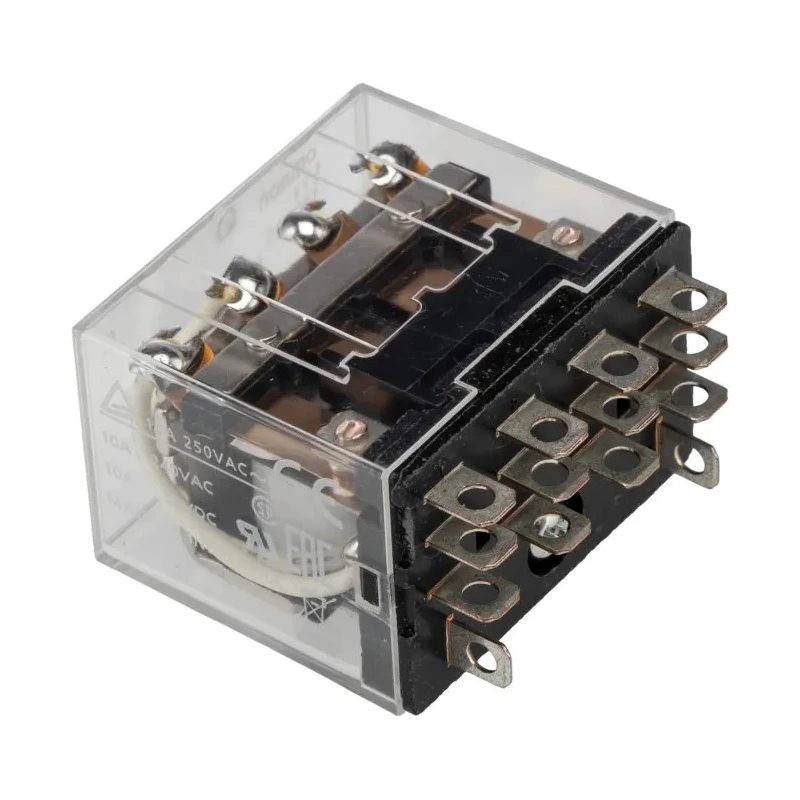

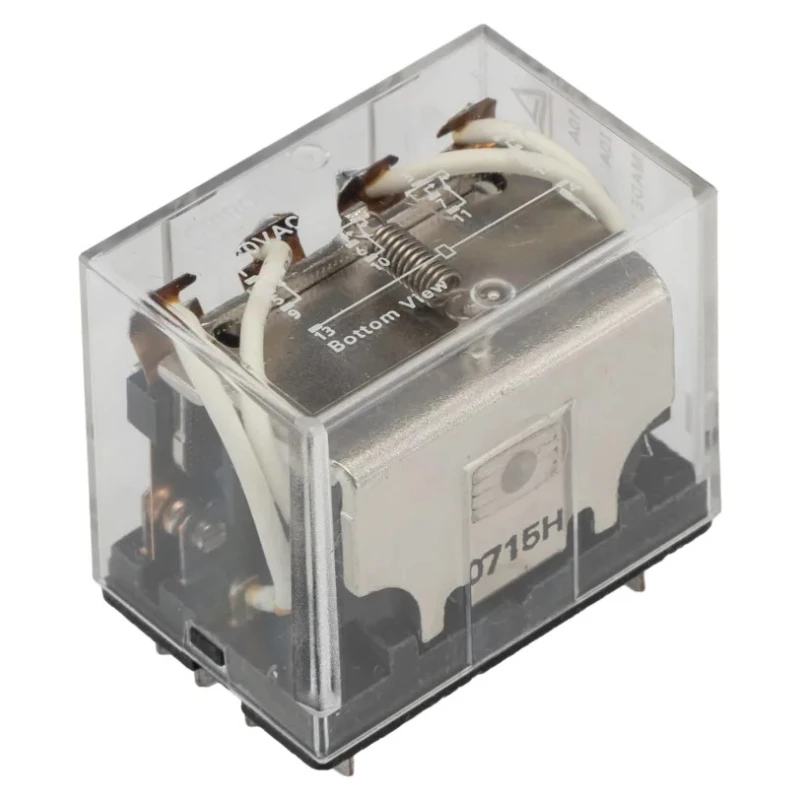

Omron 120V AC Coil Power Relay 10A Switching Current 4PDT PCB Pin Terminal LY4 120VAC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 41.5mm |
| Model | LY4 120VAC |
| Width | 36mm |
| Contact Material | Silver Alloy |
| Series | LY4 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 1.8kΩ |
| Coil Voltage | 120V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 2.5W |
| Switching Power | 1.5W |
Key Features
- Designed for use with a coil voltage of 120V AC.
- Incorporates a 4PDT (four-pole double-throw) contact configuration for versatile switching.
- Supports a maximum switching current of 10A for efficient control of electrical circuits.
- Utilizes PCB pin terminals for easy installation and integration into circuit boards.
- Operates reliably across a temperature range of -25°C to +55°C.
- Constructed with silver alloy contacts ensuring durability and low contact resistance of 50mΩ.
- Rated switching AC voltage of 125V and switching DC voltage of 125V for various applications.
- Robust coil resistance of 1.8kΩ with coil power consumption of 2.5W.
Product Description
Omron LY4 120VAC Power Relay is a high-performance electrical component designed for industrial and commercial automation applications. Featuring a 120V AC coil voltage and a contact configuration of 4PDT, this relay supports a switching current of 10A, making it suitable for controlling a wide range of electrical loads reliably and efficiently.
The device offers a compact form factor with dimensions measuring 41.5mm in length, 36mm in width, and 28mm in height. Its PCB pin terminal type facilitates seamless integration into printed circuit boards and control systems, reducing installation complexity in industrial setups.
Designed to operate across a broad temperature range from -25°C to +55°C, the Omron LY4 power relay ensures consistent operation under varying environmental conditions. The relay features silver alloy contact material with a low contact resistance of 50mΩ, supporting durability and effective current conduction.
This relay provides a rated switching AC voltage of 125V and switching DC voltage of 125V, capable of managing resistive and inductive loads including motors and lighting systems. Coil resistance stands at 1.8kΩ with a coil power consumption of 2.5W, balancing energy efficiency with reliable switching performance.
Designed for coil voltage of 120V AC with a 4PDT contact configuration. Capable of switching currents up to 10A and voltages up to 125V AC and DC. Compact size optimized for PCB integration. Wide operating temperature range from -25°C to +55°C.
Silver alloy contacts ensuring durability and low resistance. Ideal for control panels, automation systems, HVAC, lighting, and fan switching.
This relay meets UL and CSA standards ensuring compliance with safety and quality benchmarks. It is widely used in industrial control panels, automation systems, HVAC power management, and commercial electrical switching applications.
EnvMart customers seeking reliable Power Relay solutions for automation and electrical control can consider the Omron LY4 120VAC as a versatile and robust component for their projects and equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 120V AC.
It supports a maximum switching current of 10A.
This relay features a 4PDT (four-pole double-throw) contact configuration.
The relay measures 41.5mm in length, 36mm in width, and 28mm in height.
It utilizes PCB pin terminals for easy installation and integration into circuit boards.
The relay operates reliably across a temperature range of -25°C to +55°C.
The contacts are made of silver alloy, ensuring low contact resistance of 50mΩ.
It has a rated switching AC voltage of 125V and a switching DC voltage of 125V.
The coil resistance is 1.8kΩ with a coil power consumption of 2.5W.
It meets UL and CSA standards, ensuring compliance with safety and quality benchmarks.
This relay is suitable for control panels, automation systems, HVAC, lighting, and fan switching applications.
The maximum switching power is rated at 1.5W.
