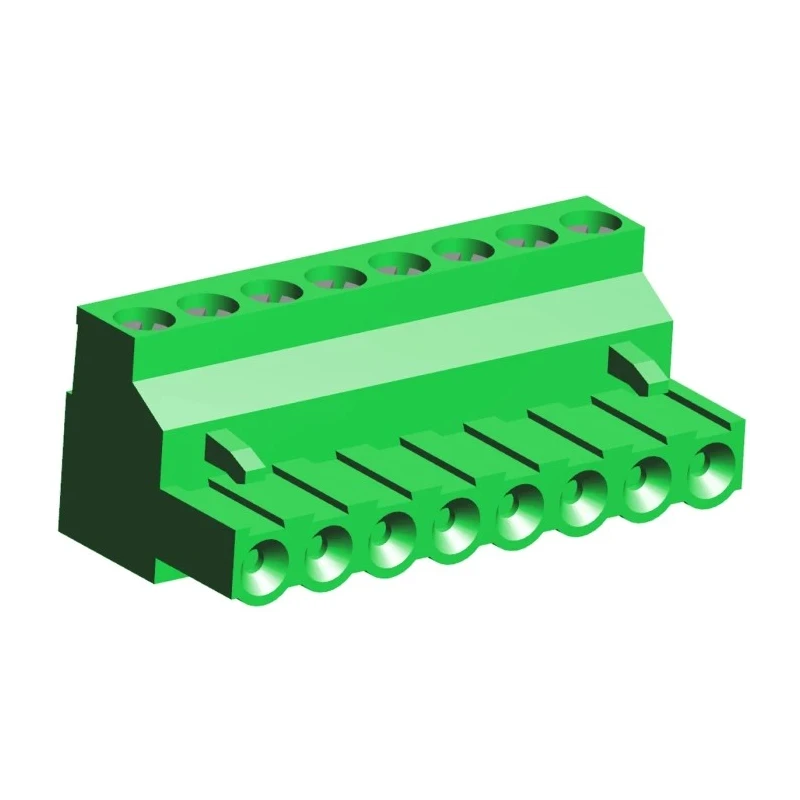

TE Connectivity Buchanan Series Pluggable Terminal Block, 8-Contact, 5 mm Pitch, 1 Row 796640-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 15A |
| Length | 40mm |
| Model | 796640-8 |
| Depth | 15.5mm |
| Housing Material | Nylon |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | UL 94 V-0 |
| Number of Contacts | 8 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Screw |
Key Features
- Supports 8-contact connections for versatile wiring needs.
- 5 mm pitch ensures standard spacing for PCB compatibility.
- Constructed with durable green nylon housing.
- Rated for 15 A current and 300 V voltage for safety.
- Features screw wire connection method for secure attachment.
- Accepts wire sizes from 0.05 mm² to 3 mm² (12 AWG to 30 AWG).
- Straight orientation with a length of 40 mm and depth of 15.5 mm.
- Compliance with UL 94 V-0 standards for flame retardancy.
Product Description
TE Connectivity 796640-8 pluggable terminal block is an industrial-grade connector designed for precise and secure electrical connections in a variety of electronics and power applications. Featuring 8 contacts arranged in a single row with a pitch of 5 mm, this terminal block offers a compact yet efficient solution for wiring on PCBs and control panels.
The terminal block housing is made from robust green nylon (polyamide 6.6 GF), ensuring mechanical stability and resistance to environmental factors. It is designed for a current rating of 15 A and operates safely at voltages up to 300 V. The screw wire connection method facilitates secure and reliable contact with conductors ranging from 0.05 mm² to 3 mm² (equivalent to 12 AWG to 30 AWG wire sizes).
With a length of 40 mm and a depth of 15.5 mm, this straight-oriented terminal block fits well within tight industrial and electronic assembly spaces. The component meets UL 94 V-0 flame retardant standards, ensuring safety compliance in demanding electrical environments.
As a member of the Buchanan series, this plug-in terminal block supports modular connectivity solutions with retention latch and polarization key features, promoting proper alignment and retention during assembly.
Supports 8-contact connections for versatile wiring needs. 5 mm pitch ensures standard spacing for PCB compatibility. Constructed with durable green nylon housing. Rated for 15 A current and 300 V voltage for safety. Features screw wire connection method for secure attachment.
Accepts wire sizes from 0.05 mm² to 3 mm² (12 AWG to 30 AWG). Straight orientation with a length of 40 mm and depth of 15.5 mm. Compliance with UL 94 V-0 standards for flame retardancy. Part of the Buchanan series for modular terminal solutions.
Connector gender is male to fit compatible female terminals.
This TE Connectivity pluggable terminal block is suitable for industrial, manufacturing, electronic, and power distribution applications requiring secure and modular electrical connections. It is ideal for PCB assemblies, control cabinets, instrumentation, and other electrical enclosures.
Explore more TE Connectivity products in the Pluggable Terminal Blocks category at EnvMart to find compatible components and assembly solutions.
Explore more products in our Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 15 A and operates safely at voltages up to 300 V.
It features a 5 mm pitch with 8 contacts arranged in a single row, making it suitable for PCB compatibility.
It accepts wire sizes ranging from 0.05 mm² to 3 mm², which corresponds to 12 AWG to 30 AWG.
The terminal block has a length of 40 mm and a depth of 15.5 mm.
The housing is constructed from durable green nylon (polyamide 6.6 GF).
Yes, it complies with UL 94 V-0 standards for flame retardancy, ensuring safety in electrical applications.
It features a straight orientation, which is beneficial for fitting in tight assembly spaces.
This model is part of the Buchanan series, which supports modular connectivity solutions.
The connector gender is male, designed to fit compatible female terminals.
The terminal block is manufactured in India.
It is suitable for industrial, manufacturing, electronic, and power distribution applications requiring secure electrical connections.
