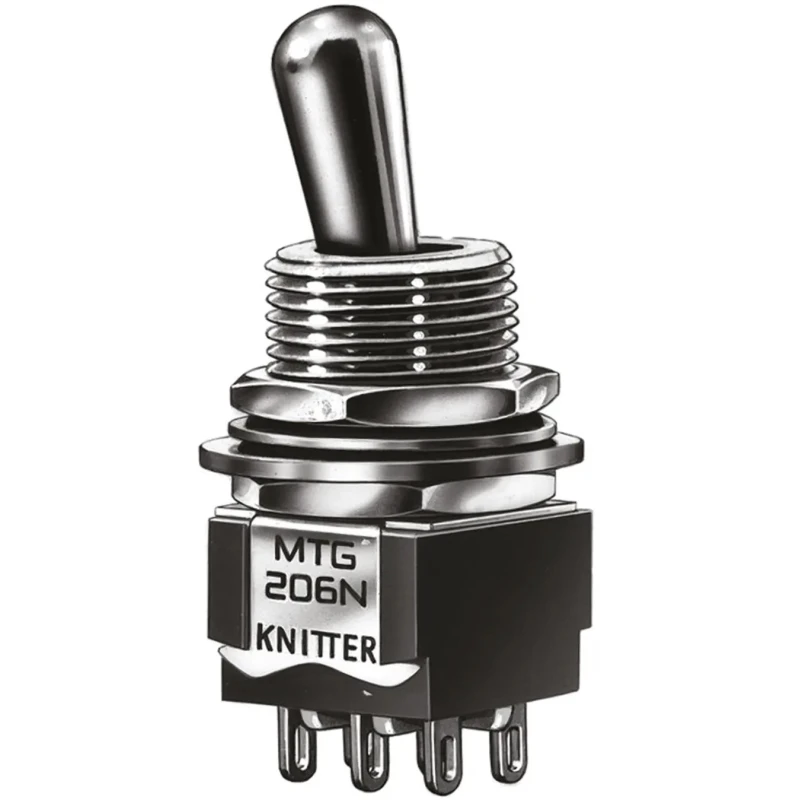

KNITTER-SWITCH Toggle Switch Panel Mount DPDT On-On 4A 30V dc 250V ac MTG 206 N
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 23.4mm |
| Length | 13mm |
| Model | MTG 206 N |
| Width | 13mm |
| Mount Type | Panel |
| Series | MTG |
| Maximum Operating Temperature | 140°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -45°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 11.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 300000Operations |
| Contact AC Voltage | 250V ac |
Key Features
- Panel mount design with 12.5 mm cutout size for easy installation.
- Solder terminal type provides secure and reliable connections.
- On-On switch operation suitable for circuit toggling applications.
- Operates reliably between temperatures -45°C to 140°C.
- Mechanical life rated at 300000 operations for durability.
- Silver contacts ensure low resistance and long life performance.
- Chrome plated brass actuator with UL 94 V-0 rated Diallyl Phthalate case for safety and durability.
- Complies with RoHS standards.
Product Description
KNITTER-SWITCH MTG 206 N toggle switch is a panel mount, double pole double throw (DPDT) type with On-On switch operation, rated for 4 amps contact current at 30 V dc and 250 V ac. Designed for reliable manual control in electrical circuits, it is suitable for use in industrial, automation, electrical, and control panel applications.
The compact switch features a panel cutout size of 12.5 mm and solder terminals to facilitate secure connections. The actuator length is 11.5 mm and the overall switch dimensions are 13 mm length, 13 mm width, and 23.4 mm height, making it ideal for compact panel installations.
Constructed with silver contacts for excellent electrical conductivity and chrome plated brass actuator housed in a UL 94 V-0 rated Diallyl Phthalate case, it ensures long-term durability and safety. This switch operates reliably within a temperature range of -45°C to 140°C and provides a mechanical life of up to 300,000 operations.
It complies with RoHS standards ensuring environmental safety and is manufactured in China. Ideal for use in industrial automation systems, electronic devices, control panels, and various electrical installations requiring reliable switching with DPDT On-On function.
Panel mount design with 12.5 mm cutout size for easy installation. Solder terminal type ensures secure and reliable connections. Silver contacts provide low resistance and long life. Chrome plated brass actuator and UL 94 V-0 rated case for durability.
Suitable for industrial and electrical control panel applications. Operates between -45°C and 140°C temperatures. Mechanical life rating of 300,000 operations for extended use. Compliance with RoHS environmental standards.
Explore more Toggle Switches and electrical control components in the Electronics & Electricals category of EnvMart for all your automation and panel mounting requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 4A.
This switch is rated for 30V DC and 250V AC.
It operates reliably between -45°C and 140°C.
The overall dimensions are 13 mm in length, 13 mm in width, and 23.4 mm in height.
It features solder terminals for secure connections.
The mechanical life is rated for up to 300,000 operations.
The panel cutout size required for installation is 12.5 mm.
This model has a double pole double throw (DPDT) contact configuration.
It features silver contacts and a chrome plated brass actuator housed in a UL 94 V-0 rated Diallyl Phthalate case.
Yes, it complies with RoHS standards for environmental safety.
It is suitable for use in industrial automation systems, electronic devices, control panels, and various electrical installations.
The actuator length is 11.5 mm.
